Wiring
FP0
7-12
Matsushita Automation Controls
7.5 Output Wiring

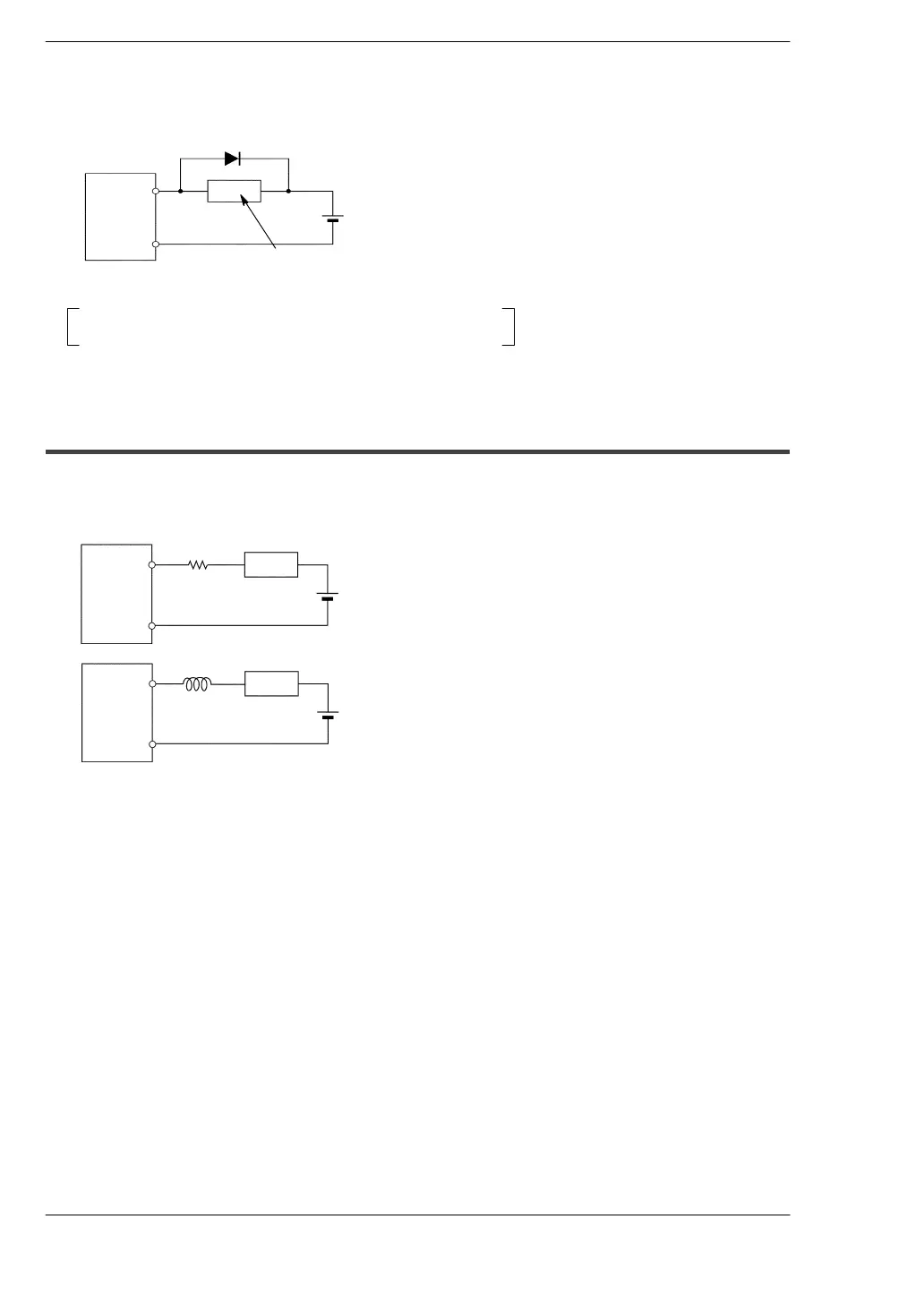

When using a DC inductive load
FP0
DC inductive load
Reverse voltage (V
R
): 3 times the load voltage
Average rectified forward current (I
0
): Load current or more
(
*
) Diode:
COM
Output
terminal
Diode (
*
)
7.5.2 Precautions for Using Capacitive Loads
When connecting loads with large in-rush currents, to minimize their effect, connect a
protection circuit as shown below.
Inductor
FP0
FP0
COM
Output
terminal
Resistor
COM
Output
terminal
Load
Load
