A.1 Control Unit and Expansion I/O Unit
A.1 Control Unit and Expansion I/O Unit

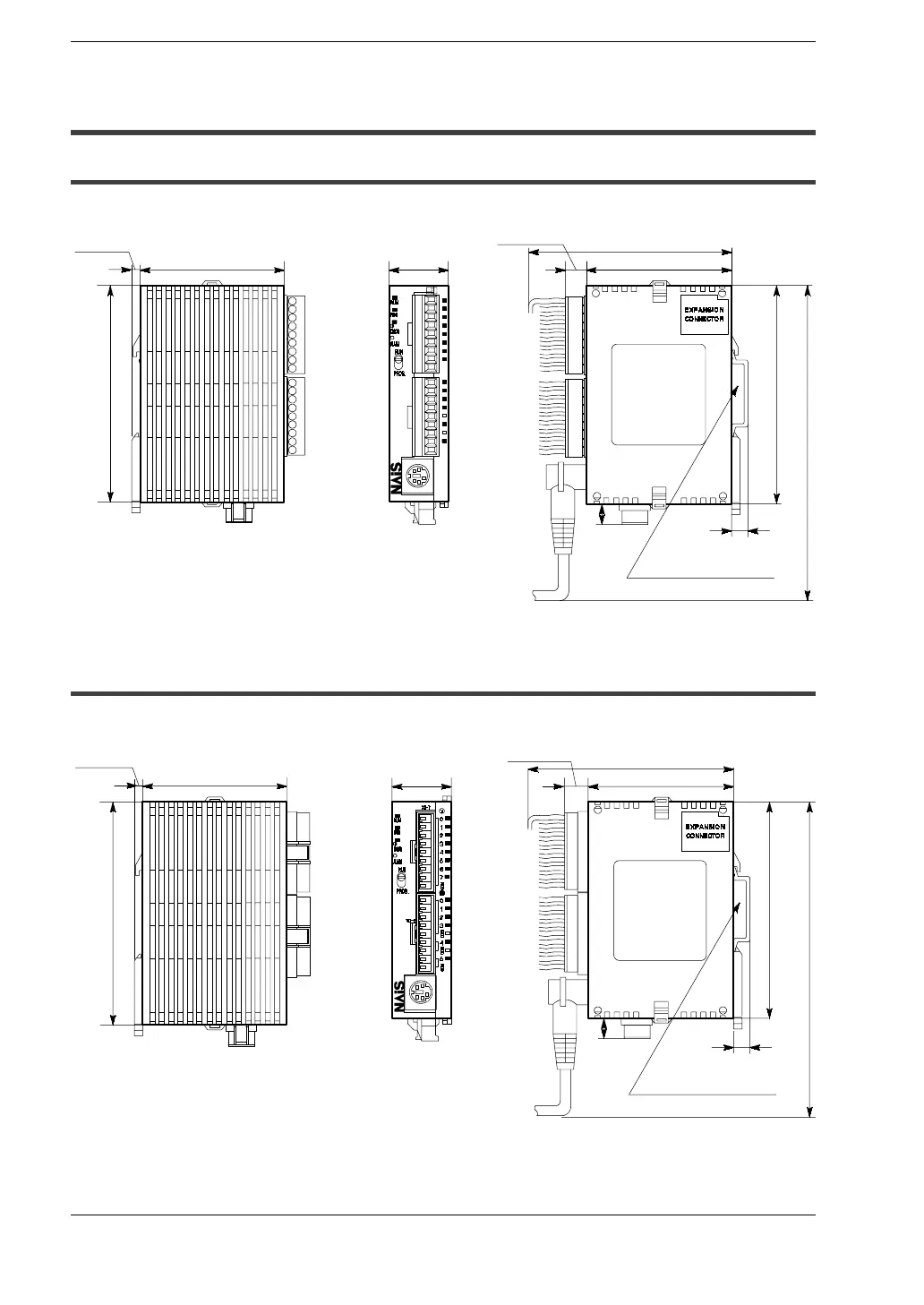

A.1.1 FP0-C10RS/C10CRS/C14RS/C14CRS/E8RS/E16RS
Illustration: FP0-C14RS
60.0/2.362
90.0/3.543
25.0/0.984
Reference measurements for wiring
Approx. 100.0/3.937
60.0/2.362
90.0/3.543
Approx. 130.0/5.118
(7.5/0.295)
DIN rail
(DIN EN50022, 35/1.378) attachment gap
(8.5/0.335)
(9/0.354)
(unit: mm/in.)
3.5/0.138
A.1.2 FP0-C10RM/C10CRM/C14RM/C14CRM/E8RM/E16RM
60.0/2.362
90.0/3.543
Illustration: FP0-C14RM
25.0/0.984
Approx. 100.0/3.937
60.0/2.362
90.0/3.543
Approx. 130.0/5.118
(7.5/0.295)
DIN rail
(DIN EN50022, 35/1.378) attachment gap
(9/0.354)
Reference measurements for wiring
(unit: mm/in.)
3.5/0.138
(10/0.394)
