Wiring

FP0

7-18

Matsushita Automation Controls

7.8 Wiring the MIL Connector Type

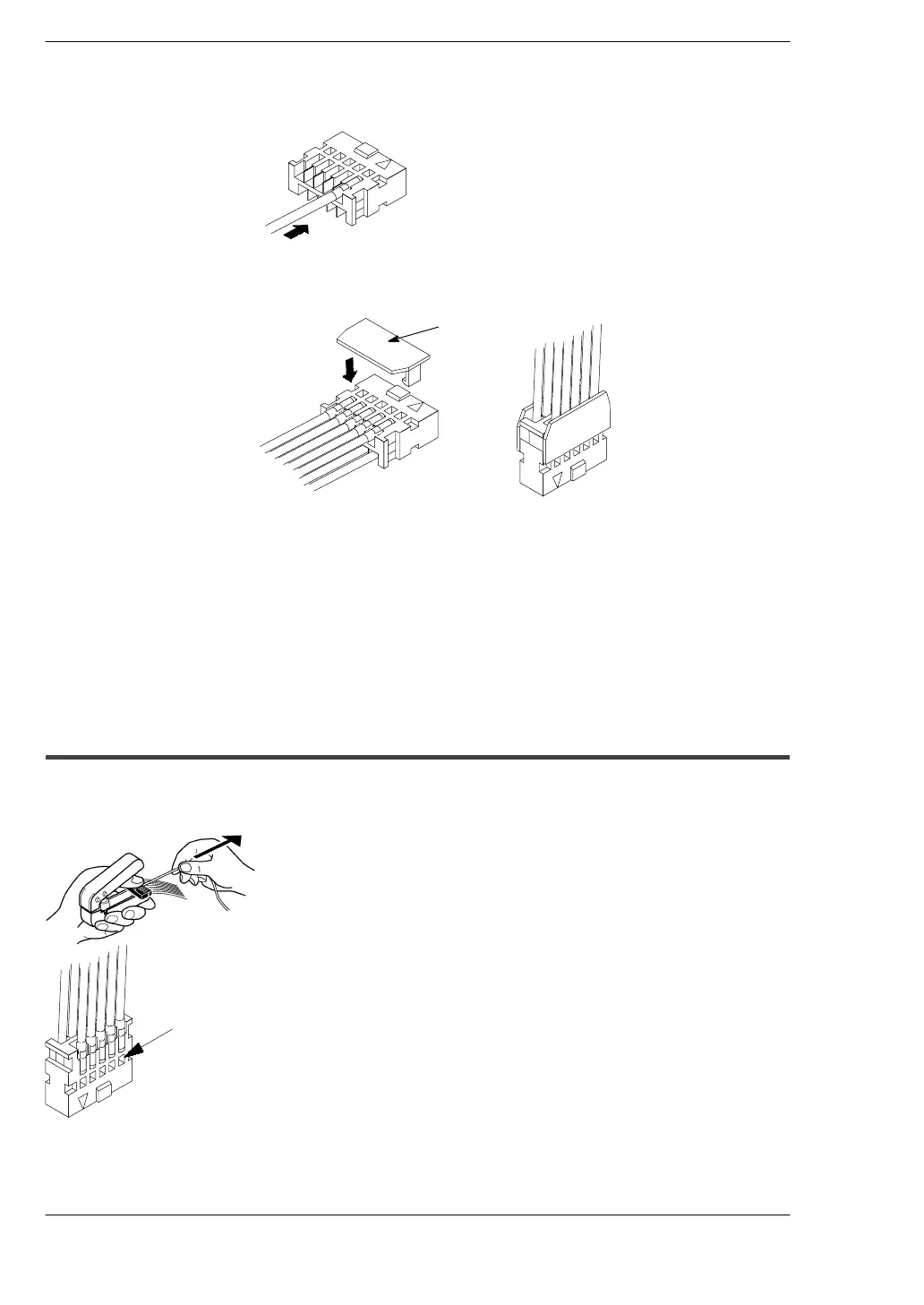

3. After press-fitting the wire, insert it into the housing.

4. When all wires has been inserted, fit the semi-cover

into place.

semi-cover

Note

If using a MIL connector for flat cables, please specify the order

number AXM110915.

7.8.1 Contact Puller Pin for Rewiring

If there is a wiring mistake or the cable is incorrectly pressure-connected, the contact

puller pin provided with the fitting can be used to remove the contact.

Press the housing against the pressure connection tool so that

the contact puller pin comes in contact with this section.
