NAiS FP0 Series User Manual

Expansion I/O Units
FP0
3-9
Matsushita Automation Controls

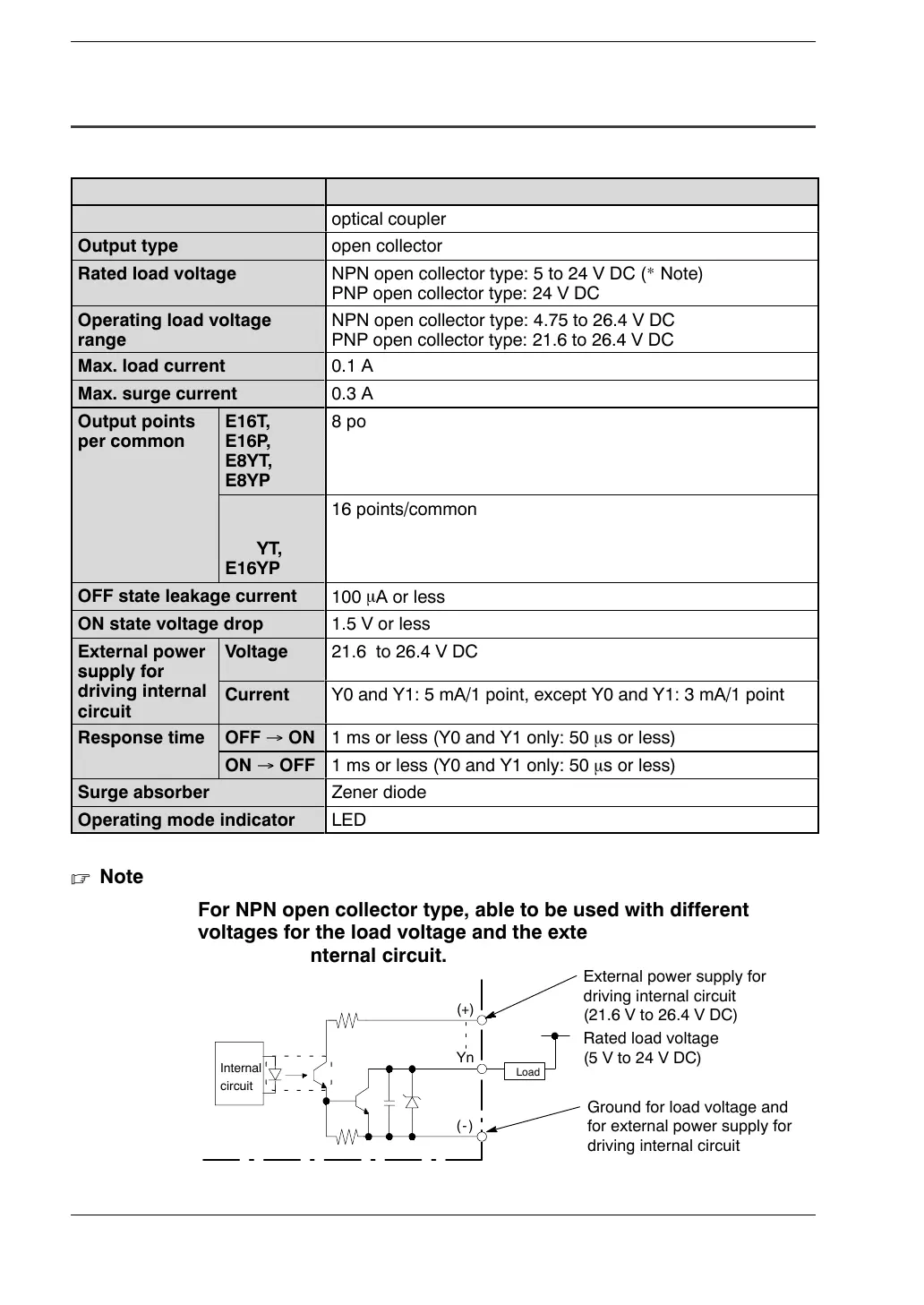

3.2 Specifications
3.2.3.2 Transistor Output Type
FP0 transistor output types: E16T, E16P, E32T, E32P, E8YT, E8YP, E16YT, E16YP
Item Description
Insulation method


optical coupler
Output type





open collector
Rated load voltage





NPN open collector type: 5 to 24 V DC (
*
Note)
PNP open collector type: 24 V DC
Operating load voltage
range





NPN open collector type: 4.75 to 26.4 V DC
PNP open collector type: 21.6 to 26.4 V DC
Max. load current


0.1 A
Max. surge current





0.3 A
Output points
per common
E16T,
E16P,
E8YT,
E8YP











8 points/common
E32T,
E32P,
E16YT,
E16YP











16 points/common
OFF state leakage current





100
μ
A or less
ON state voltage drop


1.5 V or less
External power
su
pp
l
y
for
Voltage





21.6 to 26.4 V DC
supply
for
driving internal
circuit
Current





Y0 and Y1: 5 mA/1 point, except Y0 and Y1: 3 mA/1 point
Response time OFF
o
ON


1 ms or less (Y0 and Y1 only: 50
μ
s or less)
p
ON
o
OFF





1 ms or less (Y0 and Y1 only: 50
μ
s or less)
Surge absorber


Zener diode
Operating mode indicator


LED
.
Note
For NPN open collector type, able to be used with different
voltages for the load voltage and the external power supply for
driving the internal circuit.
(+)
(-)
Yn
Load
Internal
circuit
External power supply for
driving internal circuit
(21.6 V to 26.4 V DC)
Rated load voltage
(5 V to 24 V DC)
Ground for load voltage and
for external power supply for
driving internal circuit
