NAiS FP0 Series User Manual

Wiring
FP0
7-20
Matsushita Automation Controls
7.9 Wiring the RS232C Port
When tightening the RS232C port, use a screwdriver (Phoenix Contact Co., Product no.
1205037) with a blade size of 0.4 × 2.5. The tightening torque should be 0.22 to 0.25
N⋅m (2.3 to 2.5 kgf⋅cm) or less.

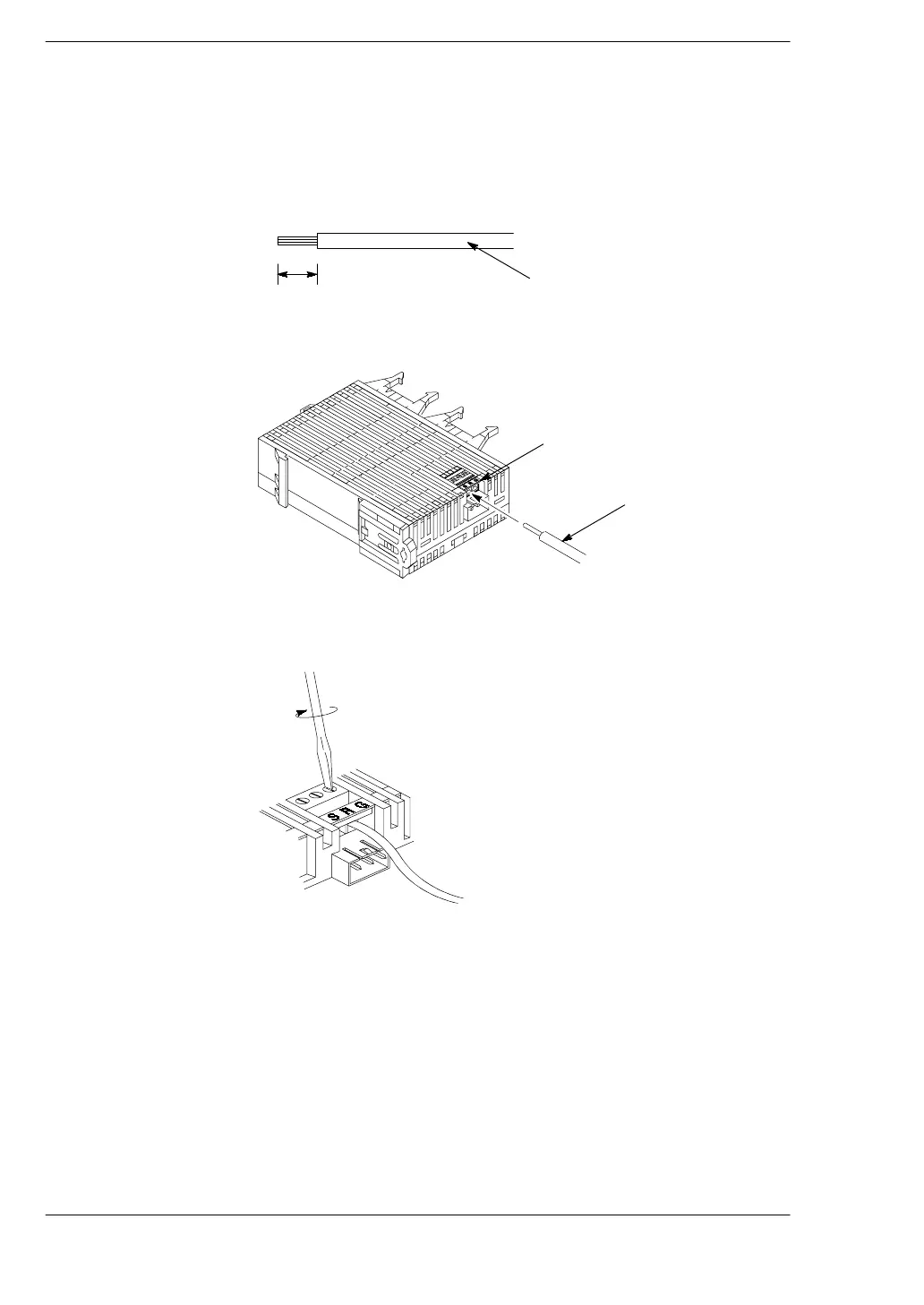

Procedure:
1. Remove a portion of the wire’s insulation.
7 mm/0.276 in.
Suitable wire
2. Insert wire into the RS232C port until it contacts the
back of the RS232C port.
RS232C port
Suitable wire
3. Tighten the screw clockwise to fix the wire in place.
Clockwise
