5. ADJUSTMENTS
5-l Power on
When installation is complete, connect the power cord to an AC outlet and turn
the power on. The Power on/off Switch is located on the lower right side of the
back of the cabinet.
5-2 Adjustment switches on the Service Panel
The Service Panel is located behind the coin door. It has
connols
for adjustment
of the speaker volume, and switches for accessing the test modes.
LOUDER
LOUDER
AUDIO
VOLUME
AUDIO
VOLUME
CONrROL
(L)
CONTROL(R)
TEST
ON
SWITCH
OFF

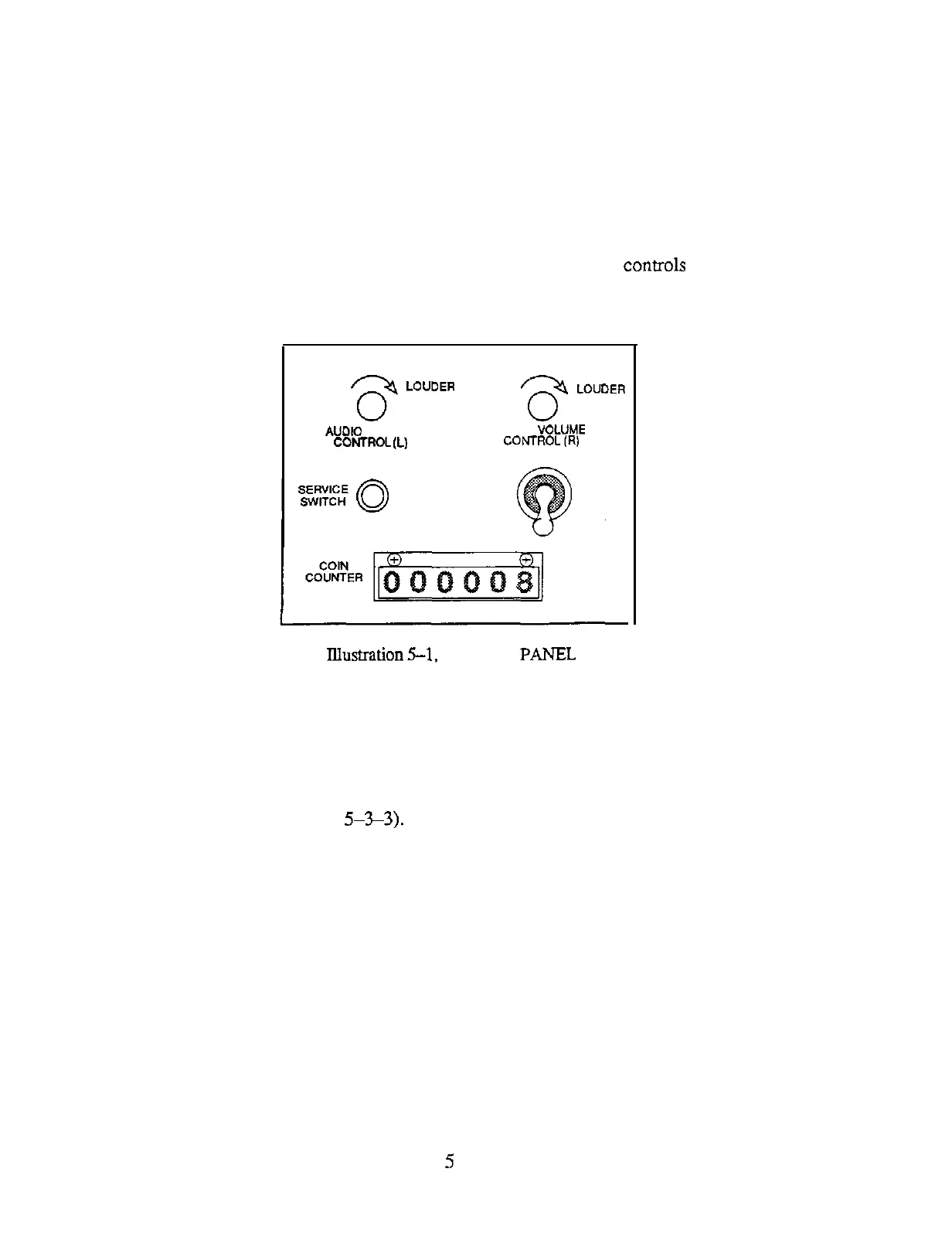

Ilhmration
5-l.
SERVICE
PANEL
1. Test Switch
Turning this switch “ON” enters the Test Mode, and activates the Game
Option Screen on the monitor. This is where the self-tests are performed, and
game variables (pricing, level of difficulty, potentiometer adjustment etc.) are
set/changed (Ref.
5%>3).
Turn the test switch to the “OFF” position at any
time to return to the Game Mode.
2. Audio Volume Control
Stereo left and right audio volume adjustment is made separately for left/right
speakers located on the monitor side panels.
3. Service Switch
By pressing this switch, credits can be issued without advancing the coin
counter. This switch is also used to change screens in the Test Mode.
