2.5 Status LED
Condition LED Status (Green) LED Status (Red)
Unit Ready On Off
Unit Reset On On
Unit Booting On On
Unit Standby Off Off
Unit Powered Off Off Off
Paper Low On Off
Paper Out On Slow Blink
Paper Jam On Fast Blink
Black Index Mark Missing On Fast Blink
Temperature Error On Medium Blink
Voltage Error On Slow Blink
Print Head Error On Fast Blink
Cutter Error On Fast Blink
Table 2: LED Information

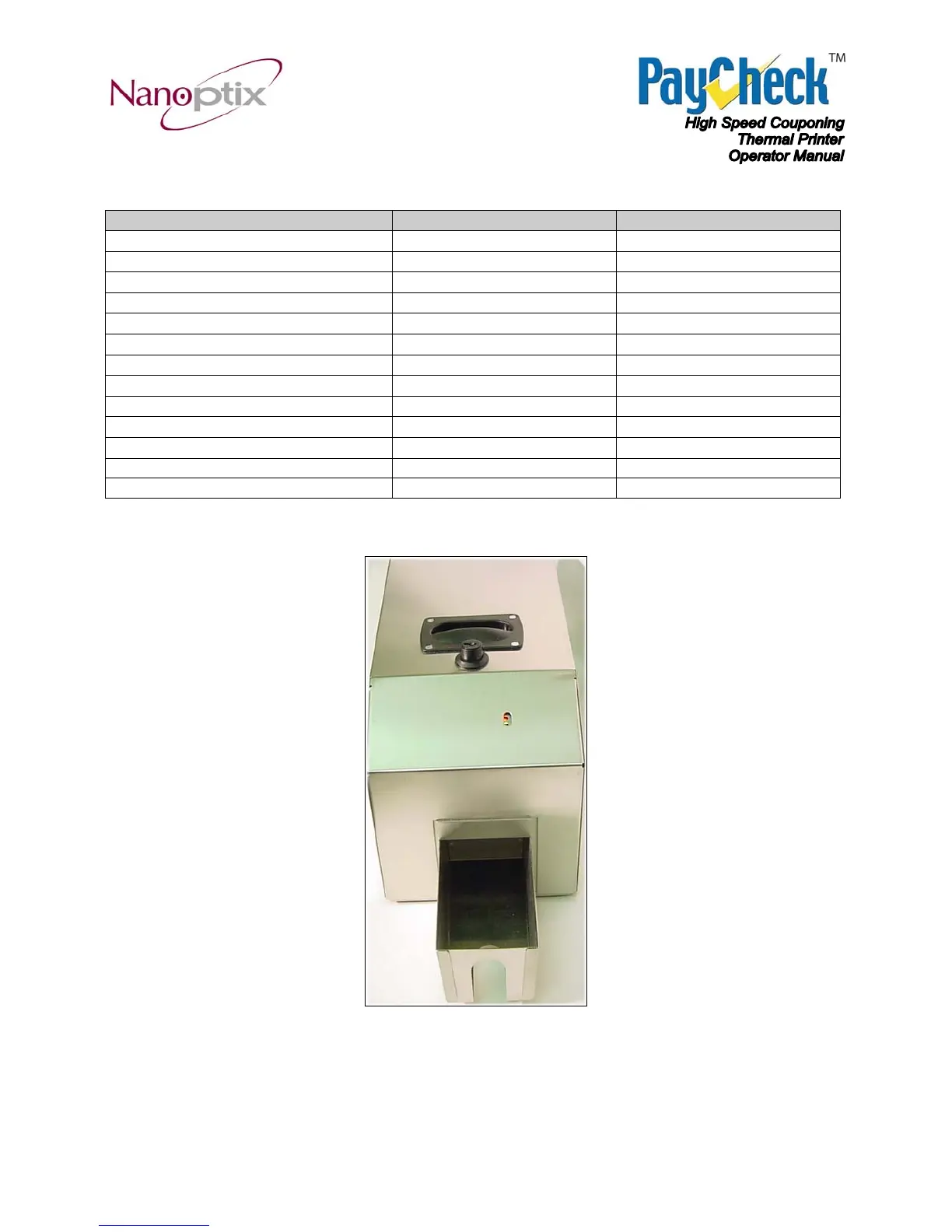

Figure 8: LED Positions - Red on Top, Green on Bottom.
