5
Programming the Panel
Refer to GEM-P800 Programming Instructions (WI851)
Defaulting the Panel
1. Remove power from the panel.
2. Remove all wiring from terminal 15 (PGM)
and terminal 3.
3. Connect terminal 15 (PGM) to terminal 3.
4. Apply power to the GEM-P800 control panel.
5. After a few seconds the ARMED, READY
and
H SYSTEM TROUBLE LED's will flash.
6. The keypad will beep 3 times indicating the
panel default values have been loaded.
7. Remove wiring between terminal 15 (PGM)
and terminal 3.
8. Re-install original wiring for terminal 15
(PGM) and terminal 3.
Keypad Programming
Refer to WI851 for information on keypad pro-
gramming.
Downloading
The GEM-P800 panel can be download/
uploaded with PCD3000 software using the Ring
Method, Answering Machine Override (Second
Call) or
A6 Method of downloading.
The panel can also be automatically
downloaded/uploaded using PCD2000 Software
running
PCPreset. For Site Initiated Downloaded, see
Auto Download ID Number [93].
Local Downloading

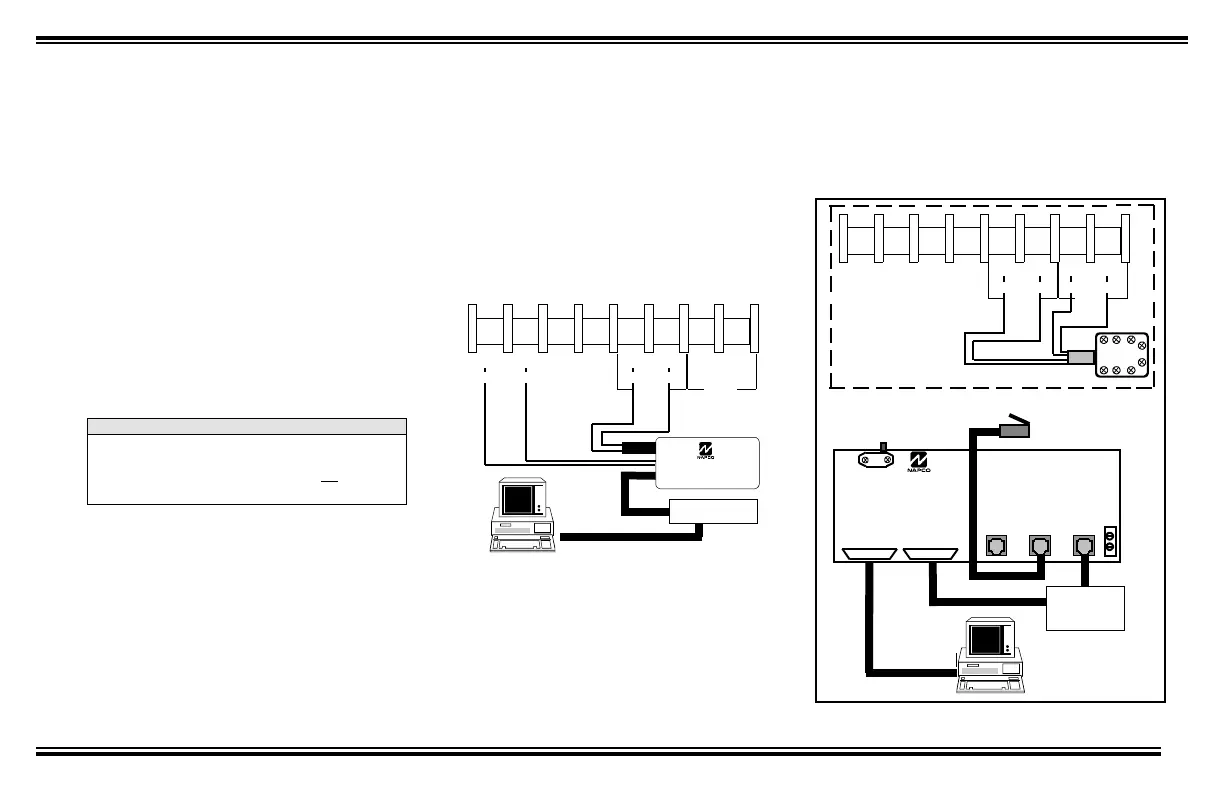

Wire as shown in Figure 1. Use the power up or
A6 method of establishing a connection. The
power up method is recommended if the panel is at-
tempting to report.
Remote Downloading
Wire as shown in Figure 2. The panel can be
remotely download/uploaded using any one of
the following methods:
1. The
A6 method
2. Call-in method
3. Answering Machine Override (Second
Call)
4. Site-Initiated (PCPreset &
A6)
5. Automatic Downloading (Using PCPreset)
MODEM
J1
TO COMPUTER
J3
LOCAL
TO
PCI2000
J2
TO EXTERNAL
MODEM
J4
TELCO
J5 LINE
OUT TO
TELCO
FIGURE 2 REMOTE DOWNLOAD
PGM
(-)
+12
-13 14 15
16 17 18 19
+PWR GND GREEN
PHONE TELCO
GREEN
RED
GEM-P800 Panel at the site
RING TIP RING
RJ31X
TIP
GRY
BRN
PGM
(-)
+12
-13 14 15
16 17 18 19
GREEN TIP RING
PHONE
PCL2000A
GREEN
RED
MODEM
FIGURE 1 LOCAL DOWNLOAD
TIP RING
TELCO
GND +PWR
BLACK RED
NOTE:
Any programming in Dealer Options 1 [96] and Dealer
Options 2 [97] will not be defaulted. If Dealer Code Lock-
out has been programmed the panel will not default the
Dealer Code.
