X GEM-P3200 Installation Instructions
L NAPCO Security Systems
WI817F 10/05
Page 18

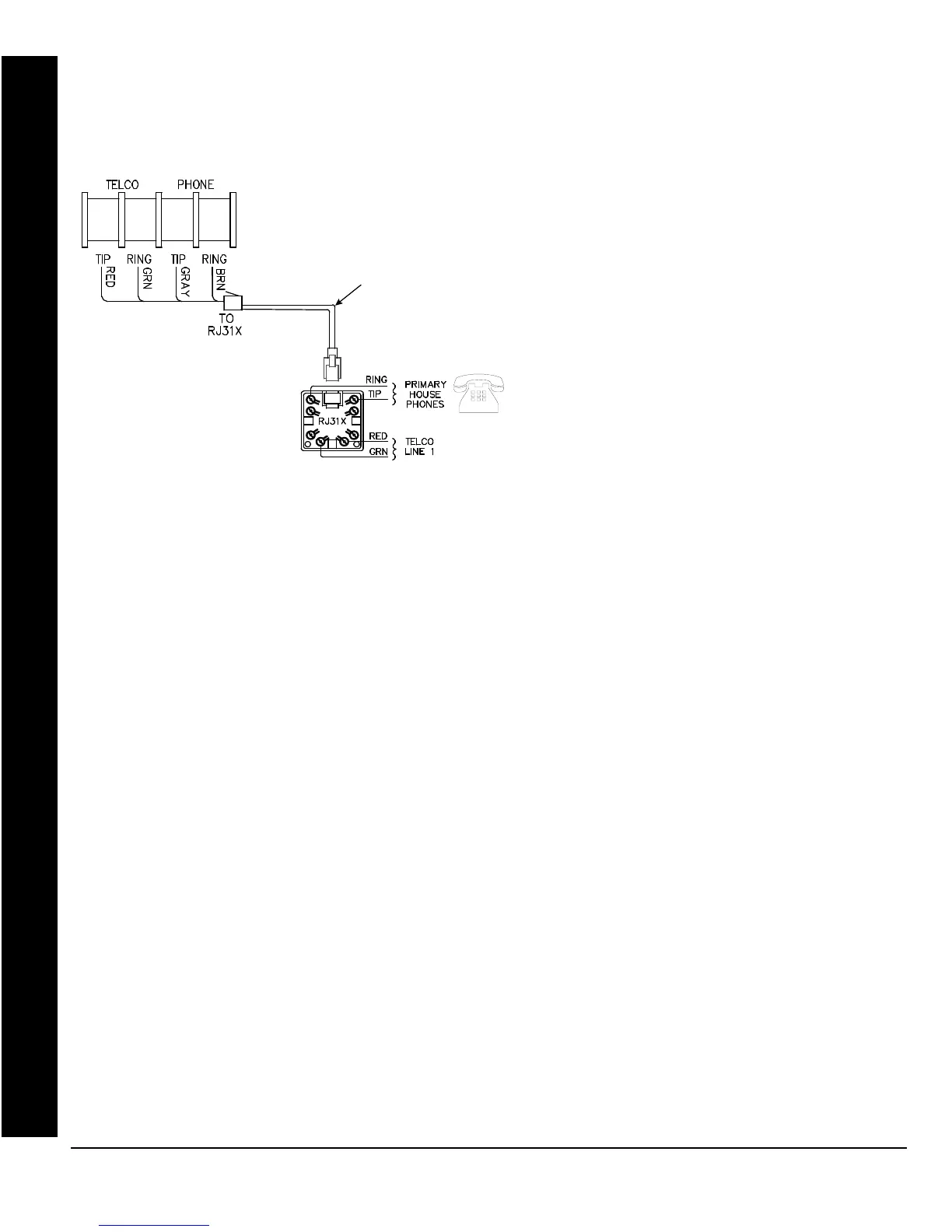

Connect the Model 368 Cord as follows: 30 (RED = Telco Tip), 31 (GREEN = Telco Ring), 32 (GRAY = Home Tip)
and 33 (BROWN = Home Ring). Insert the modular plug into an approved USOCRJ31X jack (or a CA31A jack for
Canadian installations). The Telco Line is used by the control panel to dial the central station and for downloading.
This line should not be connected to party lines or coin operated telephones. If connected to a line with call waiting,
then call waiting interrupt numbers must be programmed into the CS Telephone Numbers (refer to the GEM-P3200
Programming Instructions).
Model 368 Cord
TELEPHONE LINES
30 31 32 33
WIRING CONNECTIONS
