3.3 SPECIAL VENT INSTALLATIONS
3.3.1 PERISCOPE TERMINATION
12" (305MM)
MINIMUM
TO GRADE
30" (762MM)
MINIMUM

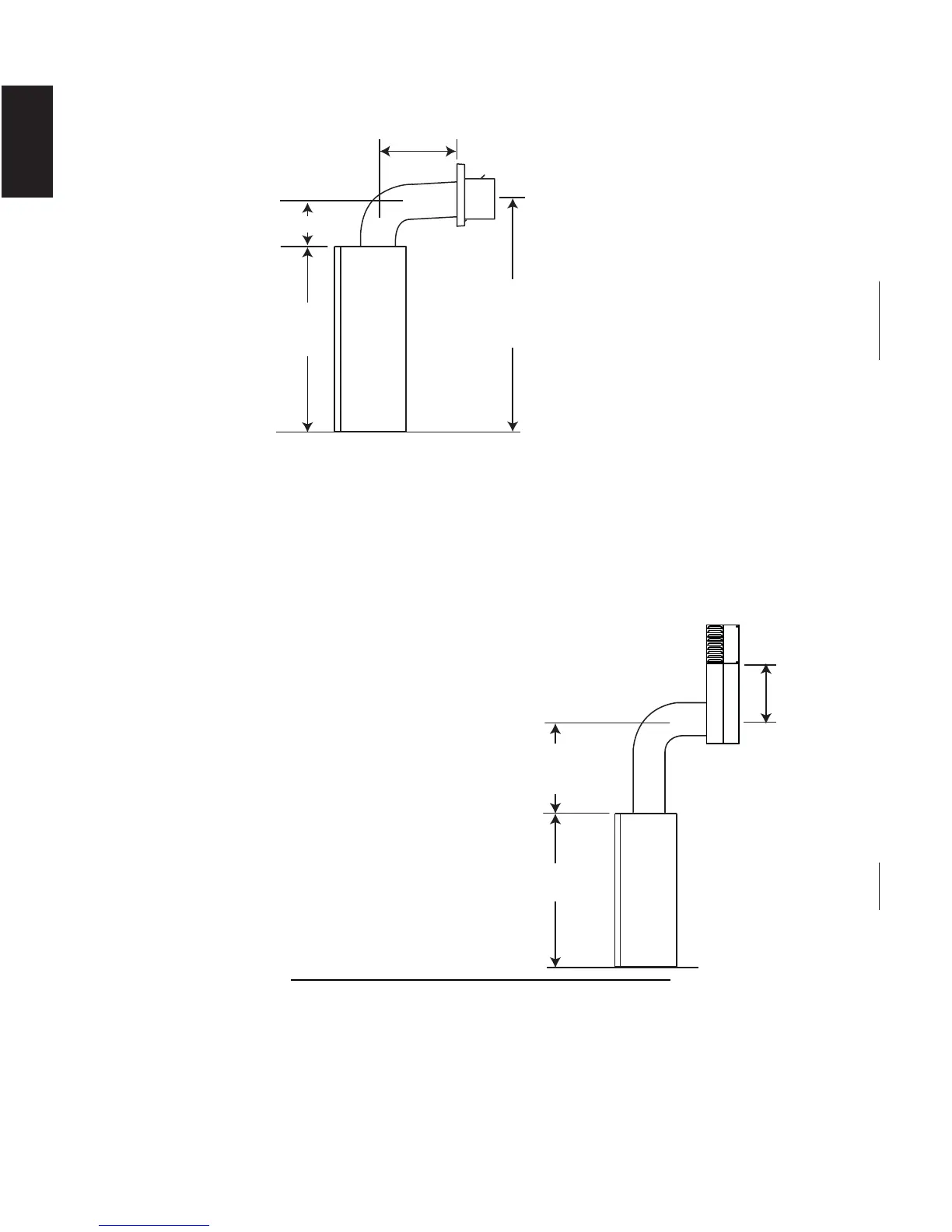

Use the periscope kit to locate the air termination above grade. The periscope must
be installed so that when fi nal grading is completed, the bottom air slot is located a
minimum 12” (305m) above grade. The maximum allowable vent length is 10’ (3m)
for a fi replace and 8’ (2m) for a stove.
9.1B
34 1/16
(865MM)
8" (203MM)
MINIMUM
34 1/16"
(865MM)
42 1/16"
(1068MM)
MINIMUM
PLUS RISE*
24" (610MM)
MAXIMUM
* See "VENTING" section
