Napoleon B35NT - 11 B35 Overview

46
W415-1232 / B / 05.15.14
EN
1
2
5
10
4
3
12
7
9
8
1
2
5
10
4
3
12
7
9
8
ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED
04.02.14 / B
FOR REPLACEMENT PARTS REFER TO:
"VALVE TRAIN ASSEMBLY"
SAFETY BARRIER
B35 OVERVIEW

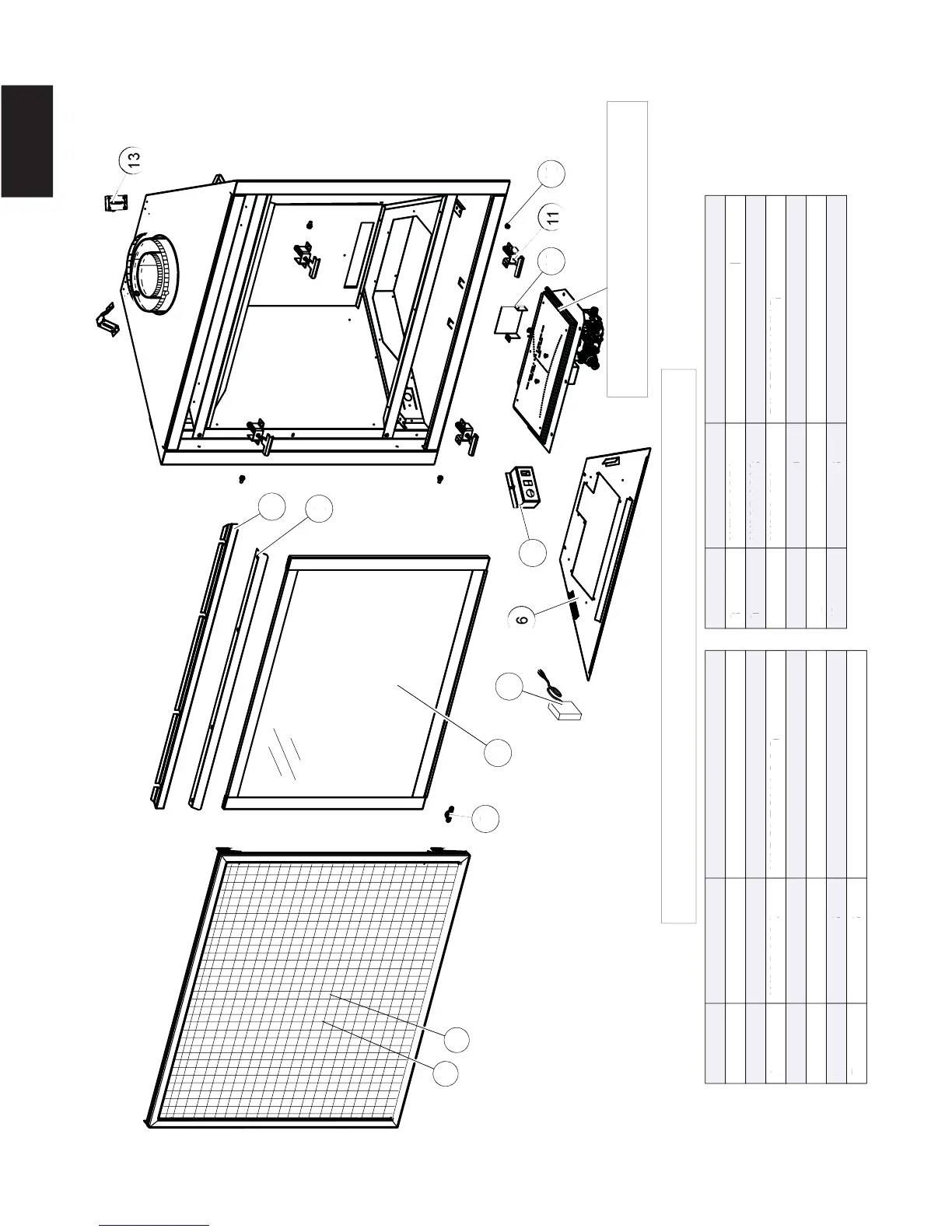

REF. NO. PART NUMBER DESCRIPTION 1 W565-0143 SAFETY SCREEN 2 W010-3072 SAFETY SCREEN ASSEMBLY 3 W385-0334 NAPOLEON LOGO 4 W010-3068 DOOR ASSEMBLY 5 W350-0342 BATTERY HOUSING 6 W655-0476 LOG SUPPORT 7 W350-0126 ELECTRICAL BOX
REF. NO. PART NUMBER DESCRIPTION 8 W715-0951 TOP FINISHING TRIM 9 W335-0063 HOOD 10 W350-0701 PILOT HOUSING 11 W010-3070 DOOR LATCHES (X4) 12 W570-0135 SHOULDER SCREWS (X4) 13 W635-0078 STAND OFFS (X2)
