Napoleon B35NT - 18 B42 Electronic Valve Train Assembly (W010-3176)

53
W415-1232 / B / 05.15.14
EN
7
13
16 17
11
12
2
10
4
18
1
6
14
8 9
19 15
3 7
13
16 17
11
12
2
10
4
18
1
6
14
8 9
19 15
3
ITEMS MAY NOT APPEAR EXACTLY AS ILLUSTRATED
02.21.14

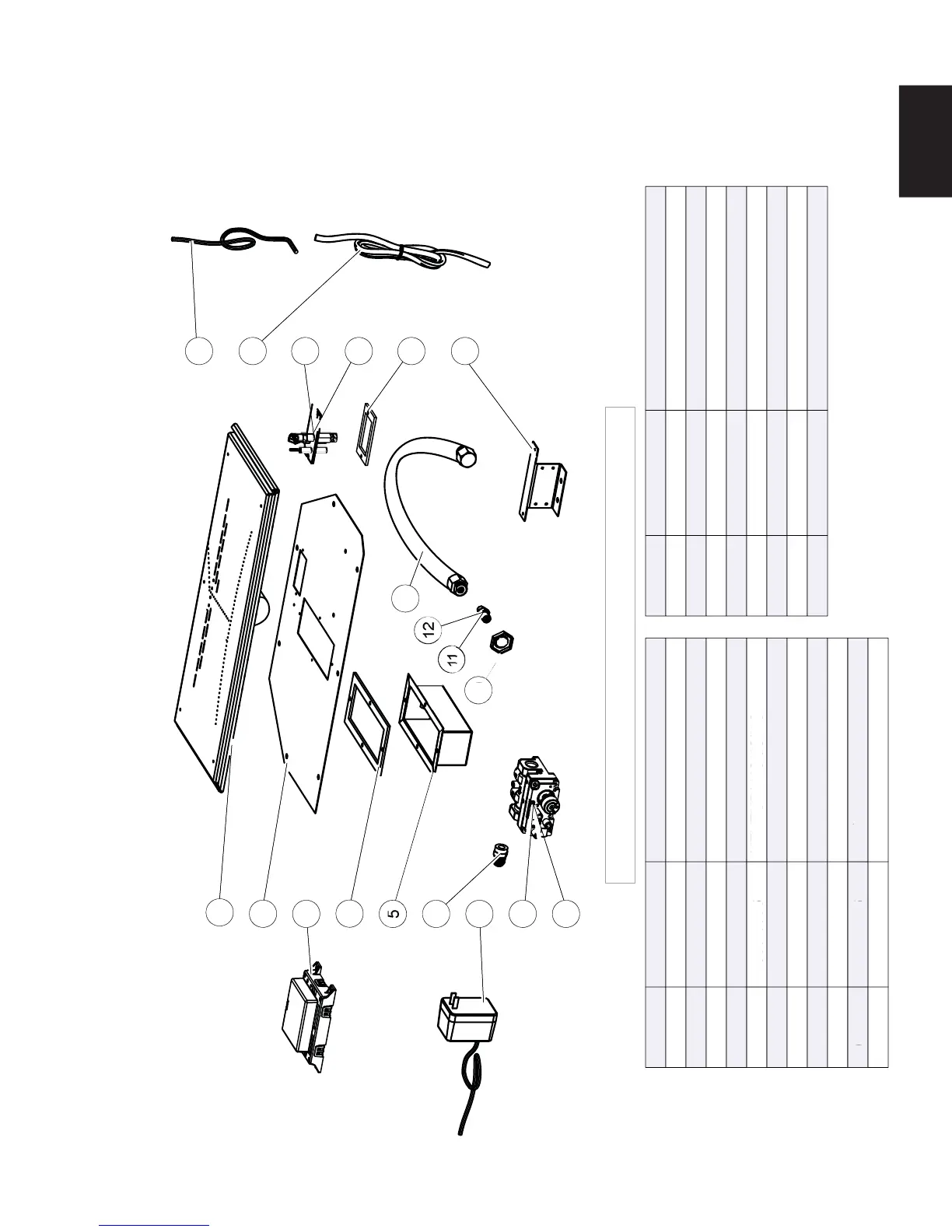

ELECTRONIC VALVE TRAIN ASSEMBLY (W010-3176)
REF. NO. PART NUMBER DESCRIPTION 1 W100-0157 BURNER 2 W035-0326 VALVE TRAIN BASE 3 W190-0022 CONTROL BOARD 4 W290-0235 VENTURI HOUSING GASKET 5 W350-0696 VENTURI HOUSING 6 W445-0021 TUBE/PIPE FITTING 7 W707-0002 TRANSFORMER 8 W725-0070 VALVE (NG) 9 W725-0073 VALVE (LP) 10 W450-0036 NUT 11 W456-0042 BURNER ORIFICE #42 (NG)
REF. NO. PART NUMBER DESCRIPTION 12 W456-0054 BURNER ORIFICE #54 (LP) 13 W432-0078 MANIFOLD FLEX 14 W750-0309 WIRE HARNESS ASSEMBLY 15 W750-0193 THERMOSTAT WIRE 16 W010-3121 PILOT ASSEMBLY (NG) 17 W010-3252 PILOT ASSEMBLY (LP) 18 W290-0029 PILOT GASKET 19 W080-1338 VALVE BRACKET
1
0
1
0
W4
50
-
0036
N
UT
5
W
350
-
0696
VENT
U
RI H
OUS
IN
G
18.0 B42 ELECTRONIC VALVE TRAIN ASSEMBLY (W010-3176)
