21
www.napoleongrills.com
3/8”(10mm)

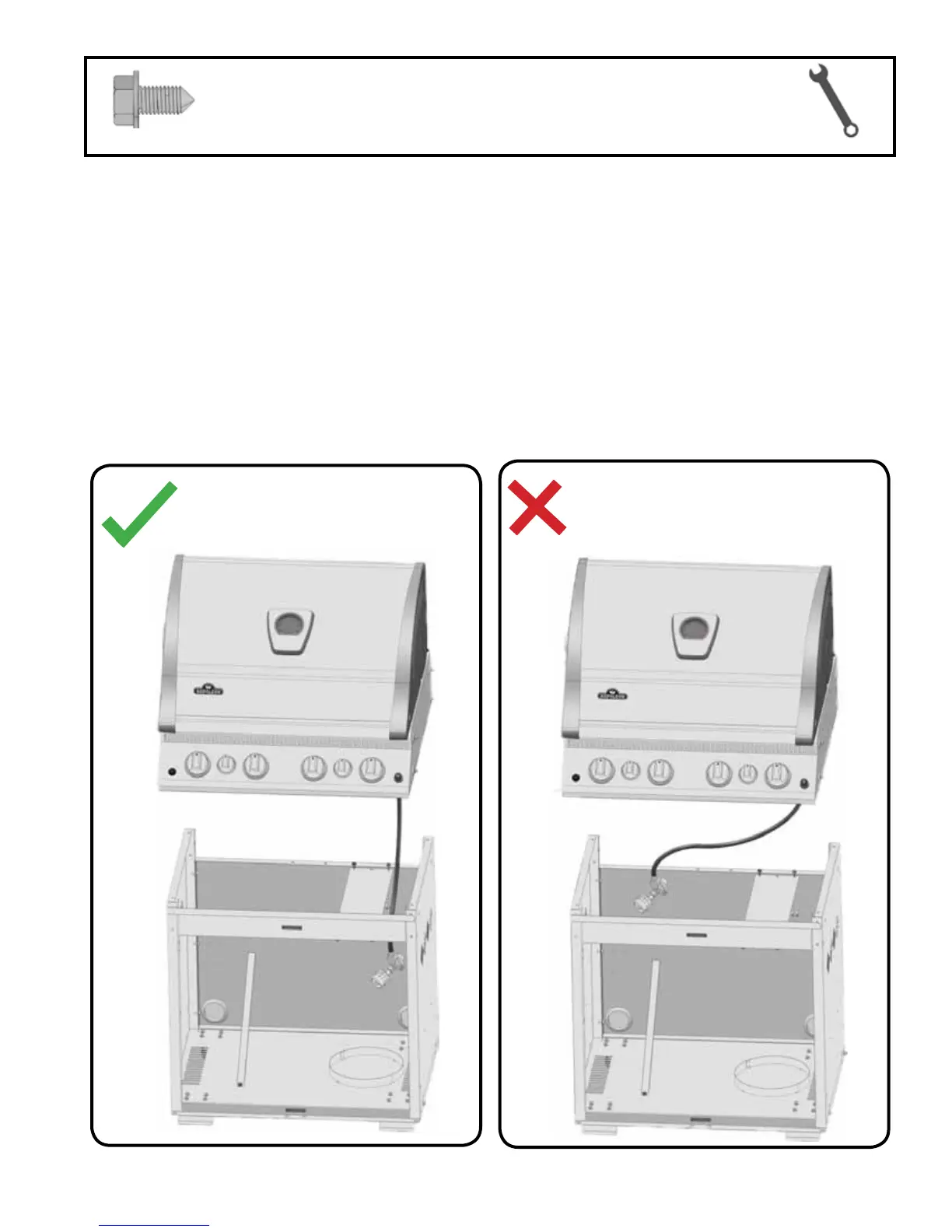

Incorrect Assembly
Correct Assembly
4 x N570-0091 (1/4-20 X 1/2”)
9. Grill Head Installaon
PROPANE ONLY – To avoid assembly dicules, prior to mounng the grill head, remove zip e holding regula
tor up under
control panel. This was installed at the factory to protect the regulator hose during shipping and is no longer required.
(Take care when removing the e not to damage the hose). Ensure the regulator drops into the small opening, between the
tank heat shield and the right side of the cabinet.
Li grill head and place on assembled cart, lining up holes in top of side cart panels with holes in boom of base. Fasten
from inside using (4) 1/4-20 x 1/2” screws, two per side.
Two people are required for this step.
