8 x N570-0076 (#8 X 1/2”)

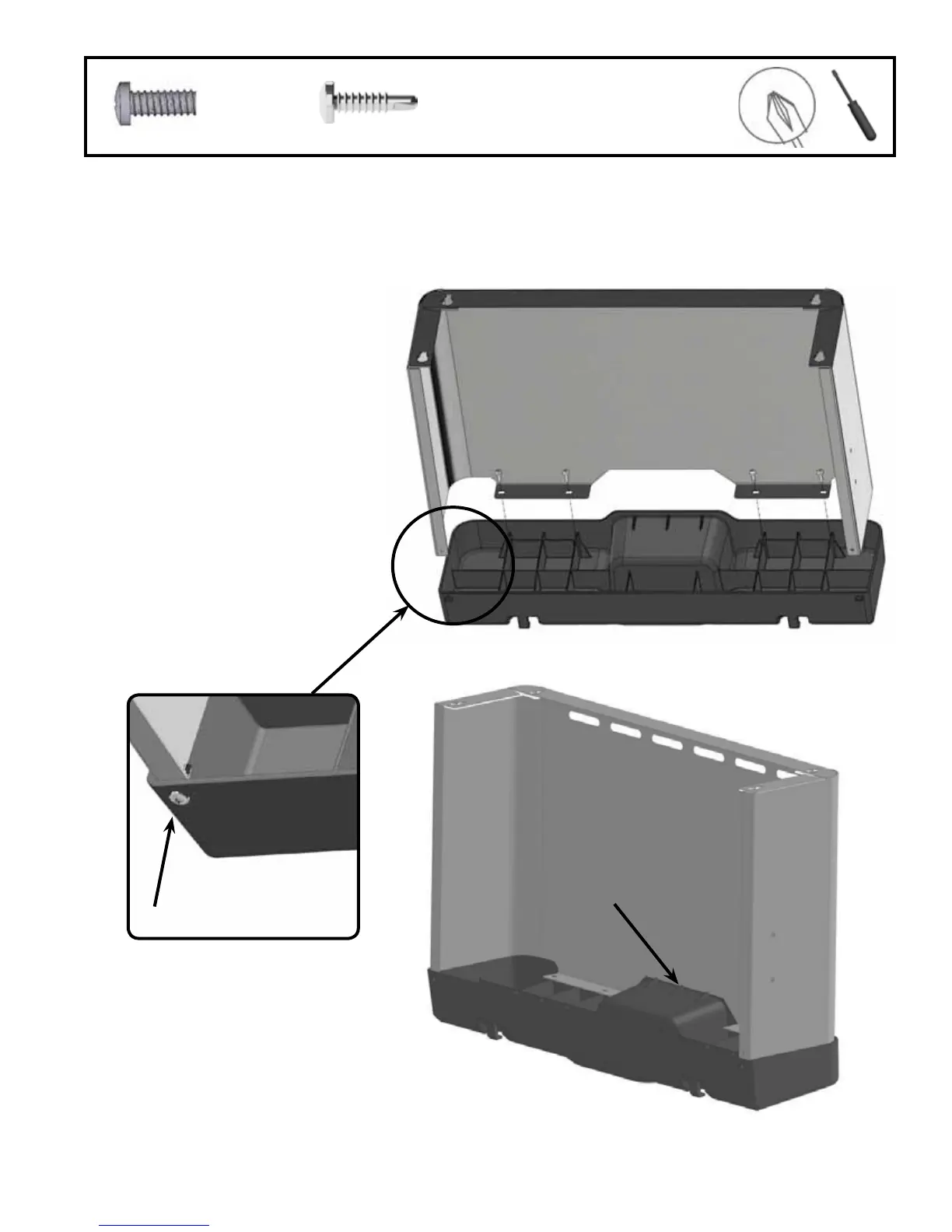

11. Side Shelf Assembly
Peel the protecve coang from the side shelf. Insert the top of the side shelf into the end cap engaging the edge of the
shelf under the ribs in the end cap as illustrated. Push the boom tabs into the end cap and line up holes. Aach the end
cap to the side shelf using (4) #8 x 1/2” screws per shelf. On the underside of the side shelf fasten the end cap using (2) #8 x 5/8”
screws one on either end.
Engage edge of shelf under ribs in end cap
4 x N570-0013 (#8 X 5/8”)
N570-0013 (#8 X 5/8”)
To Next Page
