Napoleon WSX-N Series User Manual

W415-3101 / B / 01.09.23
31
IOM
H3.16
THERE MUST NOT BE ANY OPENINGS BETWEEN THE BLOWER DIVISION PANEL AND THE
COMBUSTION COMPARTMENT. THE BLOWER COMPARTMENT IS UNDER GREATER SUCTION
THAN THE COMBUSTION COMPARTMENT AND CAN PULL COMBUSTION AIR FROM THE
BURNERS AND CAUSE INCOMPLETE COMBUSTION AND ERRATIC FURNACE OPERATION.
WARNING
!
!

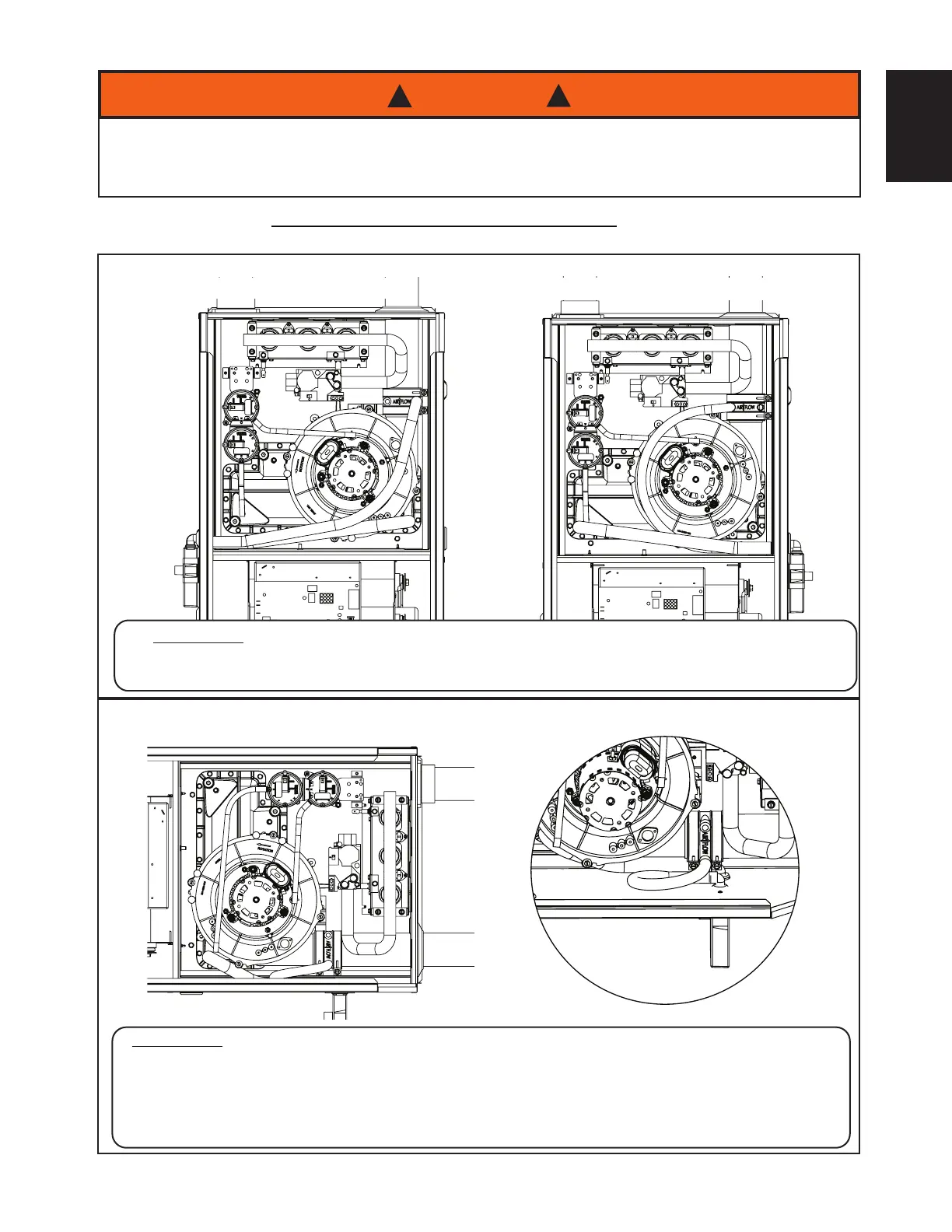

FIGURE 15 - UPFLOW VENT AND DRAINING OPTION
TOP VENT - LEFT DRAIN INSTALLATION TOP VENT - RIGHT DRAIN INSTALLATION
IMPORTANT:
• PRIME CONDENSATE TRAP WITH WATER AND CUT DRAIN HOSES TO PROPER LENGTH.
• CUT PRESSURE SWITCH TUBING TO PROPER LENGTH.
FIGURE 16 - HORIZONTAL RIGHT VENT AND DRAINING OPTION
TOP (PANEL) VENT INSTALLATION
IMPORTANT:
• PRIME CONDENSATE TRAP WITH WATER AND CUT DRAIN HOSES TO PROPER LENGTH.
CUT PRESSURE SWITCH TUBING TO PROPER LENGTH.
• S-BEND DRAIN HOSE AND EXTRA 90º BARBED COUPLING INCLUDED IN FURNACE PARTS
BAGGIE.
