Description 4-3
Otherwise the program EHP50-TS main window will be shown:

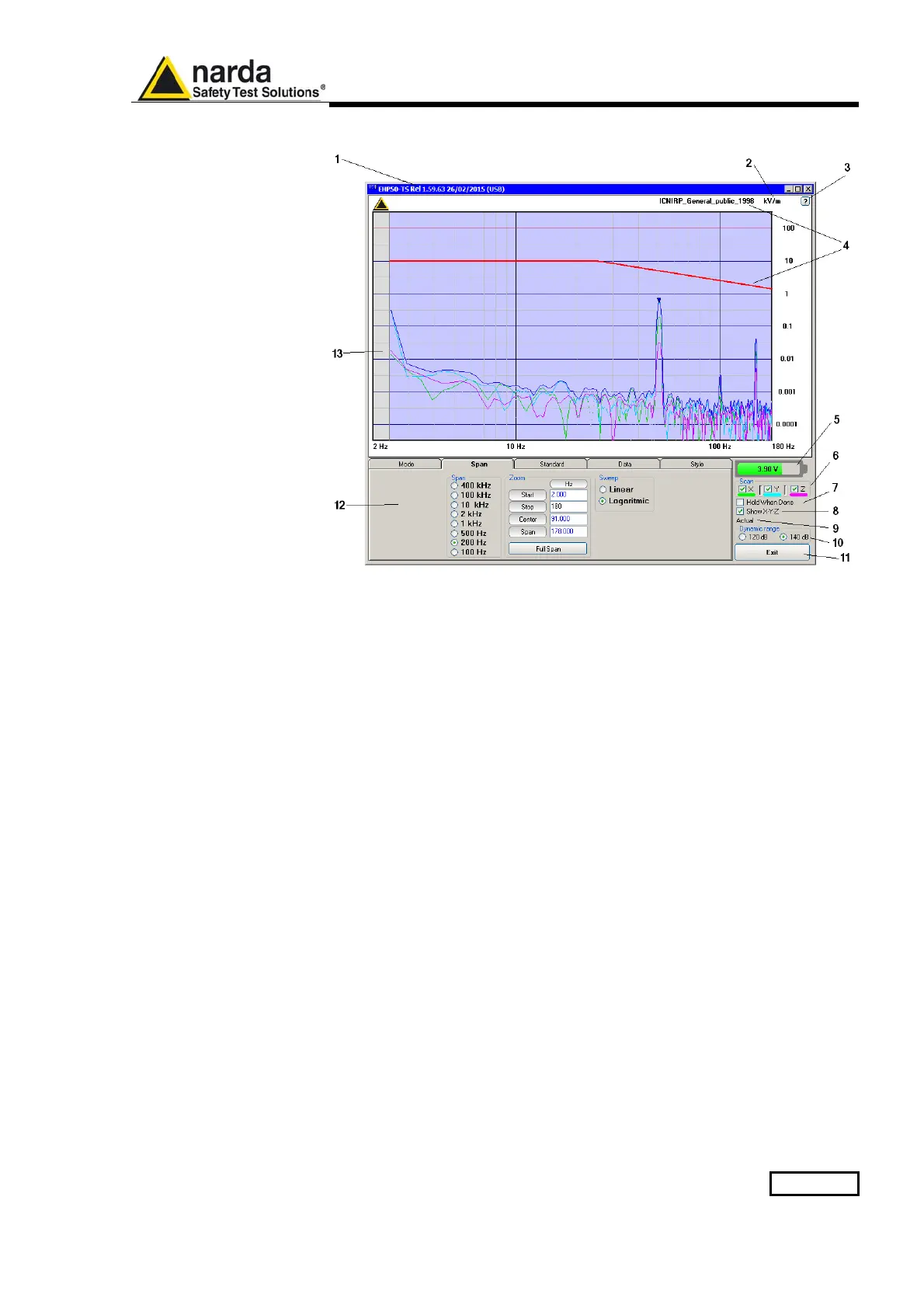

Fig.4-1 EHP50-TS Main Window
Description:
1 - EHP50-TS software release, (communication port)
2 - Shows unit
3 - Click “?” to display EHP-50G analyzer information
4 – Name and trace of selected Limit
5 - EHP-50G analyzer battery status
6 - Scan activation for each axis (default setting: all axis activated)
7 - Hold When Done: stops acquisition to allow data analysis as soon as
all
axis have been measured
8 - Show X-Y-Z: to display or not the traces of single axis.
9 - Acquisition mode selected (see Mode section)
10 - Dynamic range (chosen between 120 and 140dB)
11 - Exit button to terminate application
12 - Control panel
13 – Display for time domain / spectrum analysis
Commands are grouped in the control panel in 5 different sections:
Mode: to set different operating modes
Span: to select a specific frequency span and, within the selected span, to
set zoom function
Standard: to create and save limit traces, to activate a specific limit
Data: to display measurement results and save data
Style: to change colour and button aspect
Each section can be activated with a mouse click.
