NARDA EHP-50-G - Block Diagram of the EHP-50 G

1-2 General Information
EHP-50G is housed in a small cubic housing. The bottom side panel
includes an optic fiber connector, extension rod screw, battery charger
connector, ON/OFF button and Status LED.

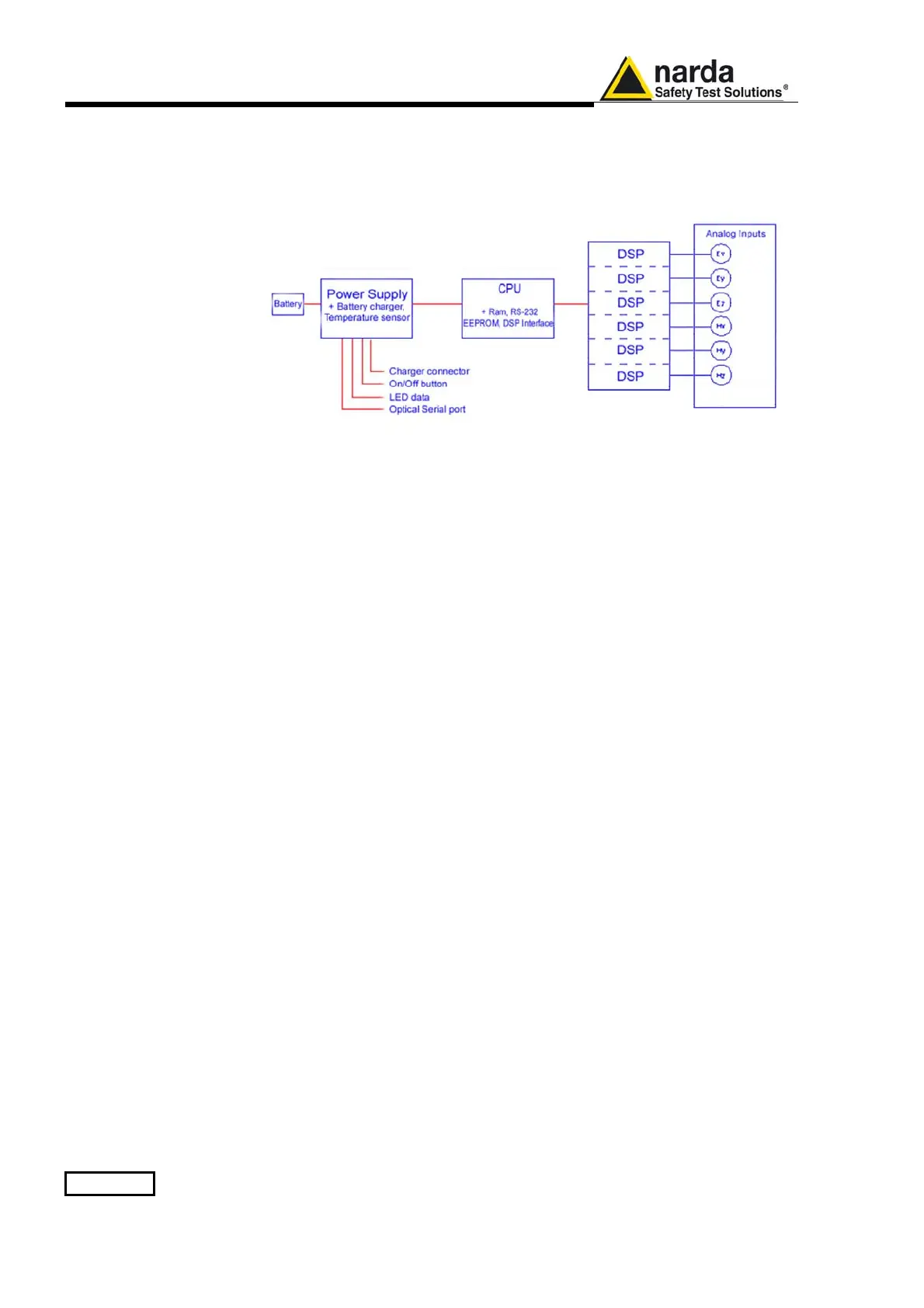

Fig. 1-1 Block diagram of the EHP-50G Analyzer
The magnetic sensor system is composed by three magnetic loops
positioned orthogonal each other. The electric sensor system is composed
by three orthogonal parallel capacitors installed on opposite side of the
magnetic loops.
