Accessories 9-5
9.4

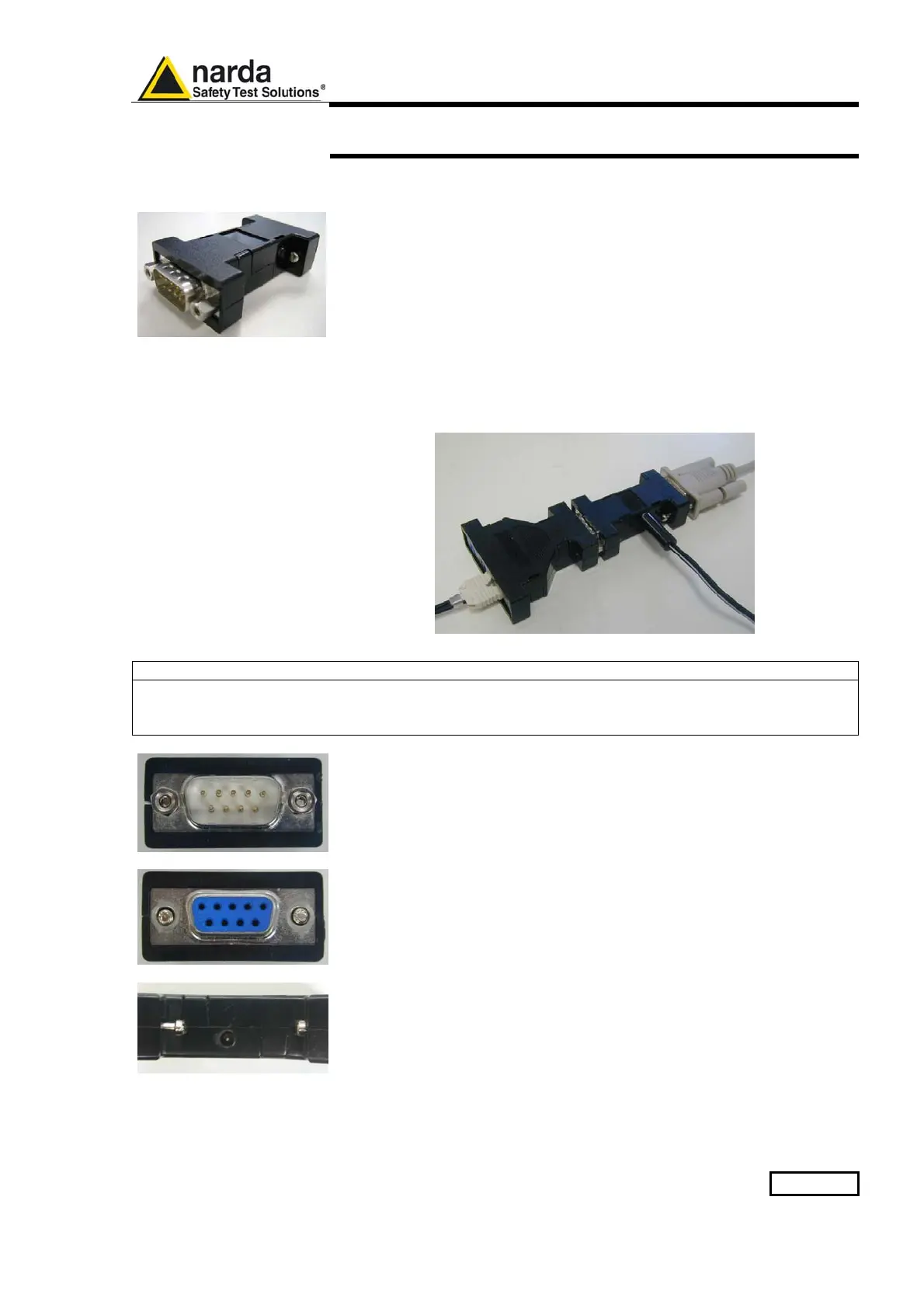

8053-OC-PS Power Supply
9.4.1 Introduction
The energy available on the DB9 connector of some PC model could be
not sufficient to guarantee a link with 8053-OC. In this case, it is necessary
to use 8053-OC-PS between the converter and PC.
8053-OC-PS is an optional accessory of the EHP-50G Analyzer.
8053-OC-PS is indispensable for some PC model which do not have
sufficient energy, at the Serial Port, to guarantee a link with 8053-OC.
9.4.2 Installation
Connect 8053-OC-PS to a free serial port of the PC or serial cable and
connect the 8053-OC to 8053-OC-PS. 8053-OC-PS is powered by means
of the provided 230Vac - 9Vdc Wall Adapter. Connect the fiber optic
coming from the probe or other Accessories to 8053-OC.
Table 9-3 Technical specifications of the 8053-OC-PS Power Supply
RS 232 Connectors
9 pin DB9
Front panel
RS232 male DB9 connector
Fig. 9-3 8053-OC-PS Connectors
Rear panel
RS232 female DB9 connector
Side panel
Supply male connector
Power supply
8053-OC-PS is powered through 230Vac - 9Vdc Wall Adapter.
