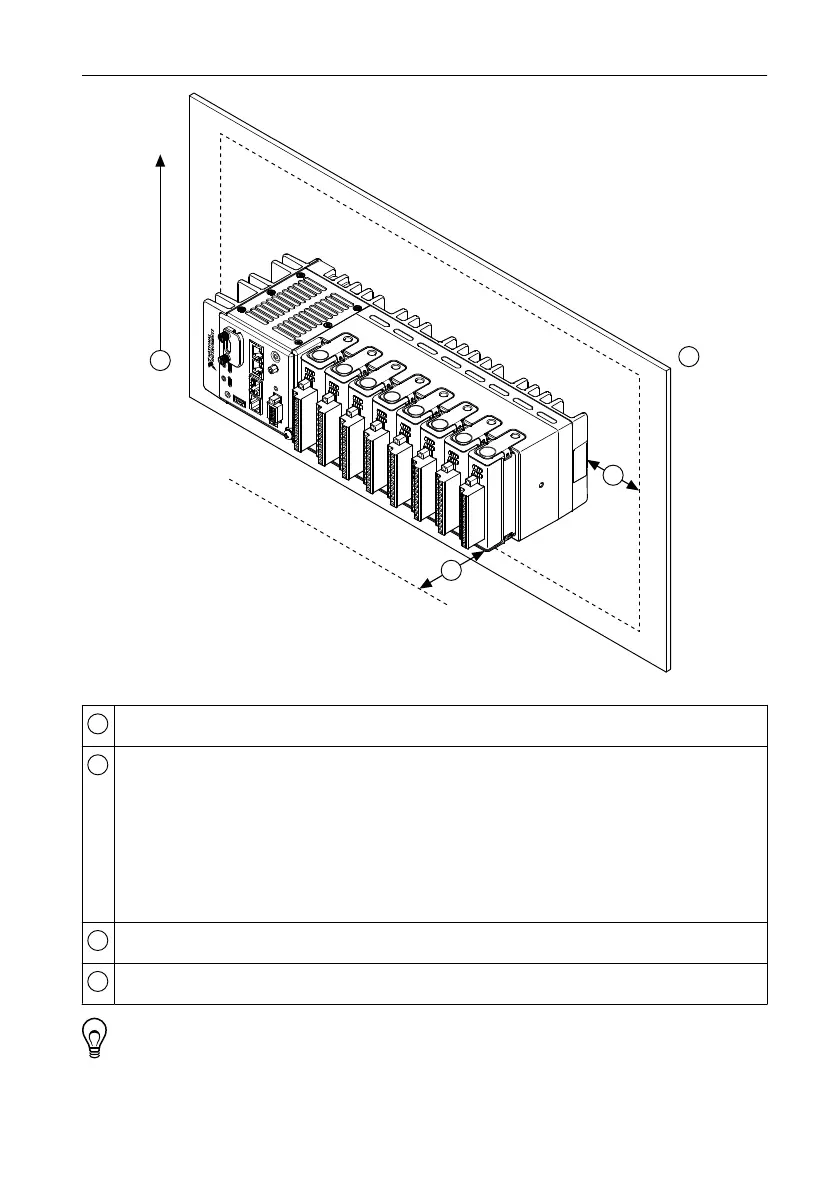

Figure 11. cRIO-904x Reference Mounting Configuration
3
4
1
Up
2
1
Horizontal mounting orientation.
2
Mounting substrate options:
• Mount the cRIO-904x directly to a metallic surface that is at least 1.6 mm
(0.062 in.) thick and extends a minimum of 101.6 mm (4 in.) beyond all edges of
the device.
• Use the NI Panel Mounting Kit to mount the cRIO-904x to a metallic surface that is
at least 1.6 mm (0.062 in.) thick and extends a minimum of 101.6 mm (4 in.)
beyond all edges of the device.
3
Observe the cooling dimensions in the Mounting Requirements section.
4
Allow space for cabling clearance according to the Mounting Requirements section.
Tip Before using any of these mounting methods, record the serial number from
the back of the cRIO-904x so that you can identify the cRIO-904x in MAX. You will
be unable to read the serial number after you mount the cRIO-904x.
26 | ni.com | cRIO-904x User Manual
