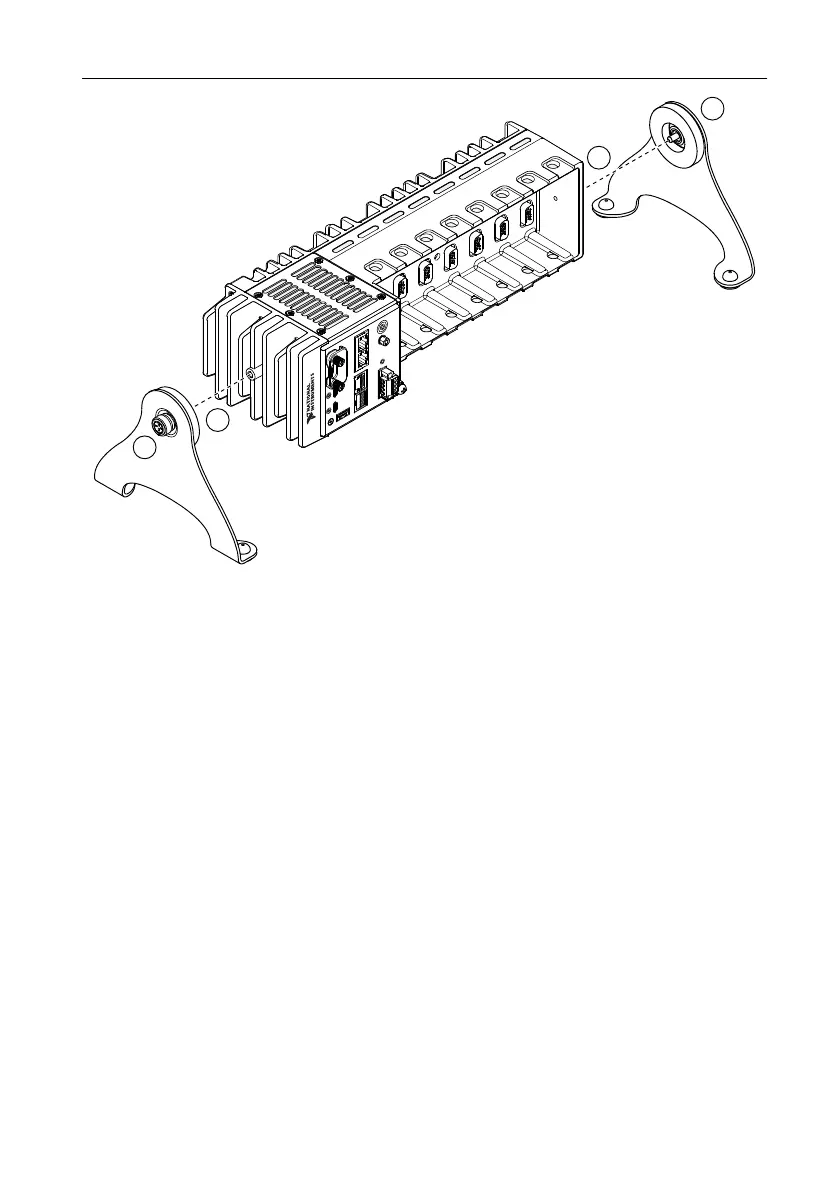

Figure 30. Mounting the 8-slot cRIO-904x on a Desktop
1
1
2
2
1. Align the brackets with the mounting holes on the ends of the cRIO-904x.
2. Use the screwdriver to tighten the captive screws on the end of the brackets.
Desktop Mounting Dimensions
The following figures show the desktop mounting dimensions for the 4-slot and 8-slot
cRIO-904x models.
