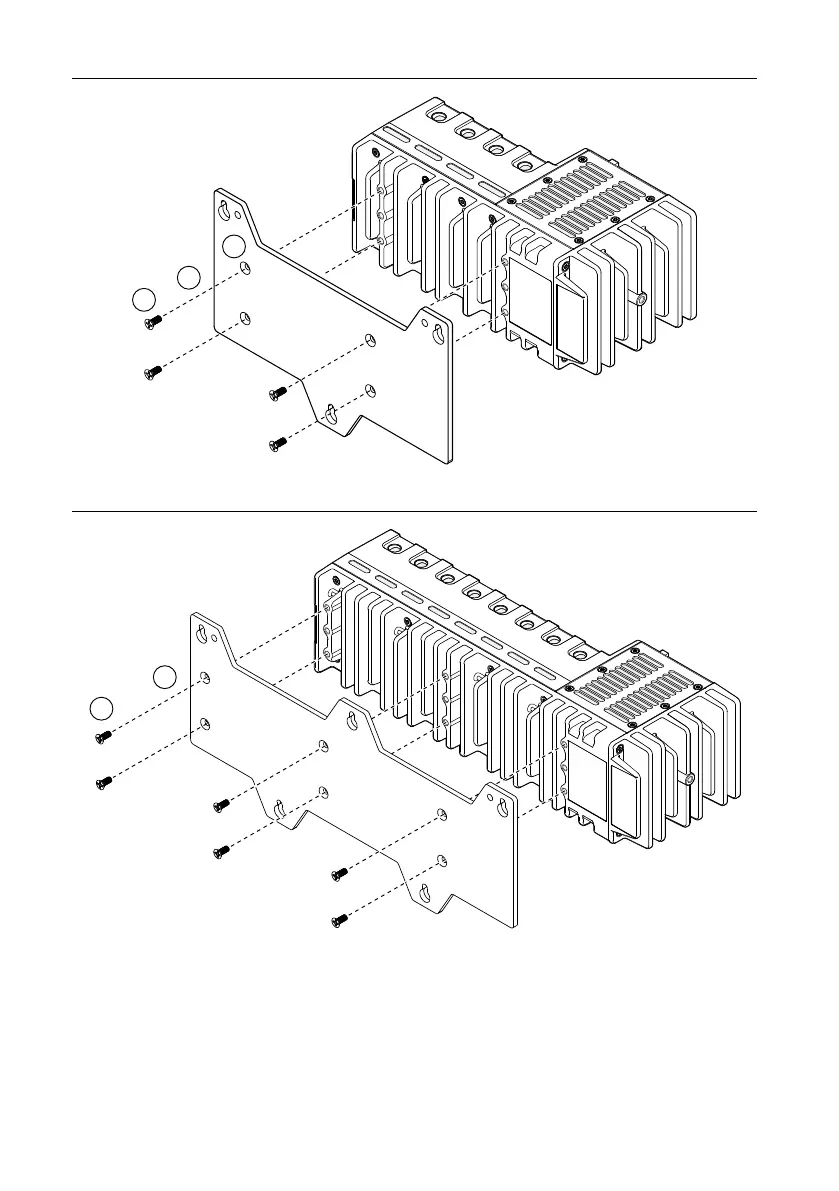

Figure 22. Mounting the 4-slot cRIO-904x on a Panel
1
3
2
Figure 23. Mounting the 8-slot cRIO-904x on a Panel
1
2
1. Align the cRIO-904x and the panel mounting plate.
2. Fasten the panel mounting plate to the cRIO-904x using the screwdriver and M4 x 10
screws. Tighten the screws to a maximum torque of 1.3 N · m (11.5 lb · in.).
You must use the screws provided with the NI panel mounting kit because they are the
correct depth and thread for the panel mounting plate.
