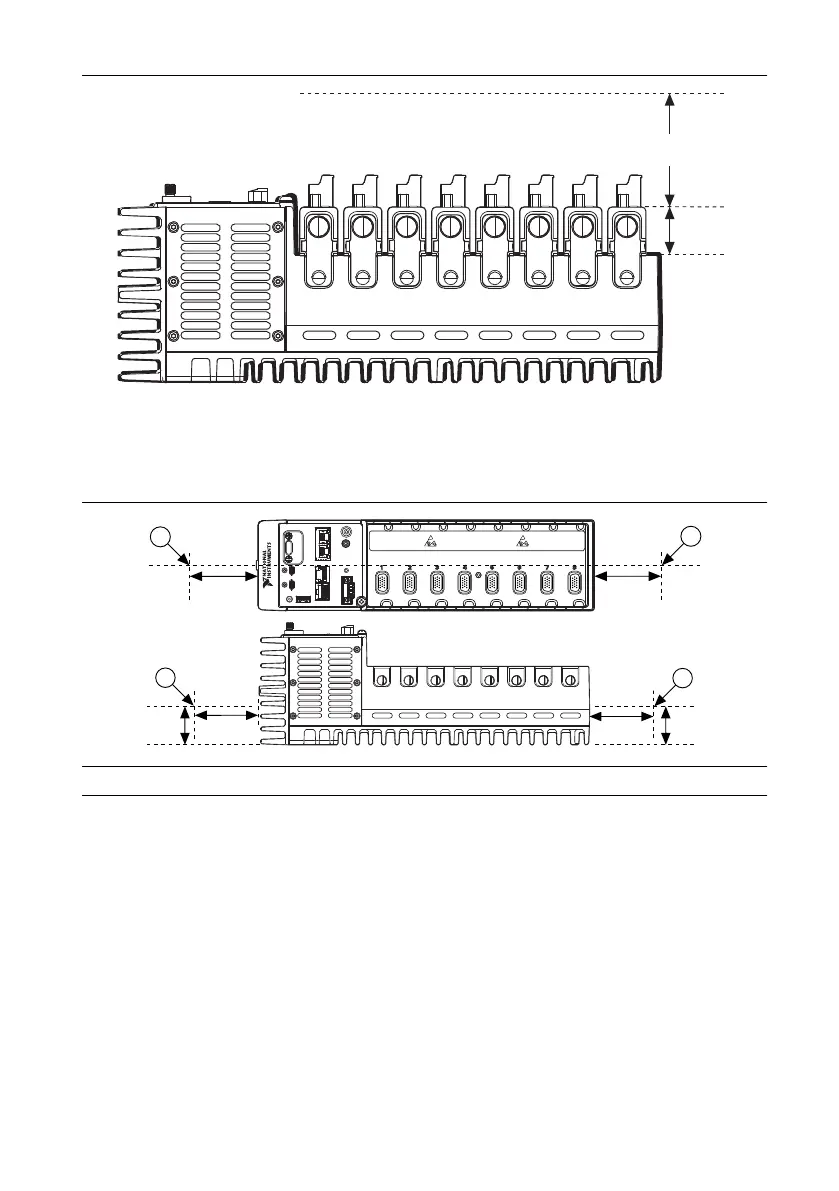

Figure 13. cRIO-904x Cabling Clearance
29.1 mm
(1.14 in.)
Cabling
Clearance
Measure the ambient temperature at each side of the cRIO-904x, 63.5 mm (2.50 in.) from the
side and 38.1 mm (1.50 in.) forward from the rear of the cRIO-904x, as shown in the following
figure.
Figure 14. Ambient Temperature Location
38.1 mm
(1.50 in.)
63.5 mm
(2.50 in.)
1
63.5 mm
(2.50 in.)
1
38.1 mm
(1.50 in.)
63.5 mm
(2.50 in.)
1
63.5 mm
(2.50 in.)
1
1. Measure the ambient temperature here.
Dimensions
The following figures show the front and side dimensions of the cRIO-904x. For detailed
dimensional drawings and 3D models, visit ni.com/dimensions and search for the model
number.
28 | ni.com | cRIO-904x User Manual
