National Instruments PXIe-8840 User Manual

© National Instruments | 3-3
PXIe-8840 User Manual
DisplayPort
Figure 3-2 shows the location and pinouts for the DisplayPort connector on the PXIe-8840.
Table 3-2 lists and describes the DisplayPort connector signals.

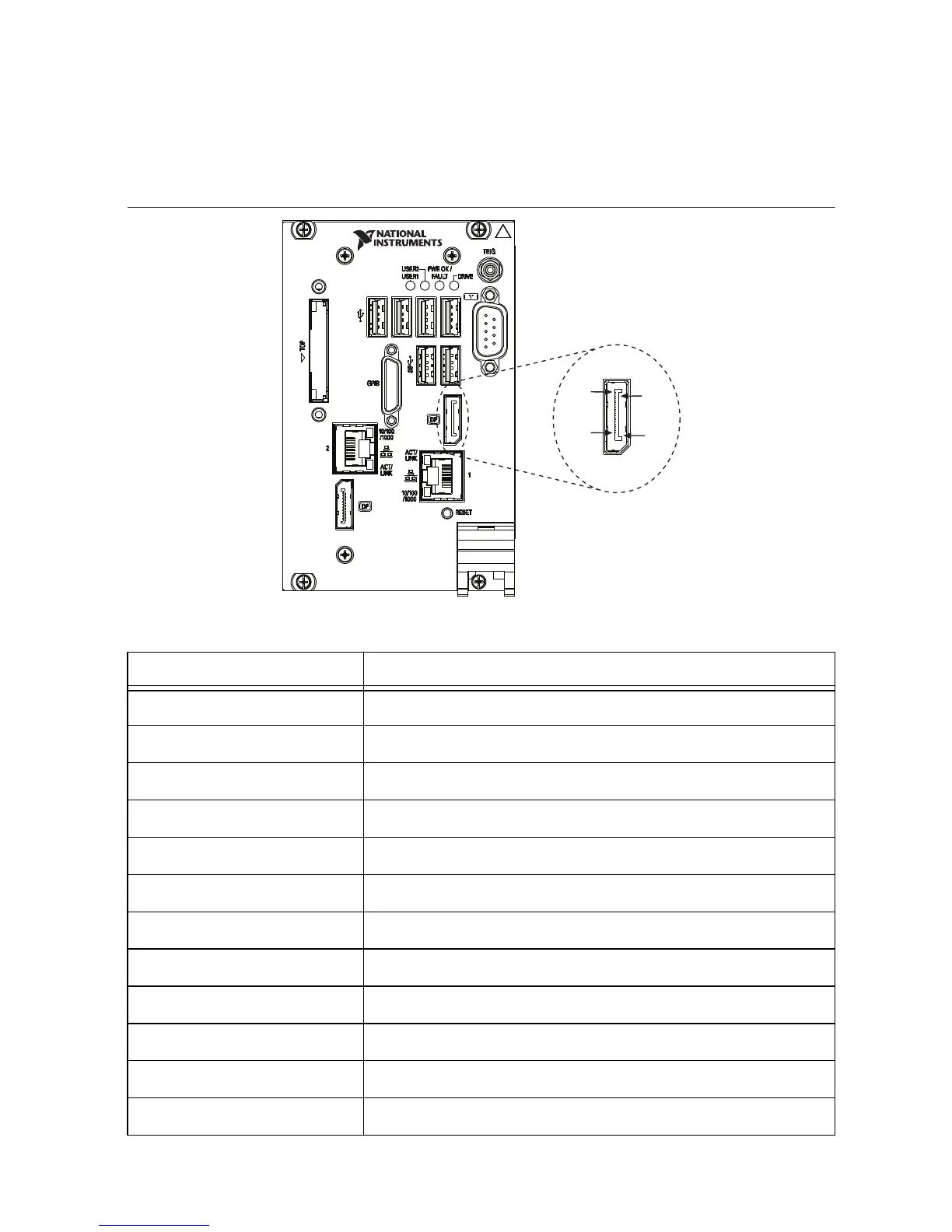

Figure 3-2. DisplayPort Connector Location and Pinout
Table 3-2. DisplayPort Connector Signals
Pin Signal Name
1 ML_Lane0(p)
2 GND
3 ML_Lane0(n)
4 ML_Lane1(p)
5 GND
6 ML_Lane1(n)
7 ML_Lane2(p)
8 GND
9 ML_Lane2(n)
10 ML_Lane3(p)
11 GND
12 ML_Lane3(n)
1
19
20
2
NI PXIe-8840
Embedded Controller
