National Instruments sbRIO-9637 User Manual

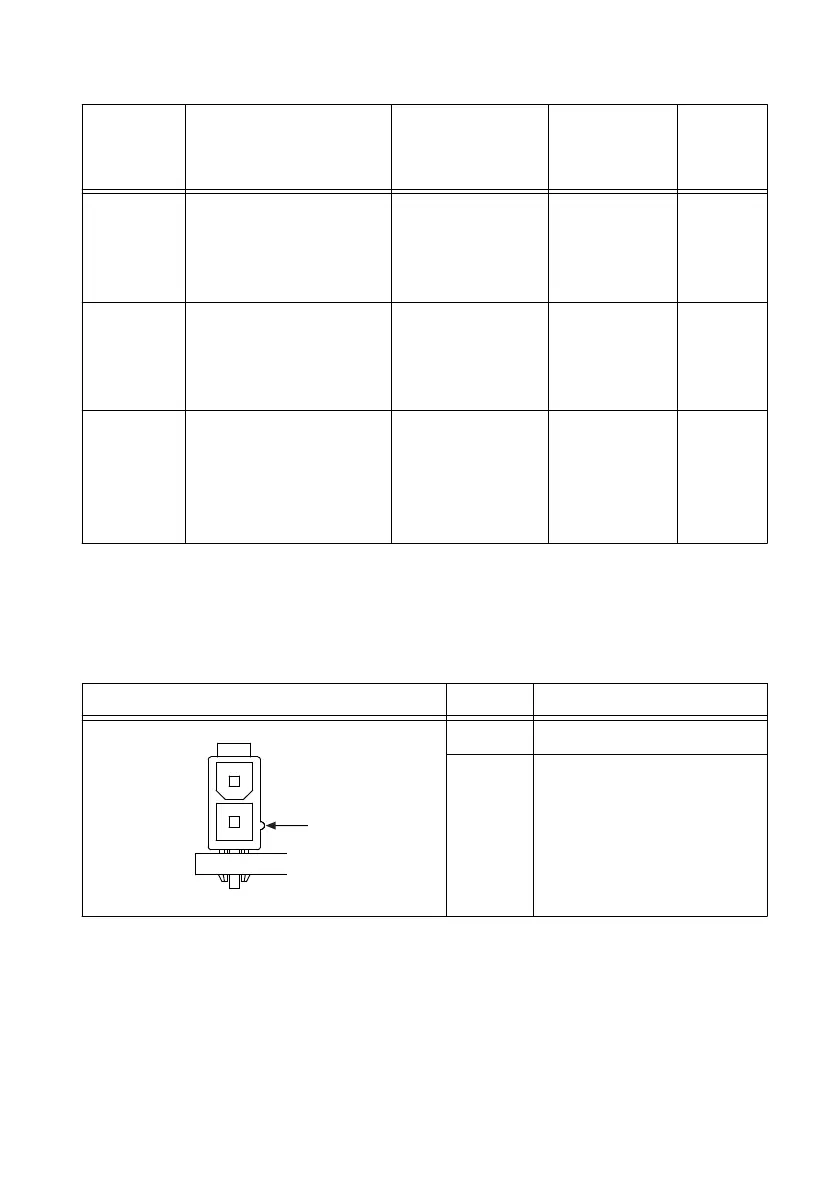

Table 2. NI sbRIO Connector Descriptions
Connector Description Manufacturer, Part
Number
Recommended
Mating
Connector
NI
Solution
Power 2-position, mini-fit JR,
H = 10.439 mm (0.411 in.)
Molex, 46999-0144 Molex,
50-36-1673 w/
0457501211
NI, Power
Plug
Assembly,
152834-01
RS-232/485/
CAN IDC
Header
10-pin, 0.100 in. CT,
shrouded,
H = 9.398 mm (0.370 in.)
Samtec,
TST-105-01-L-D
Tyco,
1658622-1
NI, 10-pin
to 9-pin
D-SUB,
153158-10
50-Pin IDC
Header
50-pin, 2 mm CT,
Shrouded,
H = 3.937 mm (0.155 in.)
Samtec,
STMM-125-02-L-D
Tyco,
2-111623-6
NI, 50-
position
ribbon
cable,
154041-12
Power Connector
The sbRIO-9637 has a power connector to which you can connect a power supply. The
following table shows the pinout for the power connector.
Table 3. Power Connector Pinout
Pinout Pin Description
V
C
Pin 1
C Common
V Power input
The sbRIO-9637 has reverse-voltage protection.
RJ-45 Gigabit Ethernet Port
The sbRIO-9637 has a tri-speed RJ-45 Gigabit Ethernet port. By default, the Ethernet port is
enabled and configured to obtain an IP address automatically. The Ethernet port can be
configured in MAX.
The following table shows the pinout for the RJ-45 Gigabit Ethernet port.
