Mechanical Considerations
Proper mechanical design is critical for rugged environments in which the NI sbRIO device
may be subjected to extreme temperatures, shock, vibration, and other factors. In particular,
pay special attention to thermal performance to ensure that your application meets the
NI sbRIO device operating requirements.
Dimensions
The following figures specify dimensions for the sbRIO-9637.

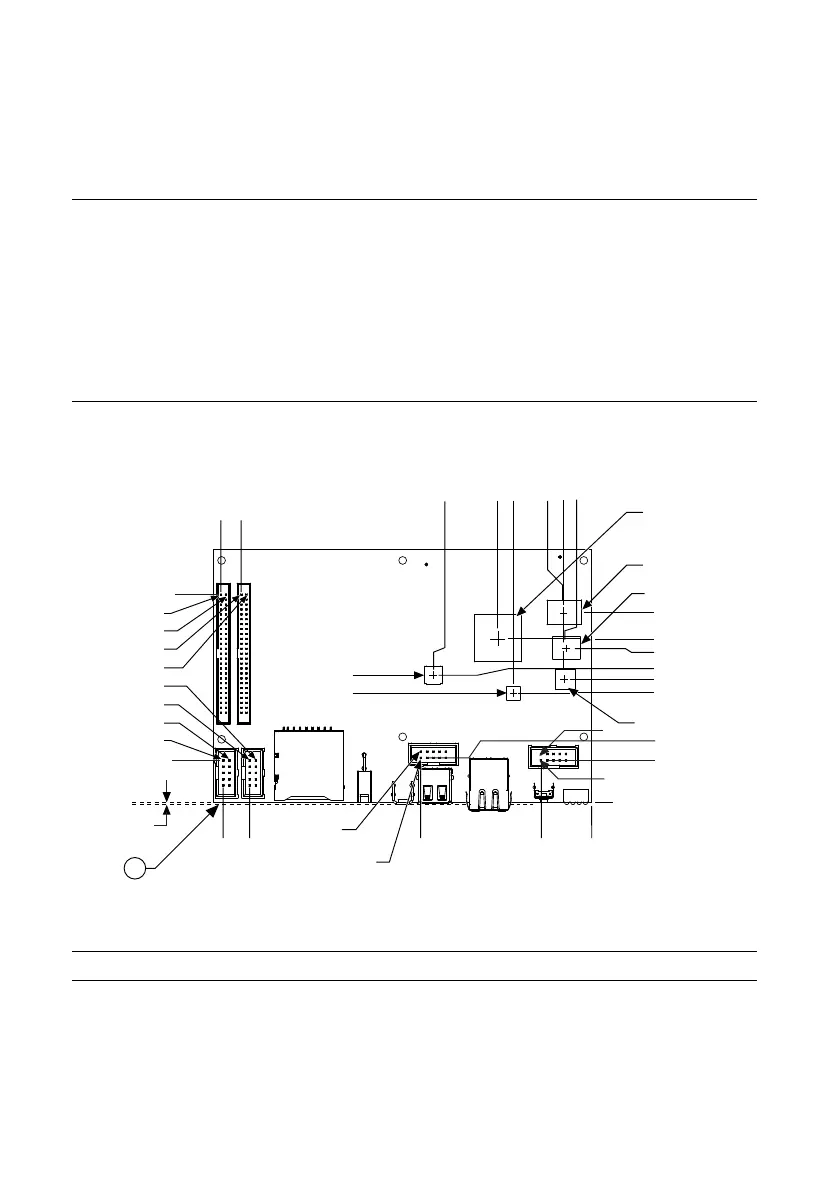

Figure 2. Primary-Side Dimensions in mm (in.)
0.00 (0.000)
0.0 (0.000)
20.63 (0.812) 69.47 (2.735)
139.07 (5.475) 149.89 (5.900)
1
0.64
(0.025)
84.51 (3.327)
142.43 (5.607)
150.73 (5.934)
17.12 (0.674)
Pin 1
Pin 2
Pin 1
Pin 2
Pin 2
Pin 1
Pin 2
Pin 1
Pin 2
Pin 1
USB PHY
CPLD
NAND Flash
DDR Memory
CPU/FPGA
ENET PHY
64.38 (2.534) 38.24 (1.505)
31.84 (1.253)
11.19 (0.440)
10.76 (0.423)
10.30 (0.405)
77.33 (3.044)
51.82 (2.040)
66.73 (2.627)
50.17 (1.975)
62.85 (2.474)
44.36 (1.746)
Pin 2
Pin 1
18.13 (0.714)
17.17 (0.676)
1. Back of Front Panel
