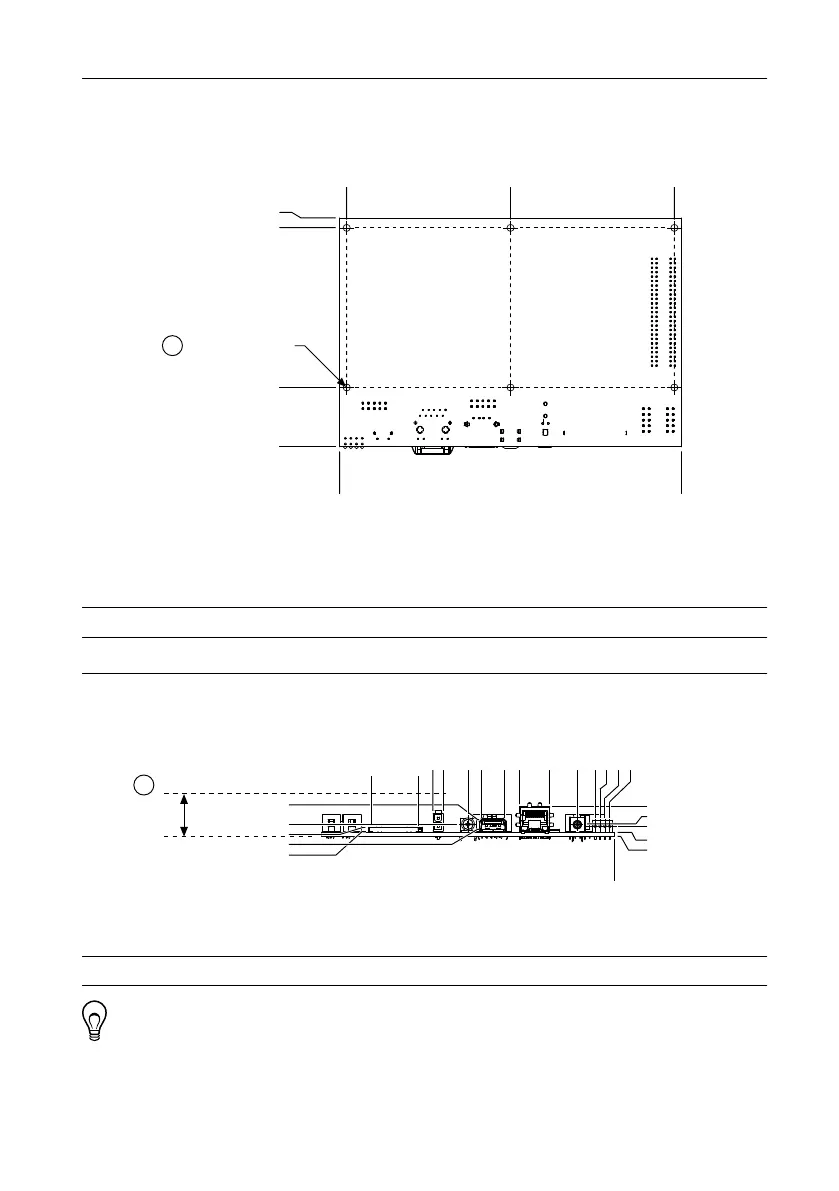

Figure 3. Secondary-Side Dimensions in mm (in.)
150.47 (5.924)
76.84 (3.025)
3.20 (0.126)
102.87 (4.050)
98.40 (3.874)
6x
Ø
3.18 (0.125)
26.67 (1.050)
0.0 (0.00)
0.0 (0.00)
153.67 (6.050)
1
1. Holes and Keepouts Sized for M3 Standoff (4.5 mm Hex) or 4-40 Standoff (3/16-in. Hex)
Figure 4. Front Dimensions in mm (in.)
15.64 (0.616)
6.16 (0.242)
127.47 (5.018)
103.02 (4.056)
95.21 (3.748)
89.81 (3.536)
76.82 (3.025)
70.02 (2.757)
57.52 (2.265)
49.73 (1.958)
33.99 (1.338)
19.50 (0.768)
10.16 (0.400)
7.620 (0.300)
5.080 (0.200)
2.540 (0.100)
5.34 (0.210)
2.16 (0.085)
0.00 (0.000)
8.76 (0.345)
6.32 (0.249)
4.66 (0.183)
3.66 (0.144)
2.56 (0.101)
0.0 (0.00)
18.16
(0.715)
1
1. Minimum Clearance for Latch on Mating Power Connector
Tip For two-dimensional drawings and three-dimensional models of the
sbRIO-9637, visit ni.com/dimensions and search by model number.
4 | ni.com | NI sbRIO-9637 User Manual
