National Instruments sbRIO-9637 - POWER LED Indicators; STATUS LED Indicators

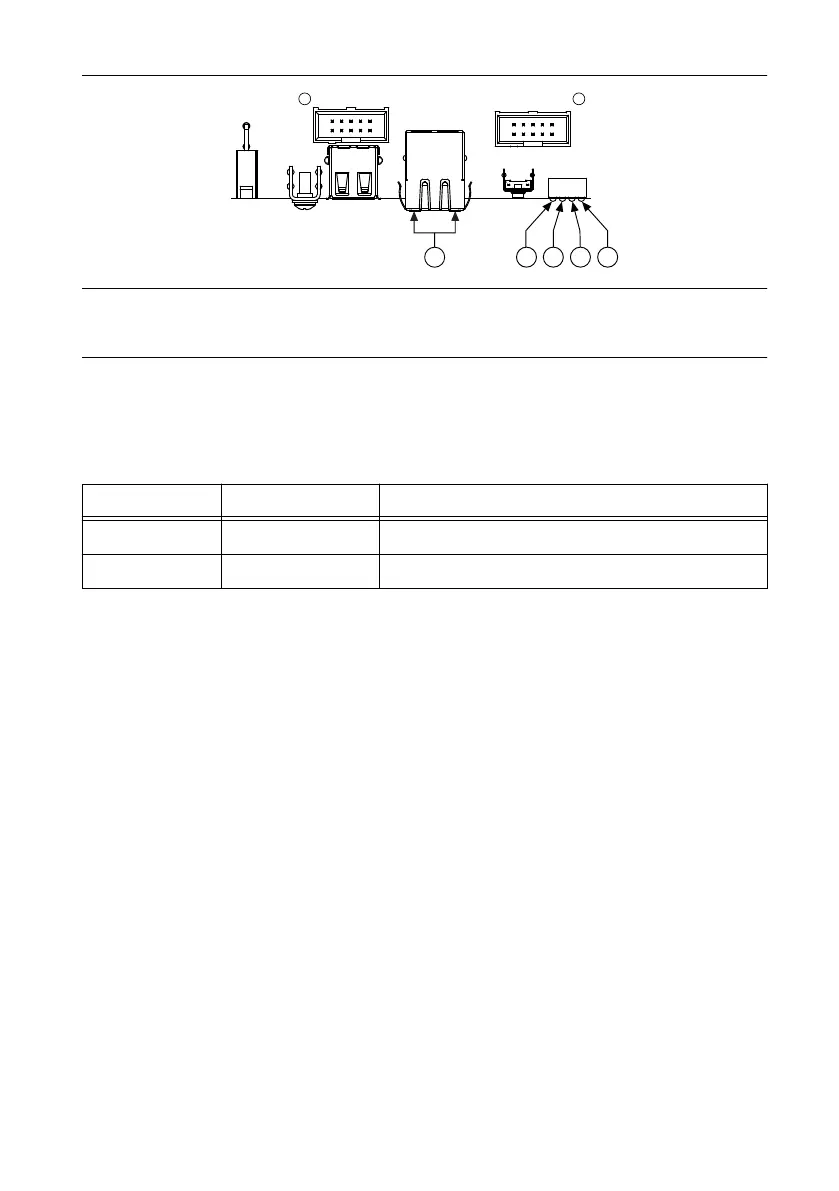

Figure 22. sbRIO-9637 LEDs
1
3
2
4
5
1. Gigabit Ethernet LEDs
2. POWER LED
3. STATUS LED
4. USER1 LED
5. USER FPGA1 LED
POWER LED Indicators
The following table lists the POWER LED indicators.
Table 11. POWER LED Indicators
LED Color LED Pattern Indication
Green Solid The sbRIO-9637 is powered ON.
— Off The sbRIO-9637 is powered OFF.
STATUS LED Indicators
The following table lists the STATUS LED indicators.
