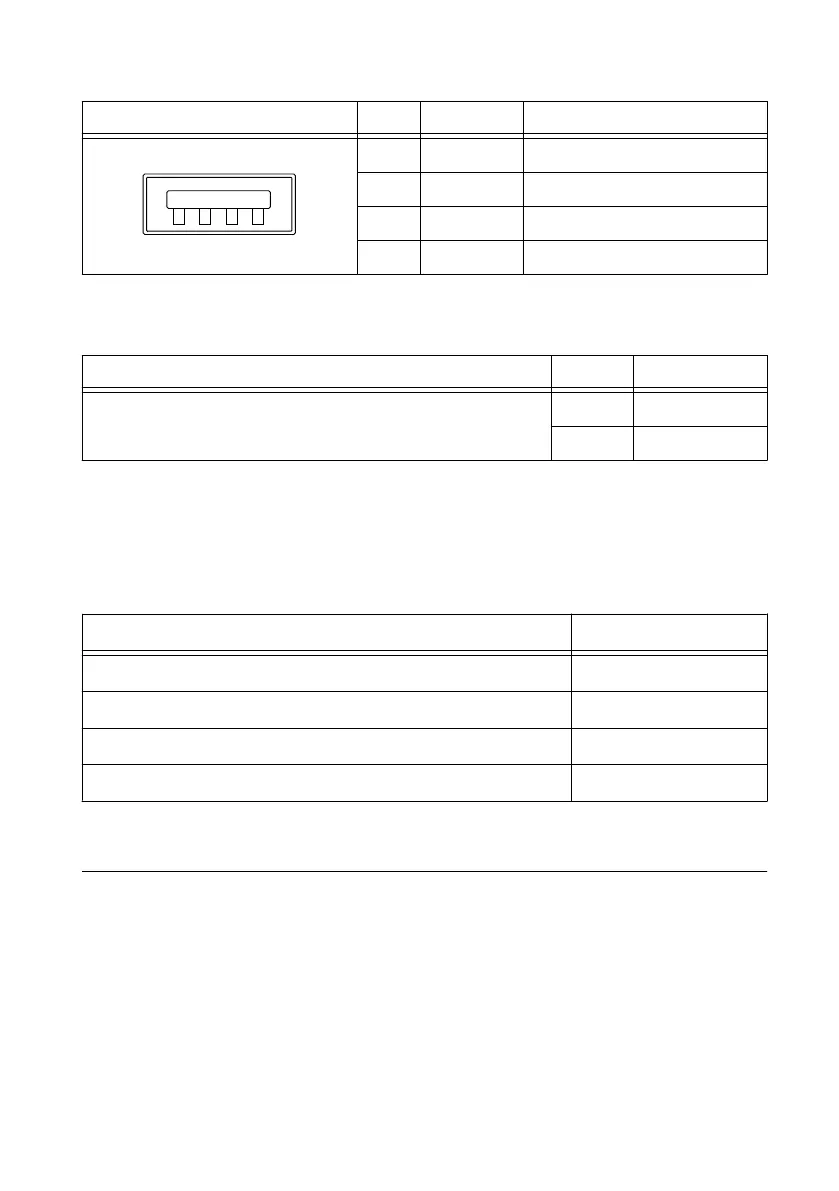

Table 9. USB Host Port Pinout
Pinout Pin Signal Description
1 VCC Cable power (5 V)
2 D- USB data-
3 D+ USB data+
4 GND Ground
The following NI cable is available for the sbRIO-9637.
Table 10. USB Host Port Cable
Cable Length Part Number
USB Extension with Retention, Type A Connectors 0.5 m 152166-0R5
2 m 152166-02
SD Connector
The sbRIO-9637 has an SD card connector that can be used to connect to either SD or SDHC
cards.
The following accessories are available to be used with the SD Connector.
Accessory Part Number
512 MB Industrially-Rated SD Card 780245-01
2 GB Industrially-Rated SD Card 780246-01
16 GB Industrially-Rated SD card 783658-01
32 GB Industrially-Rated SD card 783659-01
RESET Button
Press the RESET button to reset the processor in a similar manner as cycling power.
24 | ni.com | NI sbRIO-9637 User Manual
