Mounting on a Panel or Plate with Conduction Path
If possible, NI recommends that you mount the sbRIO-9637 on a panel or plate, such that a
thermal solution provides a conduction path from the primary side components and is secured
to or made from the panel or plate, as shown in the following figure.

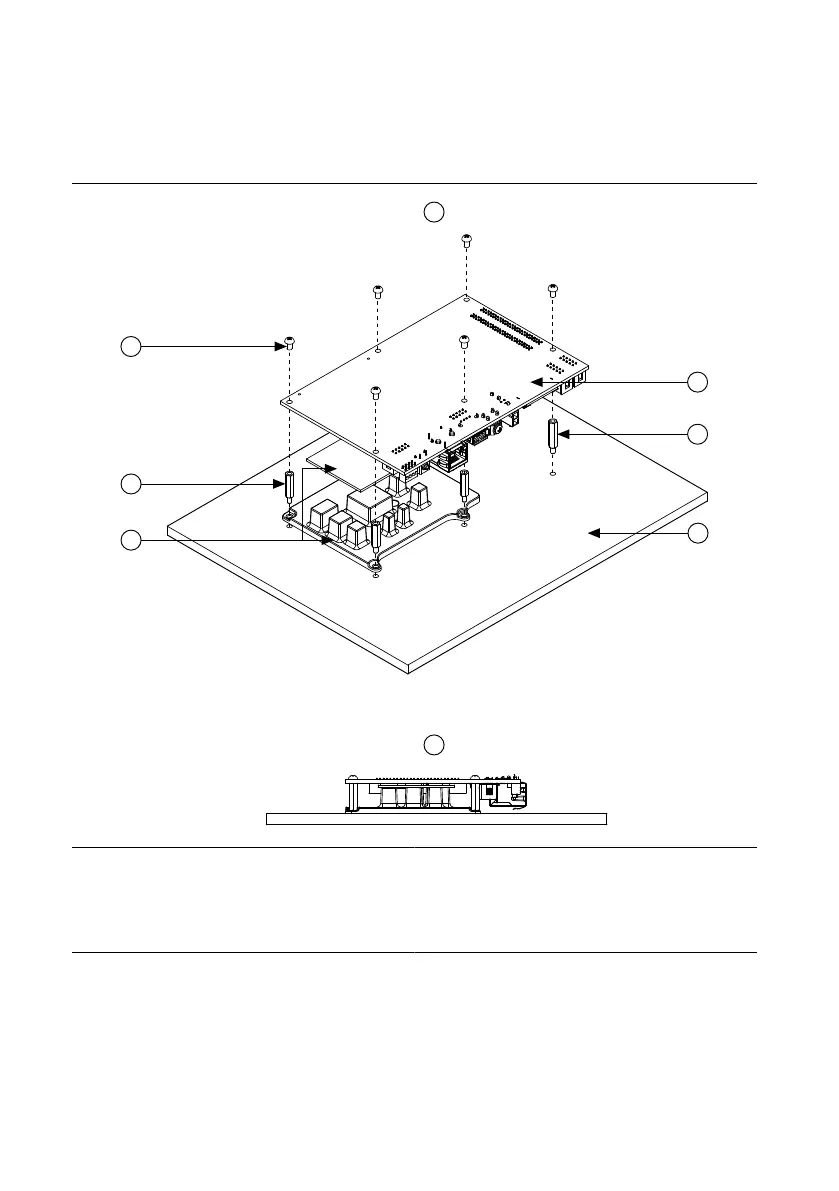

Figure 7. Mounting on a Panel or Plate
1
2
3
4
6
7
8
5
1. Exploded view of all mounting components
2. Complete assembled and mounted view
3. Mounting screws
4. Standoff, 16.00 mm (0.63 in.)
5. Thermal Kit for NI sbRIO-9607/9627/9637
(153901-02)
6. NI sbRIO-9637
7. Standoff, 18.00 mm (0.71 in.)
8. Mounting surface
NI sbRIO-9637 User Manual | © National Instruments | 7
