Nautilus E614 Assembly Manual

39
Maintenance Parts
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
D
S
R
T
U
V
W
X
Y
Z
AA
BB
KK
CC
DD
EE
FF
GG
HH
II
JJ

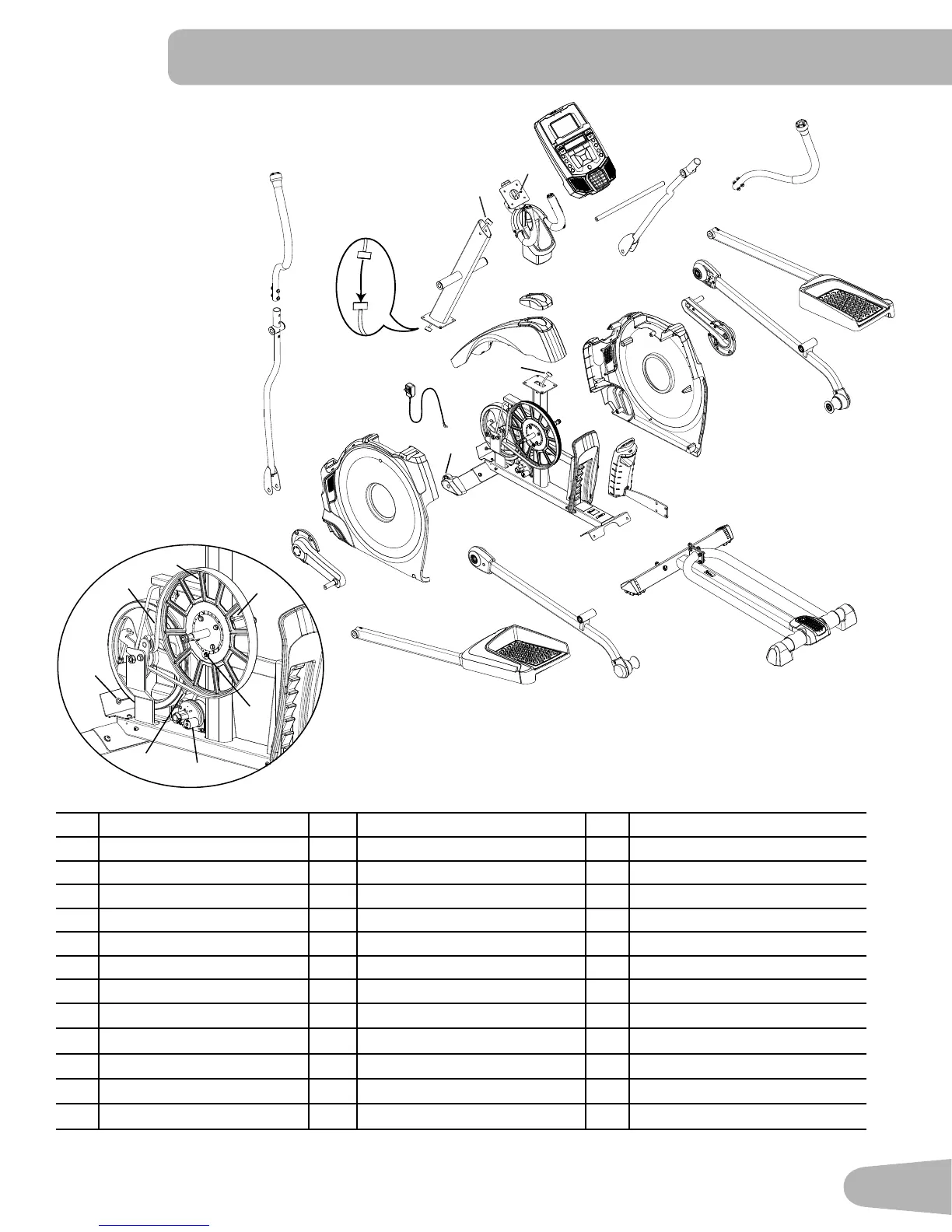

A Console N Shroud, Right AA Handlebar Arm, Upper Left
B Heart Rate (HR) Cable O Shroud Cap BB Transport Wheel
C Handlebar, Static P Shroud, Upper CC Drive Belt
D Console Cable, Upper Q Shroud, Left DD Drive Pulley
E Arm Pivot Rod R Console Cable, Lower EE Speed Sensor Magnet
F Console Mast S Incline Assembly FF Speed Sensor
G Water Bottle Holder T Frame Assembly GG Flywheel
H Handlebar Arm, Lower Right U Front Stabilizer HH Servo Motor
I Handlebar Arm, Upper Right V Rail Assembly II Brake Assembly
J Pedal Arm, Right W Crank Assembly, Left JJ Power Inlet
K Crank Assembly, Right X Leg, Left KK AC Adapter
L Leg, Right Y Pedal Arm, Left LL Silicone Lubricant, Bottle
M Roller Z Handlebar Arm, Lower Left
