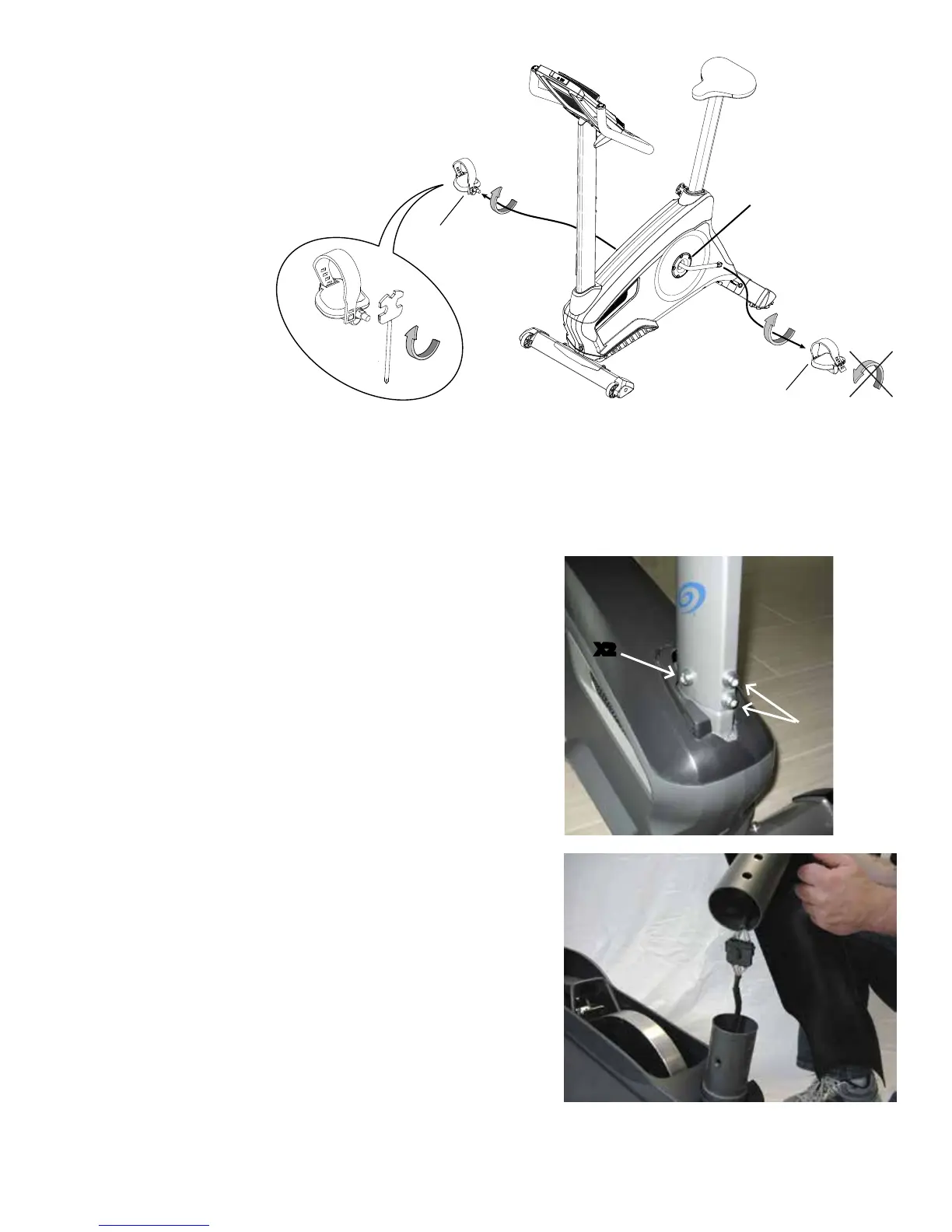

6. Loosen and remove the Pedals. Set them safely aside for
reassembly.
Note: The Left Pedal is reverse-threaded.
Orientation is based from a seated position on the bike. The
Left Pedal has an “L”, the Right Pedal an “R”.
7. Twist the Crank Cover (P) toward the front of the machine to
disengage the inner tabs. Carefully remove the Crank Covers and set
them safely aside.
8. Slide the Mast Gasket up the Mast.
9. Remove the hardware (indicated) from the Mast. Gently pull the Mast
out and disconnect the cables. Set the hardware, Mast and Mast Gasket
safely aside.
NOTICE: Do not crimp the cables. This step may require two people.
Note: Do not let the cable fall down inside the Frame.
10. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and remove the Top Shroud.
X2
Cable connectors
(R)
(L)
P
