Nautilus E626 Service Manual

56

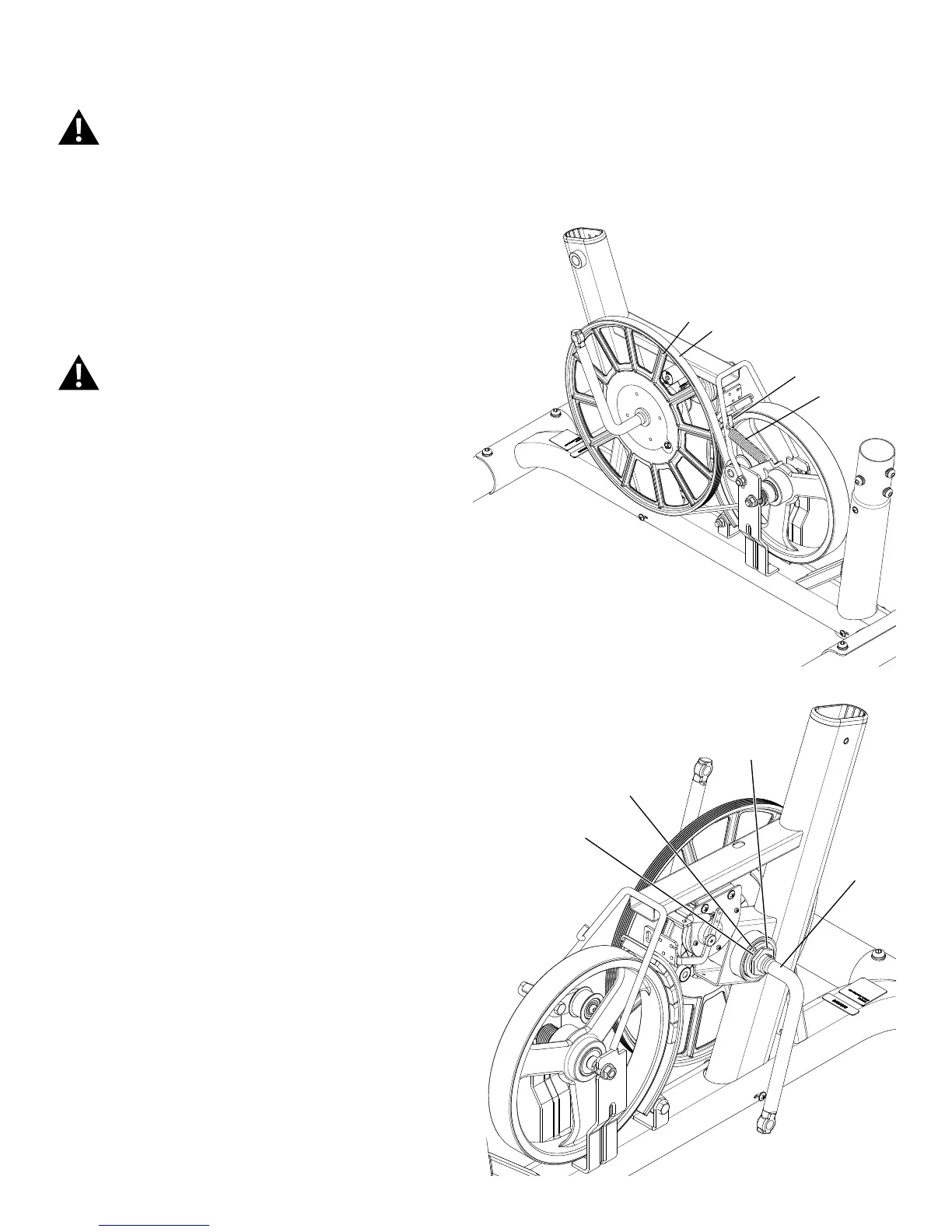

Note: Your machine may not match the image. For reference only.
1. Carefully remove the Shrouds. Refer to the “Replace the Shrouds”
procedure in this manual.
2. Slowly turn the Drive Pulley (A) backward and carefully ease the
Drive Belt (B) off the Drive Pulley to the outside.
Be sure to keep ngers clear of all pinch hazards as you turn the
Drive Pulley.
3. Using needlenose pliers, carefully release the Belt Tensioner Spring
(C1) from the hook (D) on the frame.
4. Loosen and remove the Locknut (E), Bumper (F) and Bracket (G)
from the Pulley Shaft Assembly (H).
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet and wait 5
minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure location.
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
It is necessary to adjust the Drive Belt tension at the end of this procedure. Refer to the “Belt Tension Adjustment” procedure
A
B
C1
D
F
G
E
H
