35

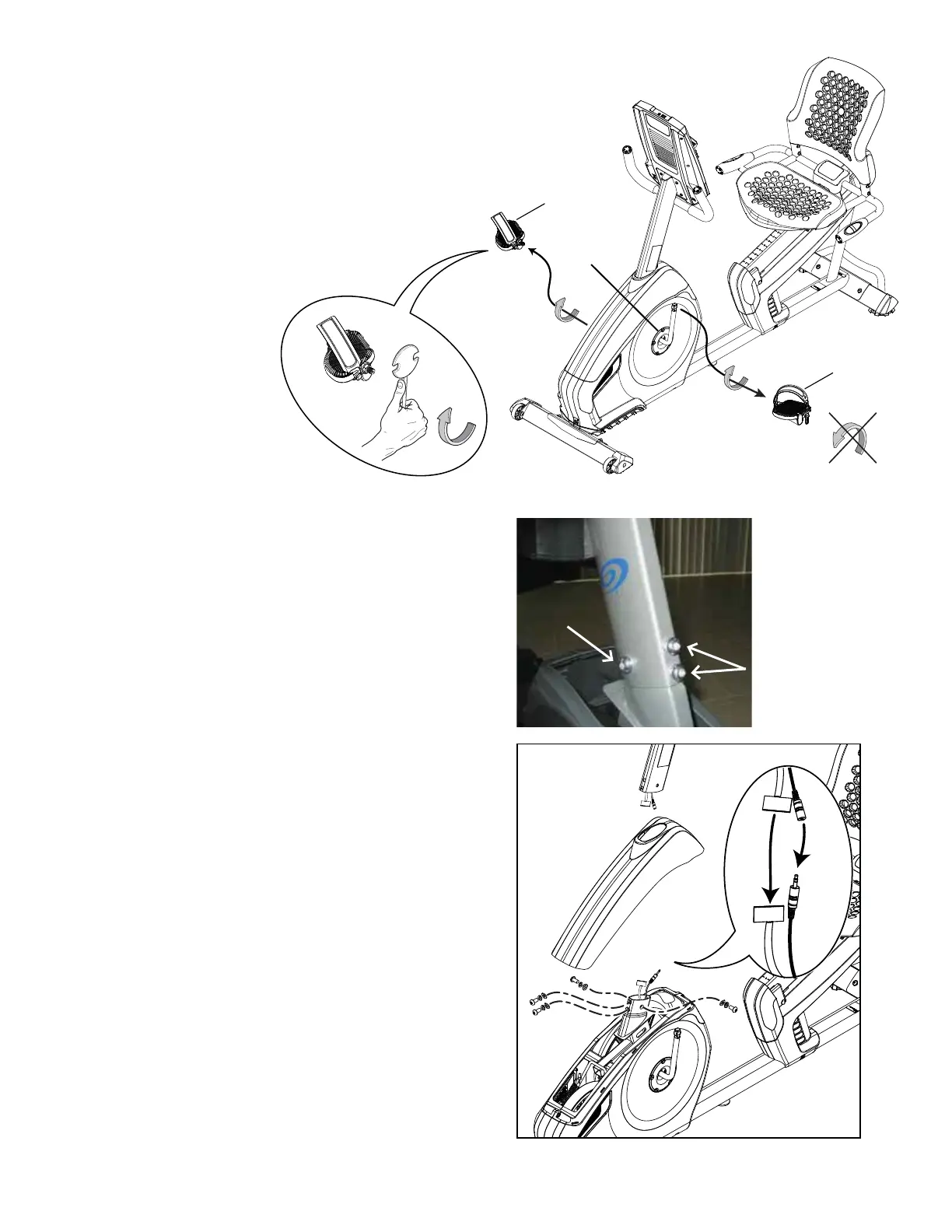

5. Loosen and remove the Pedals. Set them safely aside for
reassembly.
Note: The Left Pedal is reverse-threaded.
Orientation is based from a seated position on the bike. The
Left Pedal has an “L”, the Right Pedal an “R”.
6. Twist the Crank Covers toward the back of the machine to disengage
the inner tabs. Carefully remove the Crank Covers and set them safely
aside for reassembly.
7. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Top Shroud up the Mast.
8. Using the 6mm hex key, remove the hardware (indicated) from the
Mast. Gently pull the Mast out and disconnect the cables. Set the hard-
ware, Mast and Console, and Top Shroud safely aside for reassembly.
NOTICE: Do not crimp the cables. This step may require two people.
Note: Do not let the cables fall down inside the Frame.
;
(L)
(R)
P
