44

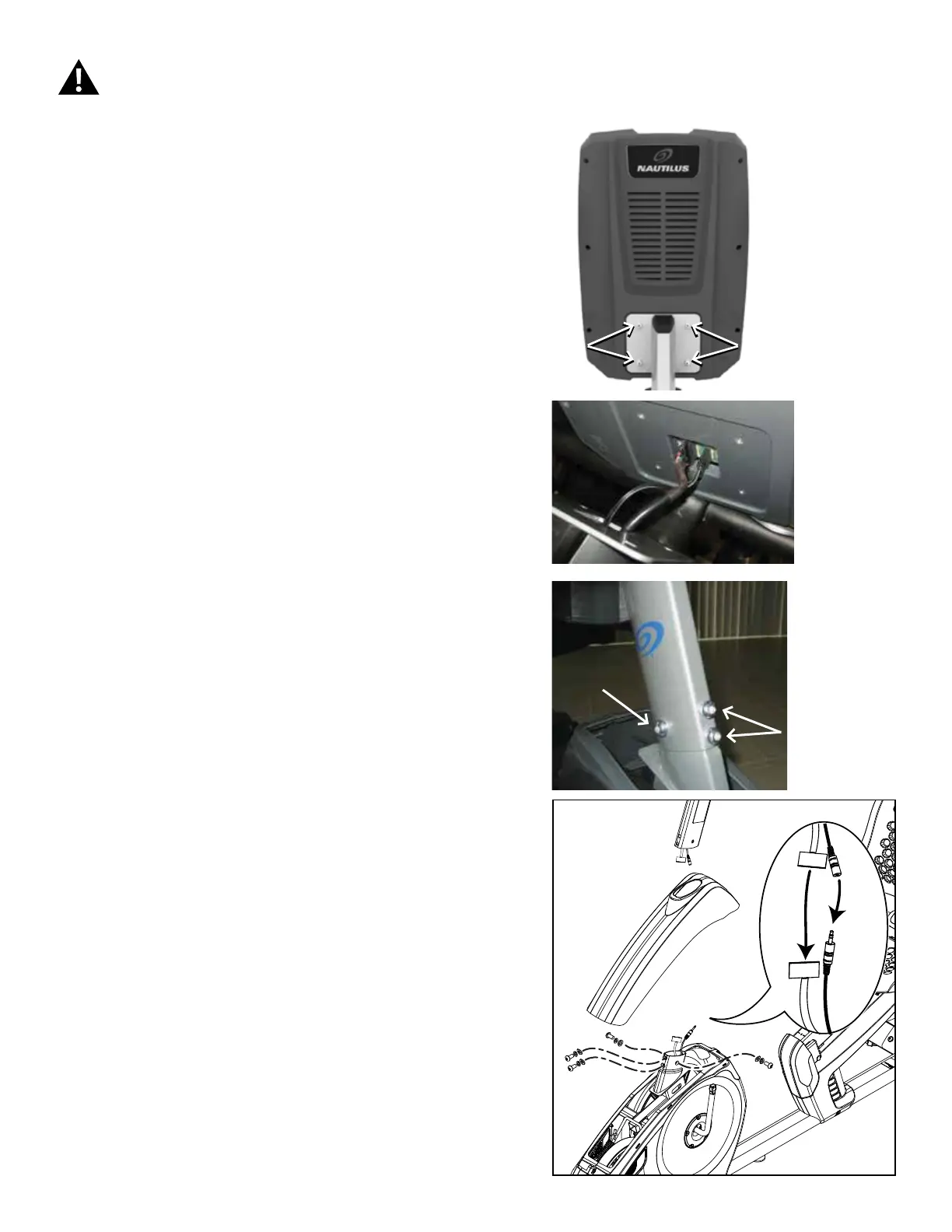

Note: Your machine may not match the image. For reference only.
1. Remove screws that attach Console to the Mast. Carefully lift the
Console off the Mast.
2. Disconnect the Data Cable and Heart Rate (HR) Cable from the back
of the Console. Set the Console and screws safely aside for reassembly.
Note: Do not let the cables fall down inside the Mast.
3. Bend the edges of the Top Shroud to disengage the inside tabs from
the Main Assembly, and slide the Top Shroud up the Mast.
4. Remove the hardware (indicated) from the Mast. Gently pull the
Mast out and disconnect the cables. Set the hardware safely aside for
reassembly.
NOTICE: Do not crimp the cables. This step may require two people.
Disconnect all power to the machine before you service it.
;
To Next Page
