45

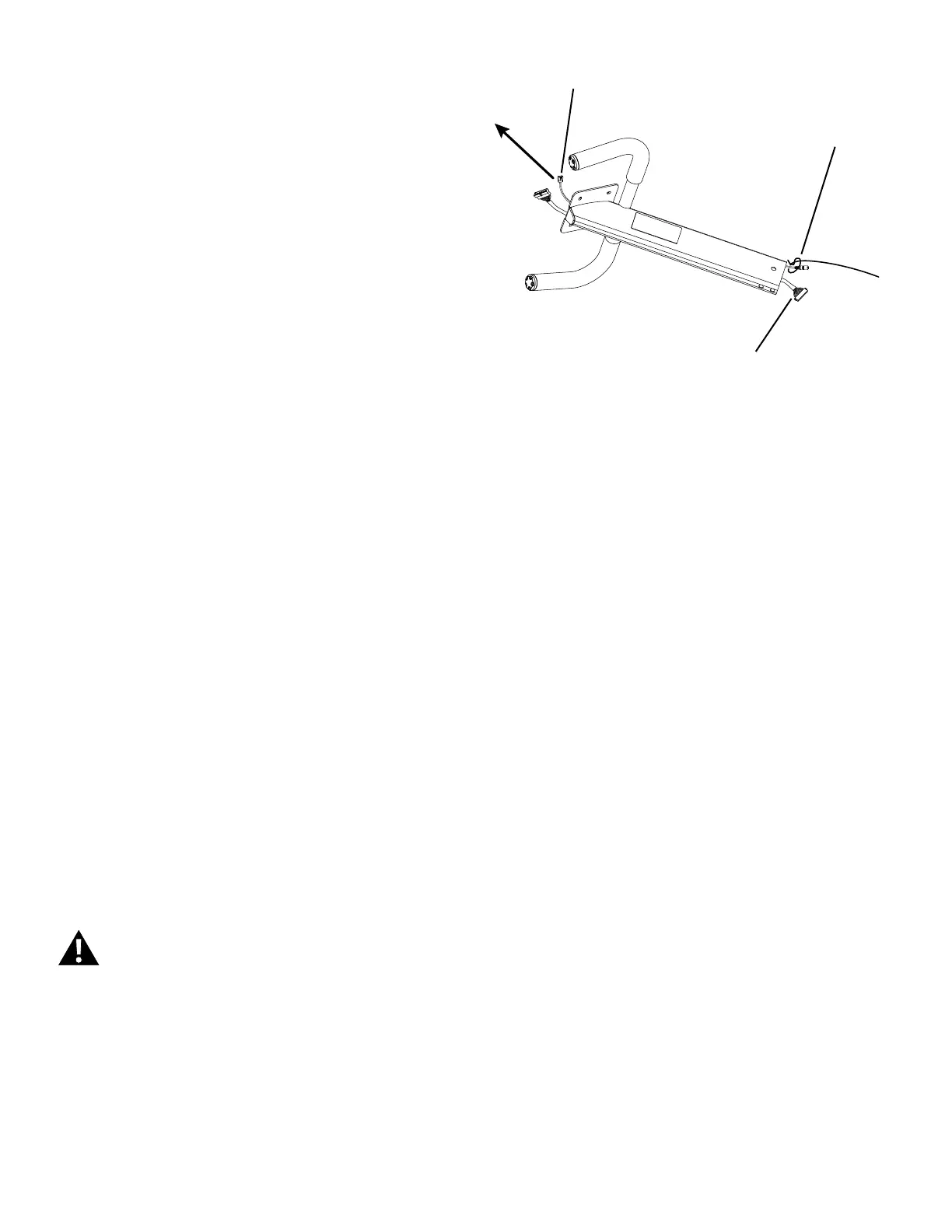

5. Tie the length of string to the end (A) of the HR Cable at the base of
the Mast. Hold the other end of the HR Cable (B) and carefully pull it out
of the Mast so that the string extends through the length of the Mast. Untie
the string from the old HR Cable and discard the old cable.
NOTICE: Hold the Data Cable (C) so that you do not pull it out of the
Mast. Do not crimp the Data Cable.
6. Tie the end of the string at the base of the Mast to one end of the
replacement HR Cable. Hold the other end of the string and carefully pull
the new HR Cable through the Mast.
NOTICE: Hold the Data Cable (C) so that you do not pull it out of the
Mast. Do not crimp the cables.
7. Untie the string from the HR Cable. With the Mast through the
opening in the Top Shroud, connect the cables in the Mast to the cables
from the Main Frame.
. NOTICE: Do not crimp the cables. This step may require two people.
8. Put the Mast (with the Top Shroud) back in position in the Main Frame
and reinstall the Hardware.
Note: Do not let the cables fall down inside the Mast.
NOTICE: Be sure not to crimp any cables. This step may require two
people.
9. Slide the Top Shroud back into position.
NOTICE: Be sure the tabs in the Top Shroud snap into the Main
Assembly.
10. Connect the cables to the back of the Console and attach the
Console to the Mast with the screws from Step 2.
NOTICE: Do not crimp the cables.
11. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
$
B
C
