1RWH Your machine may not match the image. For reference only.

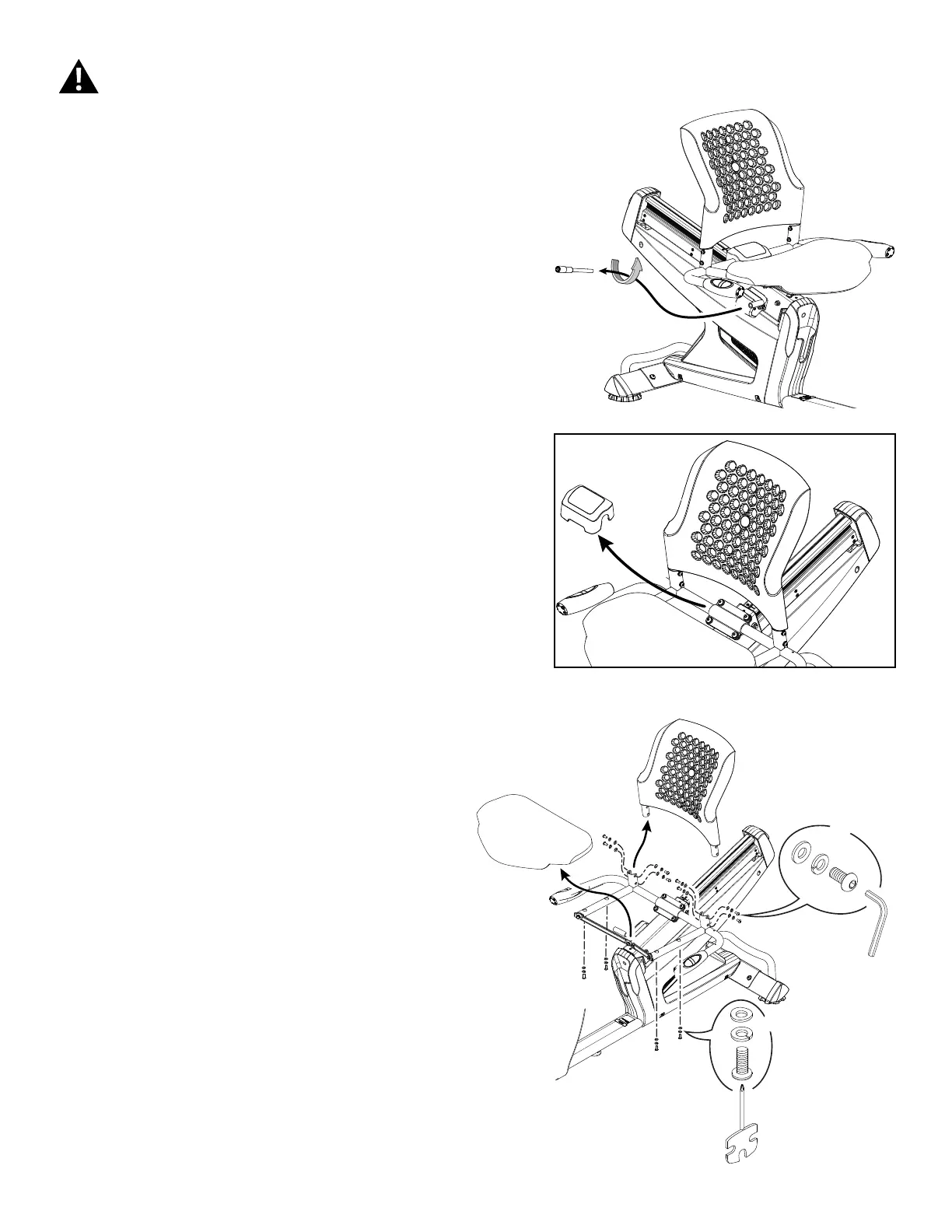

1. Loosen and remove the Seat Adjustment Handle. Set

the Seat Adjustment Handle safely aside.

2. Carefully remove the Seat Cover from the seat slider

bracket.

3. Using a #2 Phillips Screwdriver, loosen and remove the

hardware that attaches the Seat Bottom to the Seat Frame

Assembly. Set the hardware safely aside for reassembly.

Remove the Seat Bottom from the Seat Frame Assembly

and set it safely aside.

4. 8VLQJDPPKH[NH\ORRVHQDQGUHPRYHWKHKDUGZDUH

that attaches the Seat Back to the Seat Frame assembly,

and remove the Seat Back. Set the Seat Back and

hardware safely aside.

NOTICE: This step may require two people.

Disconnect all power to the machine before you service it.

4mm
