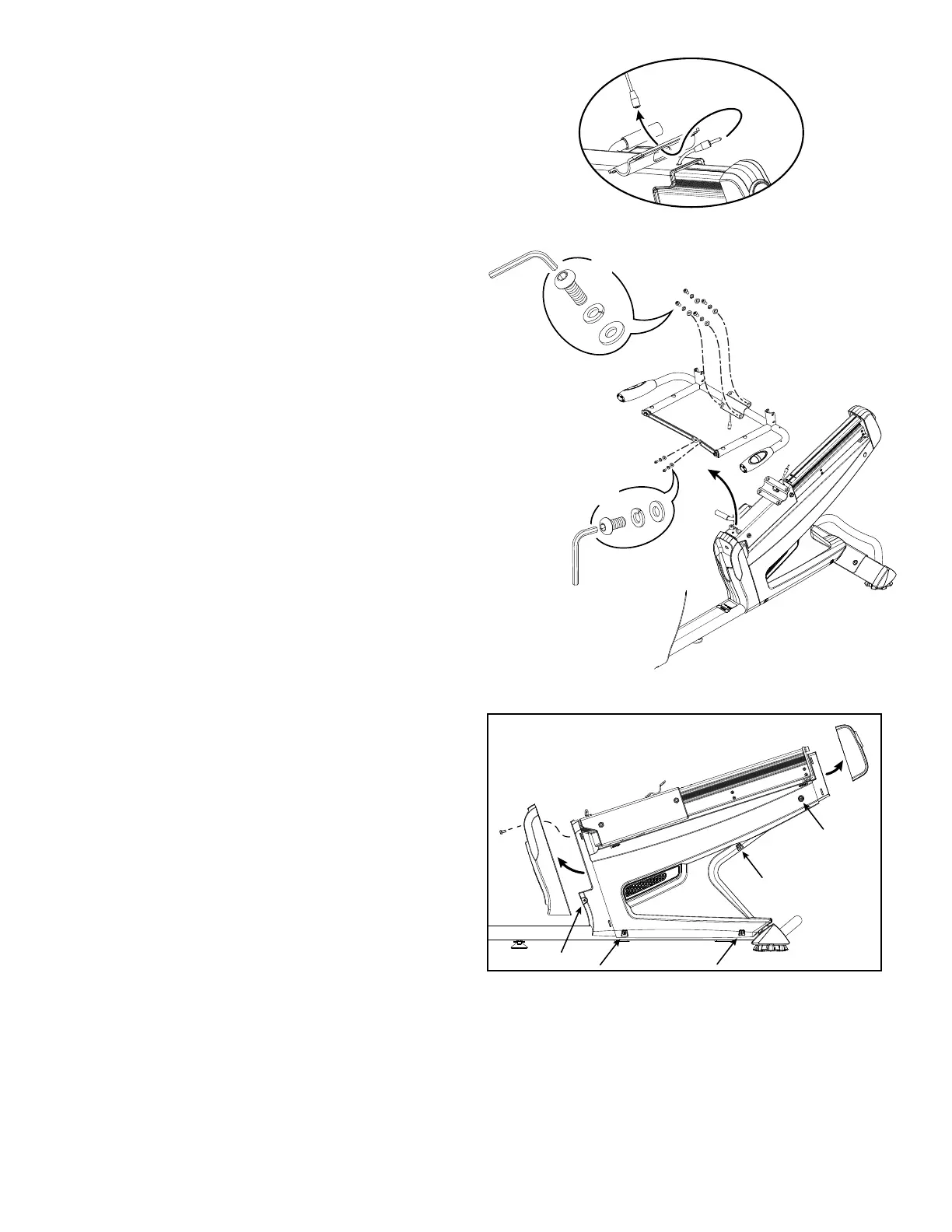

5. Carefully disconnect the Resistance and Heart Rate

Cables.

6. 8VLQJDPPKH[NH\UHPRYHWKHKDUGZDUHIURPWKH

bracket arms at the front of the Seat Frame. Using a 6mm

KH[NH\UHPRYHWKHKDUGZDUHIURPWKHEDFNRIWKH6HDW

Frame. Remove the Seat Frame Assembly. Set the hardware

and Seat Frame Assembly safely aside.

NOTICE: Do not crimp any cables.This step may require

two people.

7. Using a #2 Phillips screwdriver, loosen and remove the

screw that secures the front Seat Rail End Cap. Bend the

edges of the rear Seat Rail End Cap to disengage the inside

tabs from the Main Assembly, and remove. Set the hardware

and Caps safely aside for reassembly.

8. Using a #2 Phillips screwdriver, remove the screws

(indicated) that secure the Left Rear Shroud. Remove the

ERWWRPVFUHZV¿UVWDQGWKHQWKHWRSVFUHZV6ORZO\UHPRYH

the Left Shroud. Set the hardware and Left Shroud safely

aside for reassembly.

4mm

6mm
