Nautilus R614 Service Manual

50

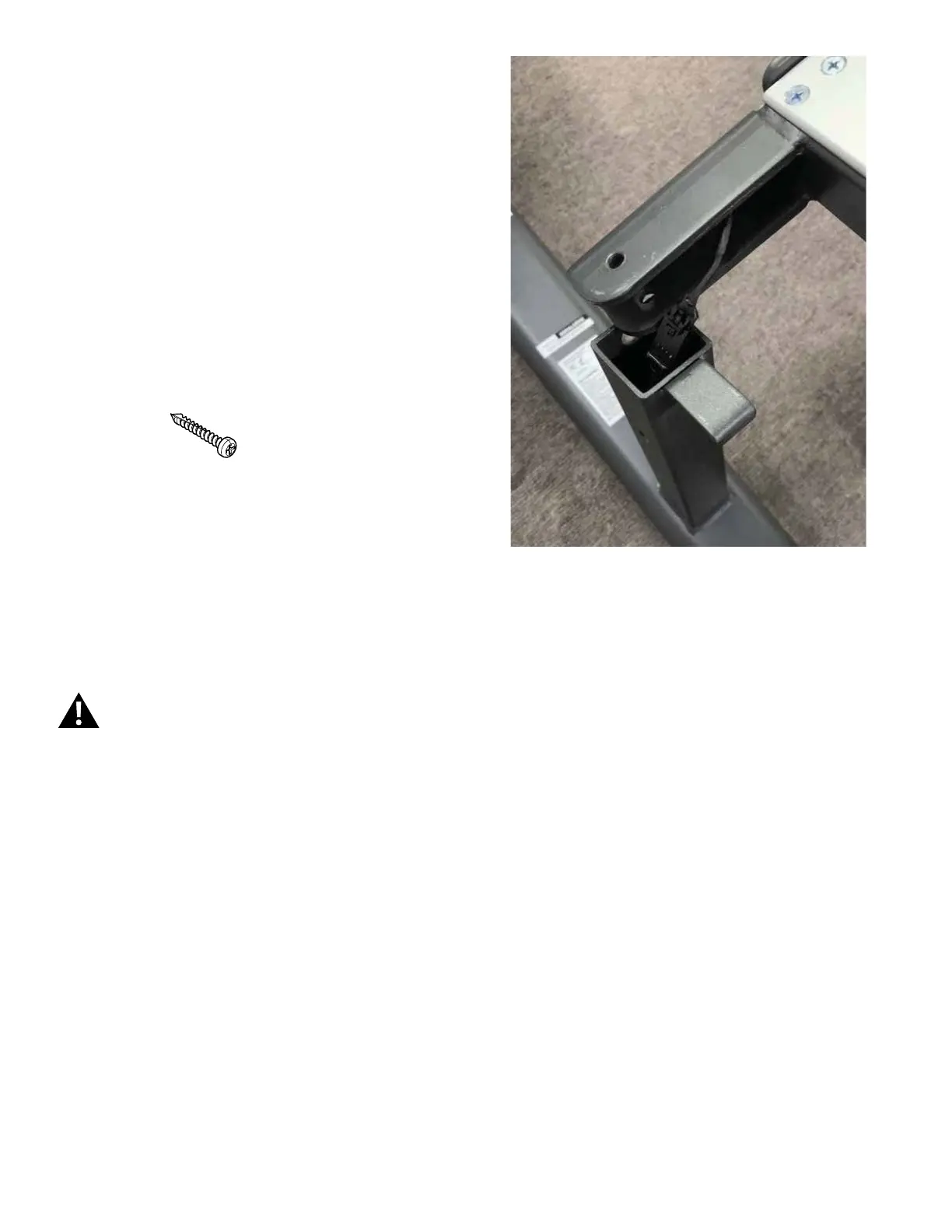

12. Disconnect the HR and Resistance cables in the Seat
Rail Assembly and the Frame. Carefully remove the Seat
Rail Assembly from the Frame and set it safely aside.
NOTICE: Do not crimp any cables.This step may require
two people.
13. Installation is the reverse procedure.
NOTICE: Be sure not to crimp any cables.Hand tighten
DOOKDUGZDUH¿UVWWKHQIXOO\WLJKWHQLW
3XWWKH/HIW6KURXGLQSRVLWLRQ¿UVWWRDOLJQWKHVFUHZVIRUWKH
5LJKW6KURXG,QVWDOOWKHWRSVFUHZV¿UVW
Note: Self-tapping screws attach the Shrouds to the
Frame.
NOTICE: Be sure the tabs in the Top Shroud snap into
the Main Assembly.
 +DQGWLJKWHQDOOKDUGZDUH¿UVWWKHQIXOO\WLJKWHQ
it. Be sure the cables are tucked inside the Seat
Cover.
14. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct
SHUIRUPDQFHLQDFFRUGDQFHZLWKWKH2ZQHU¶V
Manual.
