52
NOTICE: It is necessary to remove the Shrouds for this procedure. Refer to the “Replace the Shrouds” procedure.
It may be necessary to adjust the Brake tension at the end of this procedure. Refer to the “Set the Brake Tension” procedure.
Note: Your machine may not match the image. For reference only.

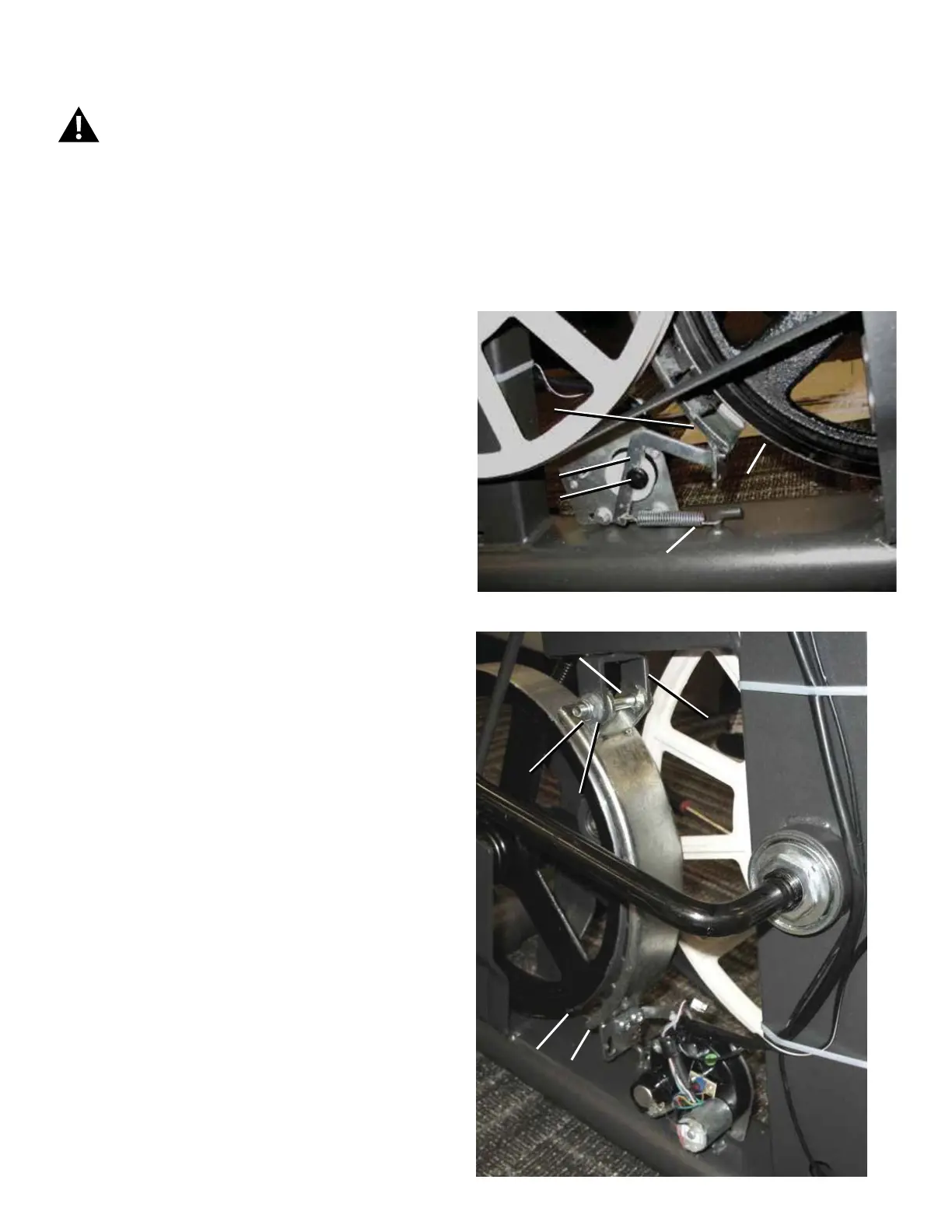

1. Carefully remove the Shrouds. Refer to the “Replace the Shrouds”
procedure.
2. Insert 2.5” x 10” cardboard between the Brake Magnet (A) and the
Flywheel (B), and tape the cardboard to the Brake Magnet.
Note: Be sure the cardboard covers all of the Brake Magnet.
3. Use the pliers to unhook the Tension Spring (C) from the Main
Frame. Pull back and release the Magnet Arm (D) enough to disengage
it from the Motor Pulley Shaft (E).
4. Loosen and remove the hex head bolt (F), nut (G) and washer (H)
that attach the Brake Assembly (A) to the Main Frame bracket (J).
NOTICE: Hold the Brake Assembly so that it does not fall.
Do not crimp the cables
5. Remove the Brake Assembly (A). Remove the cardboard. Discard
the old Brake Assembly.
Disconnect all power to the machine before you service it.
C
$
B
D
E
G
B
H
$
)
J
To Next Page
