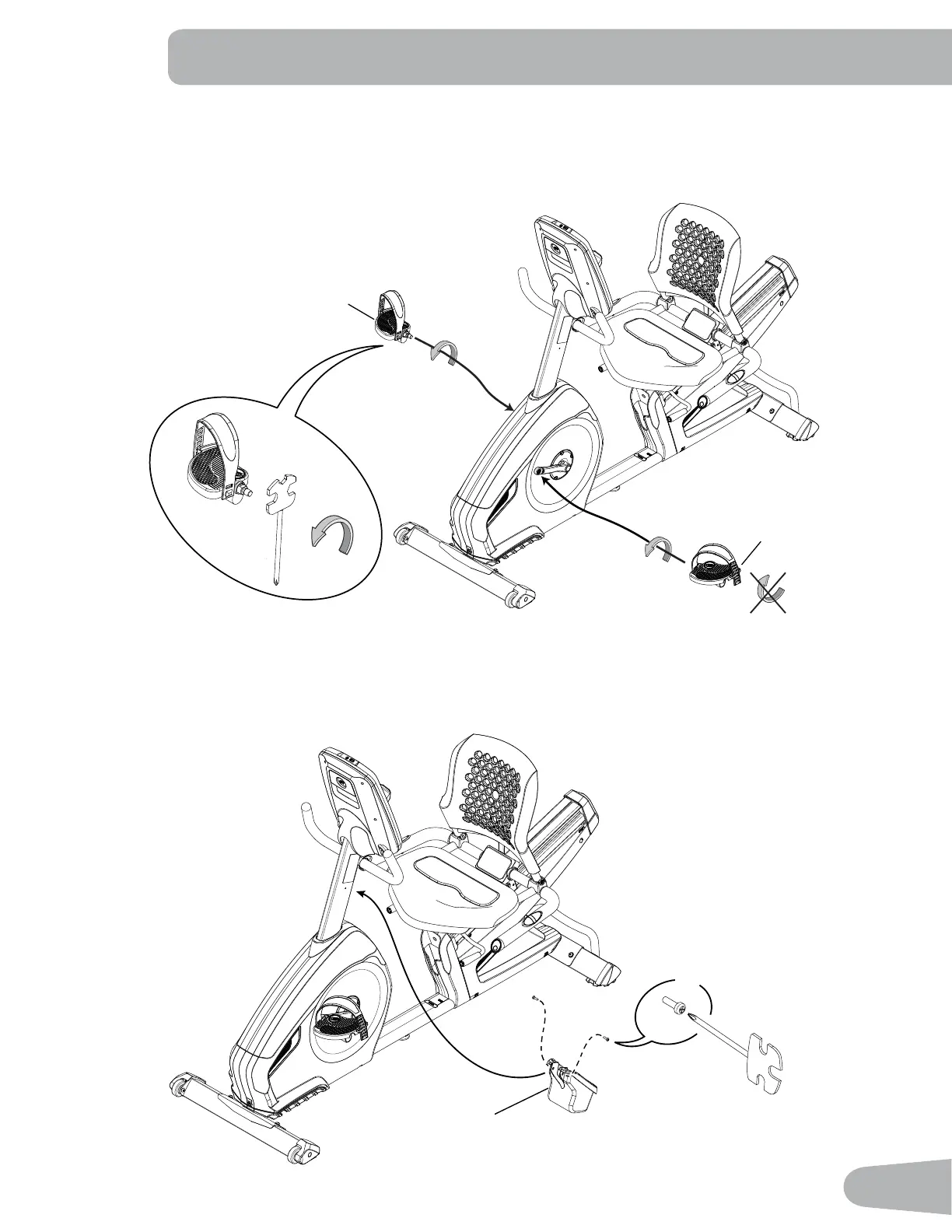

10. Attach Pedals to Frame Assembly
NOTICE: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation
is based from a seated position on the bike. The Left Pedal has an “L”, the Right Pedal an “R”.
16 (R)
13 (L)
11. Attach Water Bottle Holder to Console Mast
Note:+DUGZDUHLVSUHLQVWDOOHGRQWKH&RQVROH0DVWDQGQRWRQWKH+DUGZDUH&DUG
17
*
X2
#2
