Nautilus R618 Assembly Manual

7

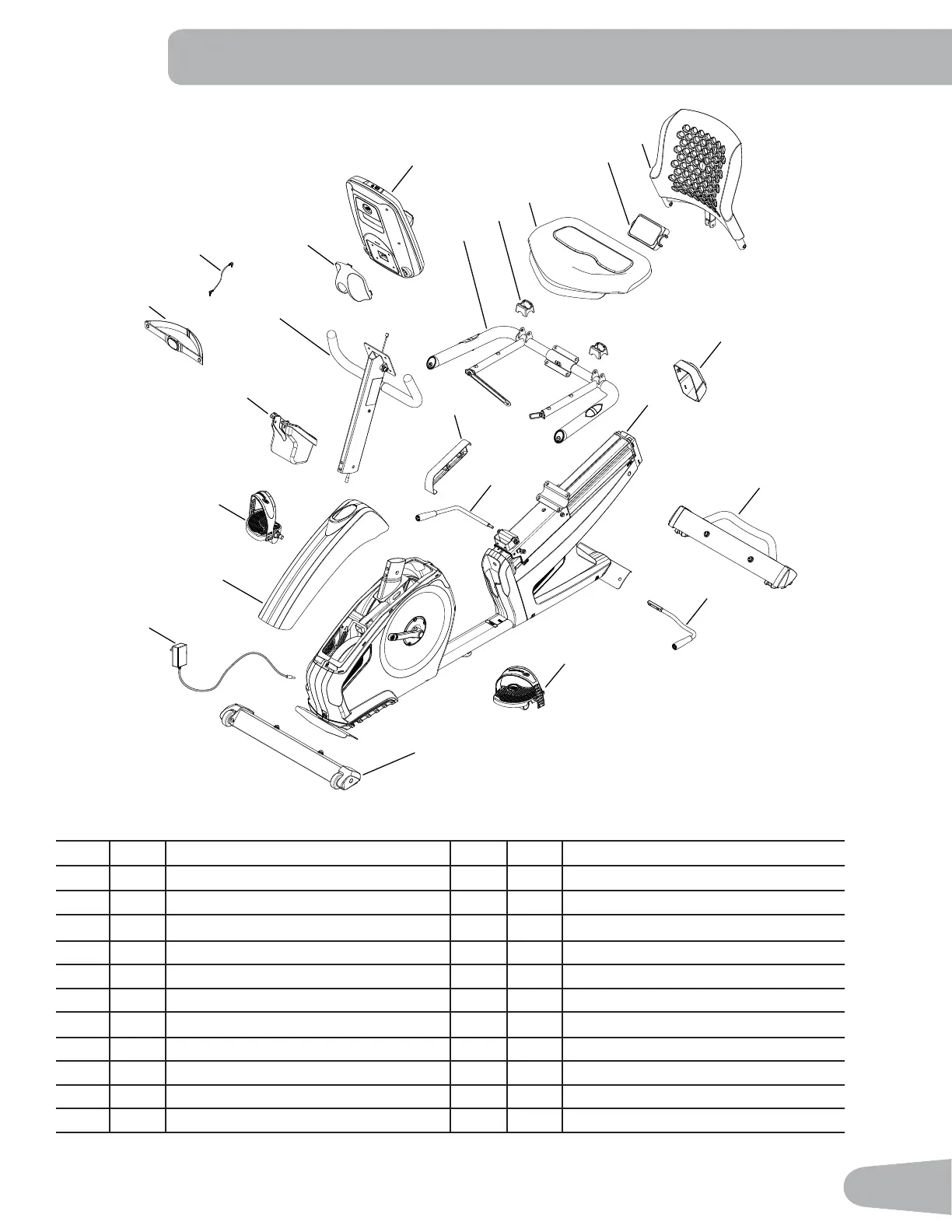

Item Qty Description Item Qty Description
1 1 Console 12 1 Seat Adjustment Handle
2 1 Seat Frame Assembly 13 1 Left Pedal
3 2 Seat Pivot Shroud 14 1 Front Stabilizer
4 1 Seat Bottom 15 1 Top Shroud
5 1 Top Cap  1 Right Pedal
 1 Seat Back 17 1 Water Bottle Holder
7 1 Seat Rail End Cap 18 1 Console Mast
8 1 Frame 19 1 Console Pivot Shroud
9 1 Seat Recline Handle 20 1 AC Adapter
10 1 Shock Shroud 21 1 MP3 Cord
11 1 Rear Stabilizer 22 1 Heart Rate Chest Strap
PARTS
20
1
21
2
4
5
7
3
6
8
9
10
11
12
13 (L)
14
16 (R)
15
18
17
19
22

Nautilus R618 Specifications

General

Resistance Levels	25
Bluetooth Connectivity	Yes
Workout Programs	29
Resistance Type	Magnetic
Display	LCD
Heart Rate Monitoring	Contact
Warranty	10 year frame, 1 year labor
