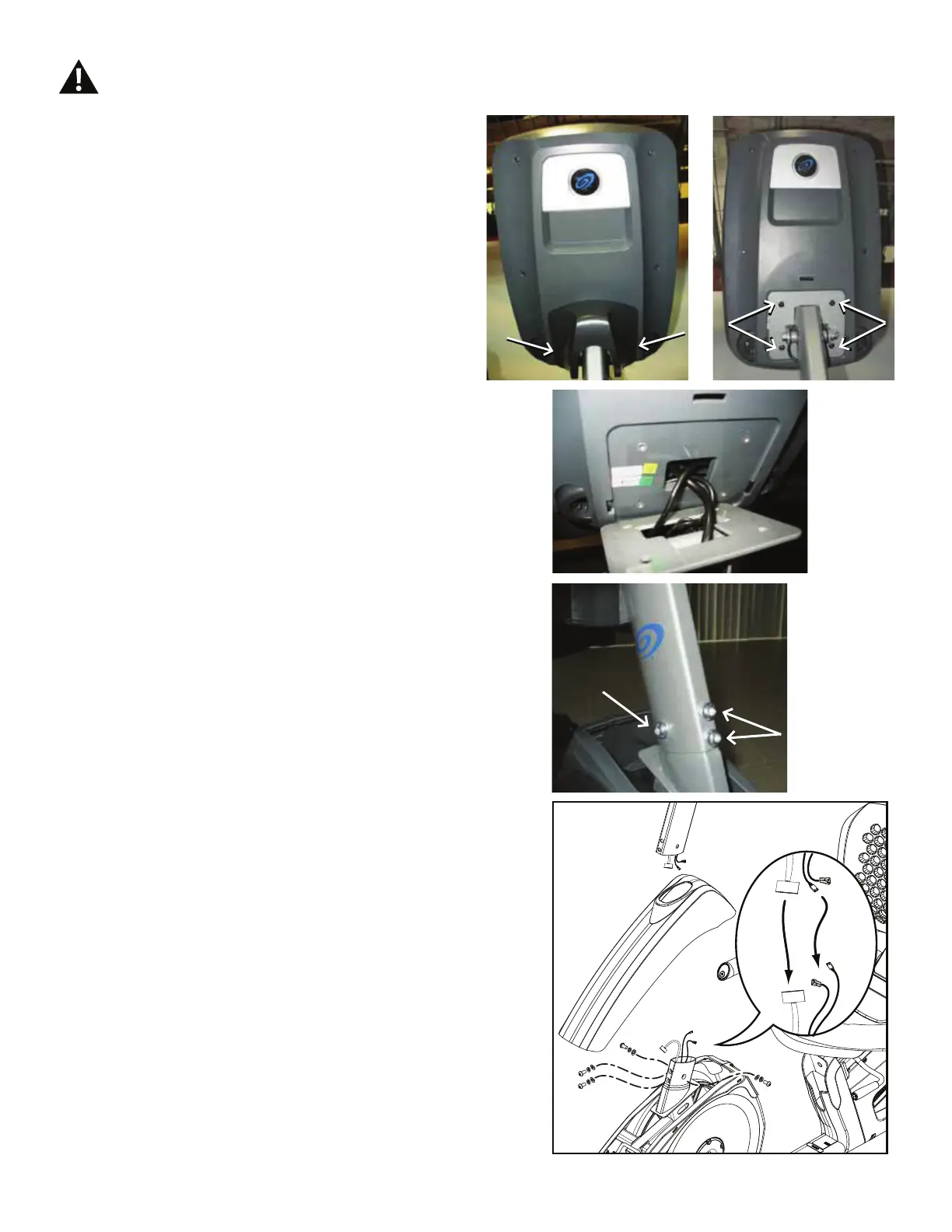

1. Remove screws that attach Console to the Mast.
&DUHIXOO\OLIWWKH&RQVROHRႇWKH0DVW
2. Disconnect the Data Cable, Heart Rate (HR) Cable and
Resistance Cable from the back of the Console. Set the
Console and screws safely aside for reassembly.
Note: Do not let the cables fall down inside the Mast or
Frame.
3. Bend the edges of the Top Shroud to disengage the
inside tabs from the Main Assembly, and slide the Top
Shroud up the Mast.
4. Remove the hardware (indicated) from the Mast.
Gently pull the Mast out and disconnect the cables. Set the
hardware safely aside for reassembly.
NOTICE: Do not crimp the cables. This step may require
two people.
Disconnect all power to the machine before you service it.
X2
To Next Page
