Nautilus R618 User Manual

39
A
B
C

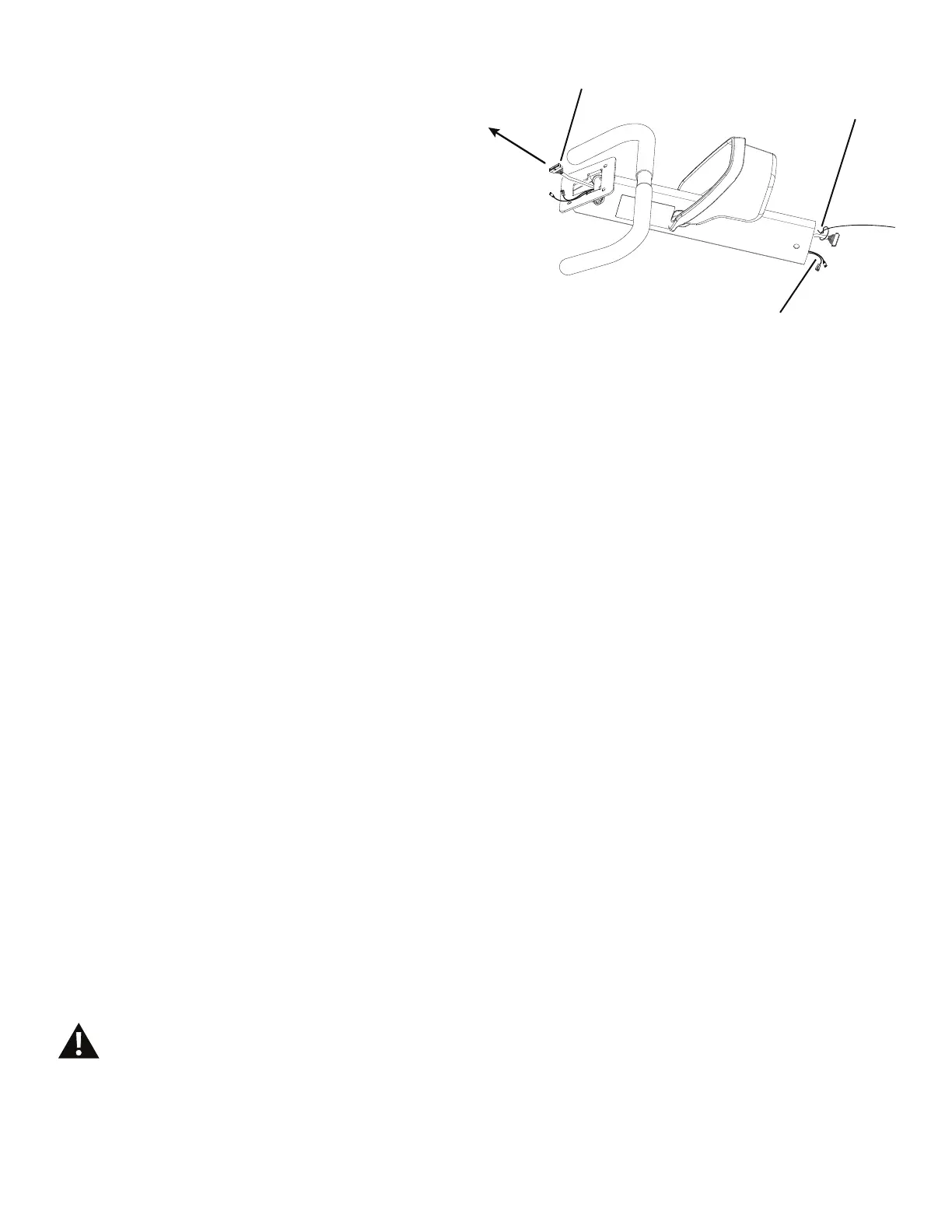

5. Tie the length of string to the end (A) of the Data Cable
at the base of the Mast. Hold the other end of the Data Cable
(B) and carefully pull it out of the Mast so that the string
H[WHQGVWKURXJKWKHOHQJWKRIWKH0DVW8QWLHWKHVWULQJIURP
the old Data Cable and discard the old cable.
NOTICE: Hold the HR/Resistance Cable Assembly (C)
so that you do not pull it out of the Mast. Do not
crimp the HR/Resistance cables.
6. Tie the end of the string at the base of the Mast to one
end of the replacement Data Cable. Hold the other end of
the string and carefully pull the new Data Cable through the
Mast.
NOTICE: Hold the HR/Resistance Cable Assembly (C)
so that you do not pull it out of the Mast. Do not
crimp the cables.
7. Untie the string from the Data Cable. With the Mast
through the opening in the Top Shroud, connect the cables in
the Mast to the cables from the Main Frame.
. NOTICE: Do not crimp the cables. This step may require
two people.
8. Put the Mast (with the Top Shroud) back in position in the
Main Frame and reinstall the Hardware.
Note: Do not let the cables fall down inside the Mast.
NOTICE: Be sure not to crimp any cables. This step may
require two people.
9. Slide the Top Shroud back into position.
NOTICE: Be sure the tabs in the Top Shroud snap into
the Main Assembly.
10. Connect the cables to the back of the Console and
attach the Console to the Mast with the screws from Step 2.
NOTICE: Do not crimp the cables.
11. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct
SHUIRUPDQFHLQDFFRUGDQFHZLWKWKH2ZQHU¶V
Manual.

Nautilus R618 Specifications

General

Resistance Levels	25
Bluetooth Connectivity	Yes
Workout Programs	29
Resistance Type	Magnetic
Display	LCD
Heart Rate Monitoring	Contact
Warranty	10 year frame, 1 year labor
