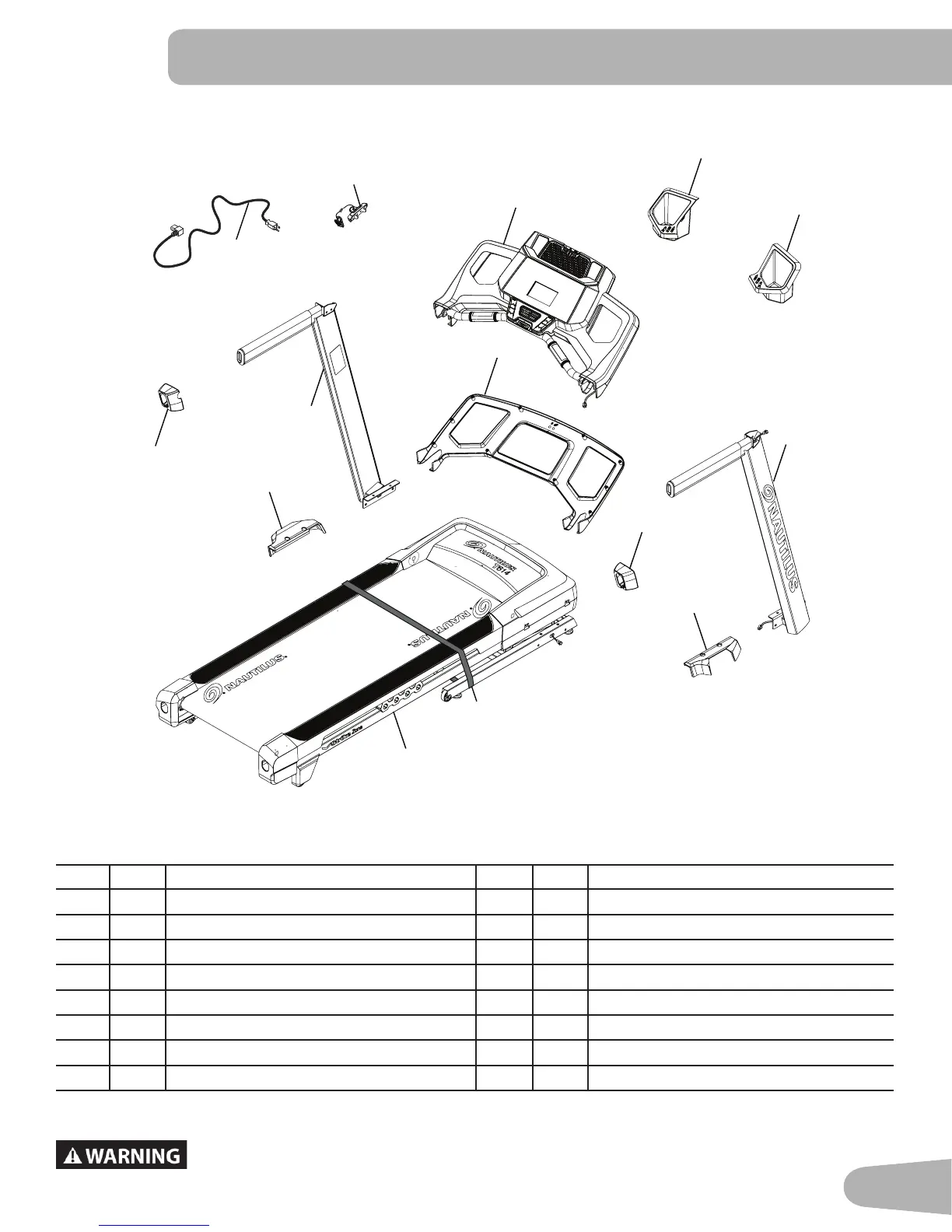

PARTS
Item Qty Description Item Qty Description
1 1 Console Assembly
9 1 Base Shroud, Left
2 1 Console Backing
10 1 Upright, Left
3 1 Tray, Left
11 1 Handlebar Shroud, Left
4 1 Tray, Right
12 1 Power Cord
5 1 Upright, Right
13 1 Safety Key
6 1 Handlebar Shroud, Right
14 1
Media Cable (not shown)
7 1 Base Shroud, Right
15
1
Silicone Lubricant, Bottle (not shown)
8 1
Base Assembly ( * )
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as shown in
the appropriate work space ( * ).
1
3
4
5
6
7
12
9
8
11
10
2
13
*
