Nautilus U616 - Maintenance Parts

33

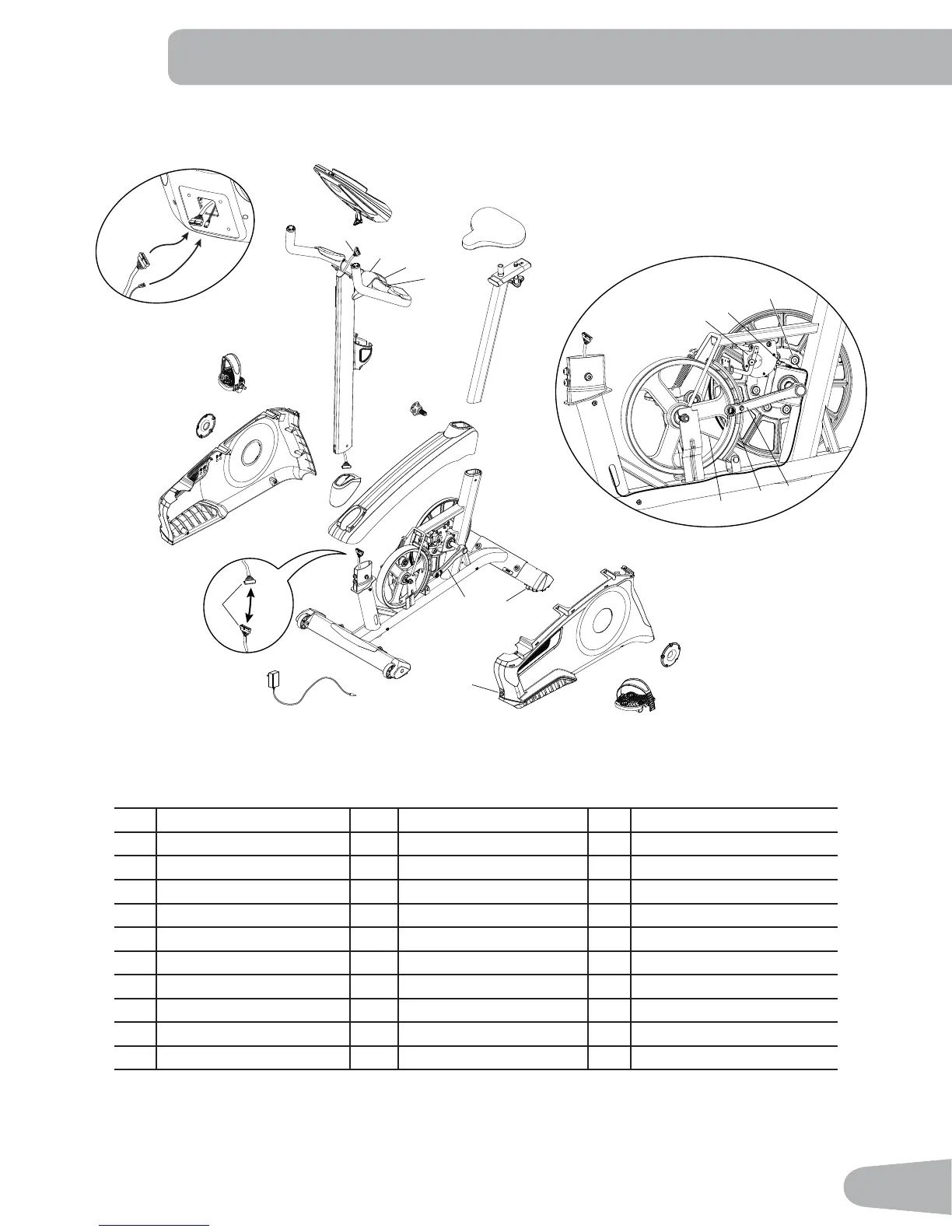

Maintenance Parts
J
J
A
L
A
B
C
C
D
E
F
G
H
I
K
M
N
O
P
Q
R
S
T
U
V
DD
EE
FF
FF
J
W
D
BB
Y
J
X
AA
CC
Z
A Console L HR Cable W Flywheel
B Console Mast M CHR Sensors X Brake Assembly
C Pedals N Seat Y RPM Sensor
D Crank Arms O Seat Post w/ Slider Z Speed Sensor Magnet (8)
E Left Shroud P Adjustment Knob AA Servo Motor
F Power Inlet Q AC Adapter BB Drive Belt
G Right Shroud R Water Bottle Holder CC Drive Pulley
H Top Shroud S Rear Stabilizer DD Handlebar Mount Cover
I Mast Gasket T Levelers EE Thandle
J Data Cable U Front Stabilizer FF Cover, Crank Disc
K Handlebars 9 Transport Wheels
