Nautilus U616 - Parts

7

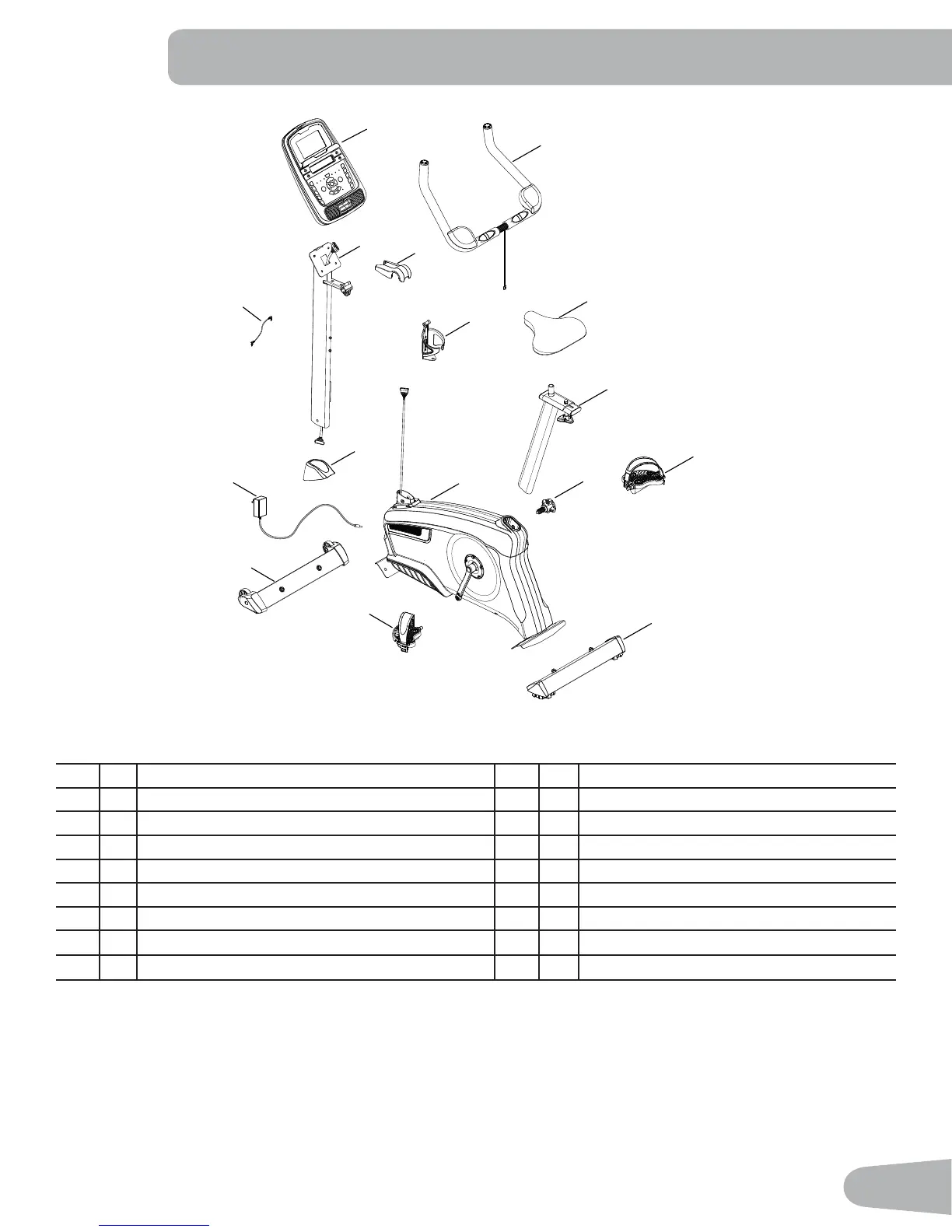

PARTS
12 (L)
13 (R)
11
7
1
2
4
8
6
5
14
3
9
15
10
16
Item Qty Description Item Qty Description
1 1 Main Frame 9 1 Seat Post
2 1 Front Stabilizer 10 1 Adjustment Knob
3 1 Rear Stabilizer 11 1 Seat
4 1 Mast Boot 12 1 Left Pedal (L)
5 1 Console Mast (with Handlebar Mount) 13 1 Right Pedal (R)
 1 Handlebar Mount Cover 14 1 Water Bottle Holder
7 1 Handlebars 15 1 AC Adapter
8 1 Console 1 1 Media Cable
