Nautilus U616 User Manual

9

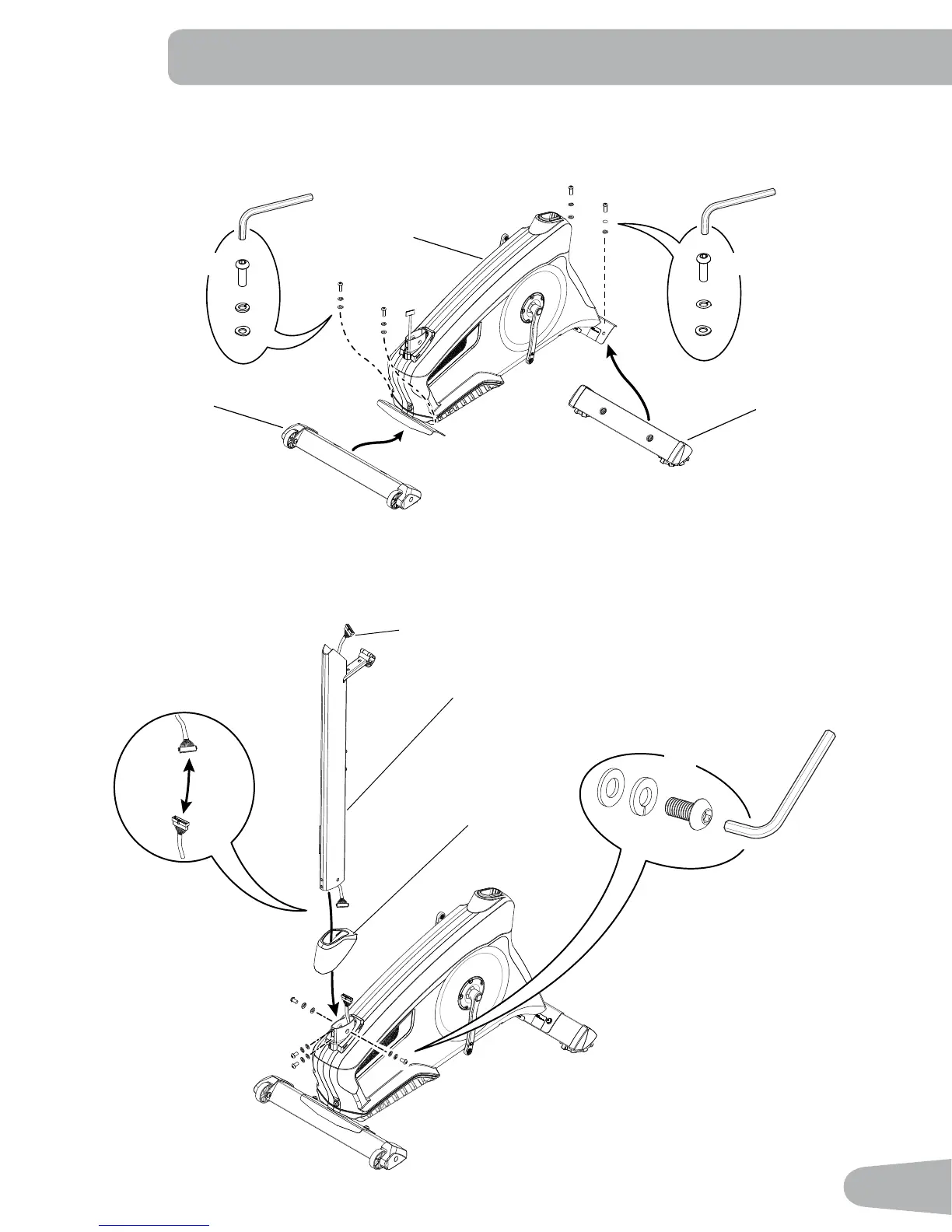

ASSEMBLY
1. Attach Stabilizers to Main Frame
Note: Hardware() is preinstalled on the stabilizers and not on Hardware Card. Make sure transport wheels on the front
stabilizer point forward.
2. Install Console Mast and Mast Boot on Main Assembly
NOTICE: Make sure the Console Cable connector (a) does not fall into the Console Mast. Align the clips on the cable
connectors and make sure the connectors lock. Do not crimp Console Cable.
X2
6 mm
*
*
*
2
X2
6 mm
*
*
*
3
1
A
6 mm
C
B
X4
a
4
5

Nautilus U616 Specifications

General

Type	Upright Exercise Bike
Resistance Levels	25
Display	LCD
Programs	29
Bluetooth Connectivity	Yes
User Profiles	4
Speakers	Yes
Resistance Type	Magnetic
Seat Type	Padded
Transport Wheels	Yes
Heart Rate Monitoring	Contact and Telemetry Enabled
Maximum User Weight	300 lbs
Seat Adjustability	Vertical
Pedals	Standard
