Nautilus U616 - Assembly Instructions Part 2; Install Handlebars on Console Mast

10

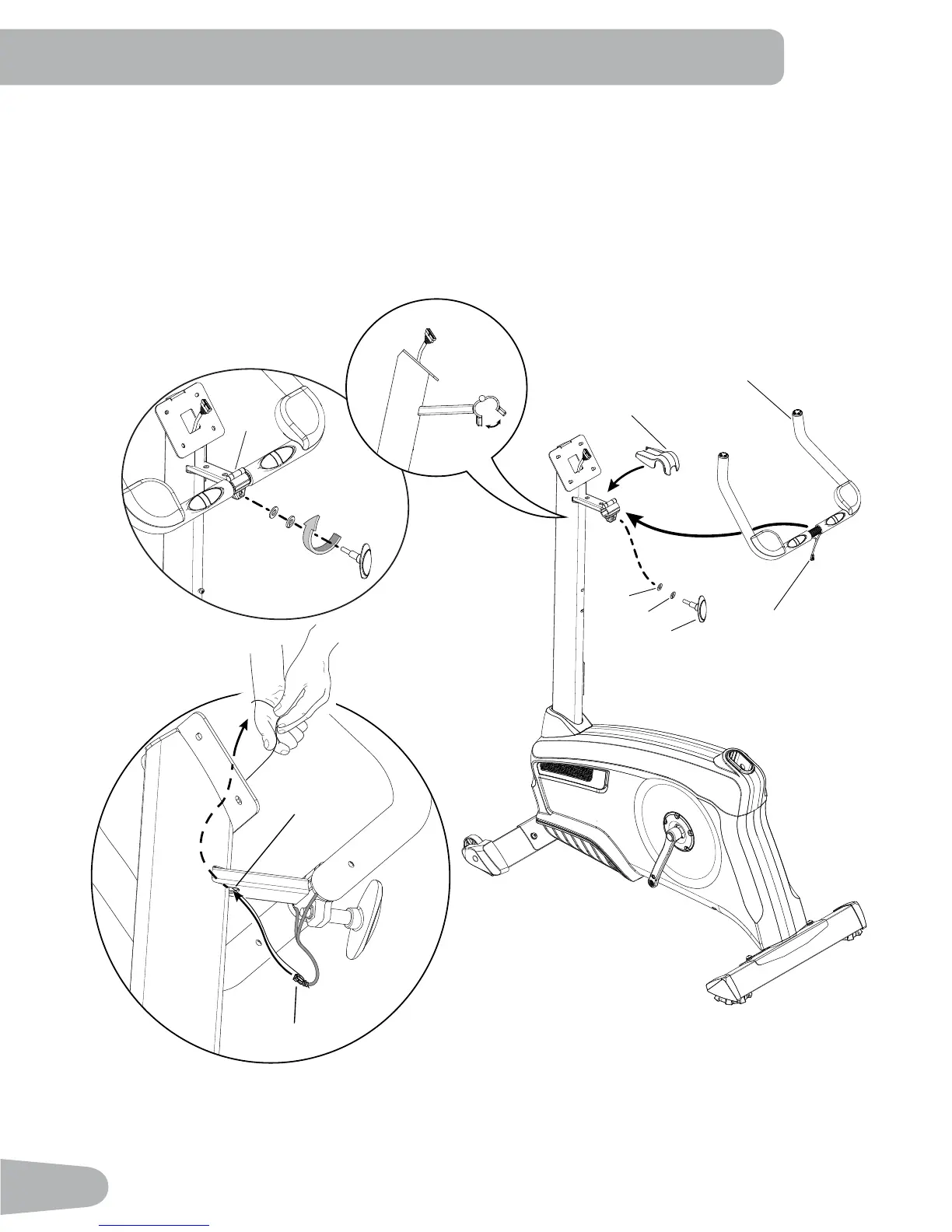

3. Install Handlebars on Console Mast
NOTICE: Do not crimp the cables. Put the Handlebar (7) in the bracket (5a), adjust the Handlebar to the desired angle,
and install the Thandle (D) through the holes. Use the pull cable in the Handlebar Mount to route the HR cable
(7a) through the slot (5b) under the Handlebar Mount to the top of the mast. Fully tighten the Thandle to keep
the Handlebar in position. Push the cover () into position on the Handlebar Mount.
5a
D
E
B
7
D
E
B
7a
7
6
5a
D
7a
7
5b
