SECTION1–ENGINESYSTEMS

COMPONENTLOCATION-FRONT

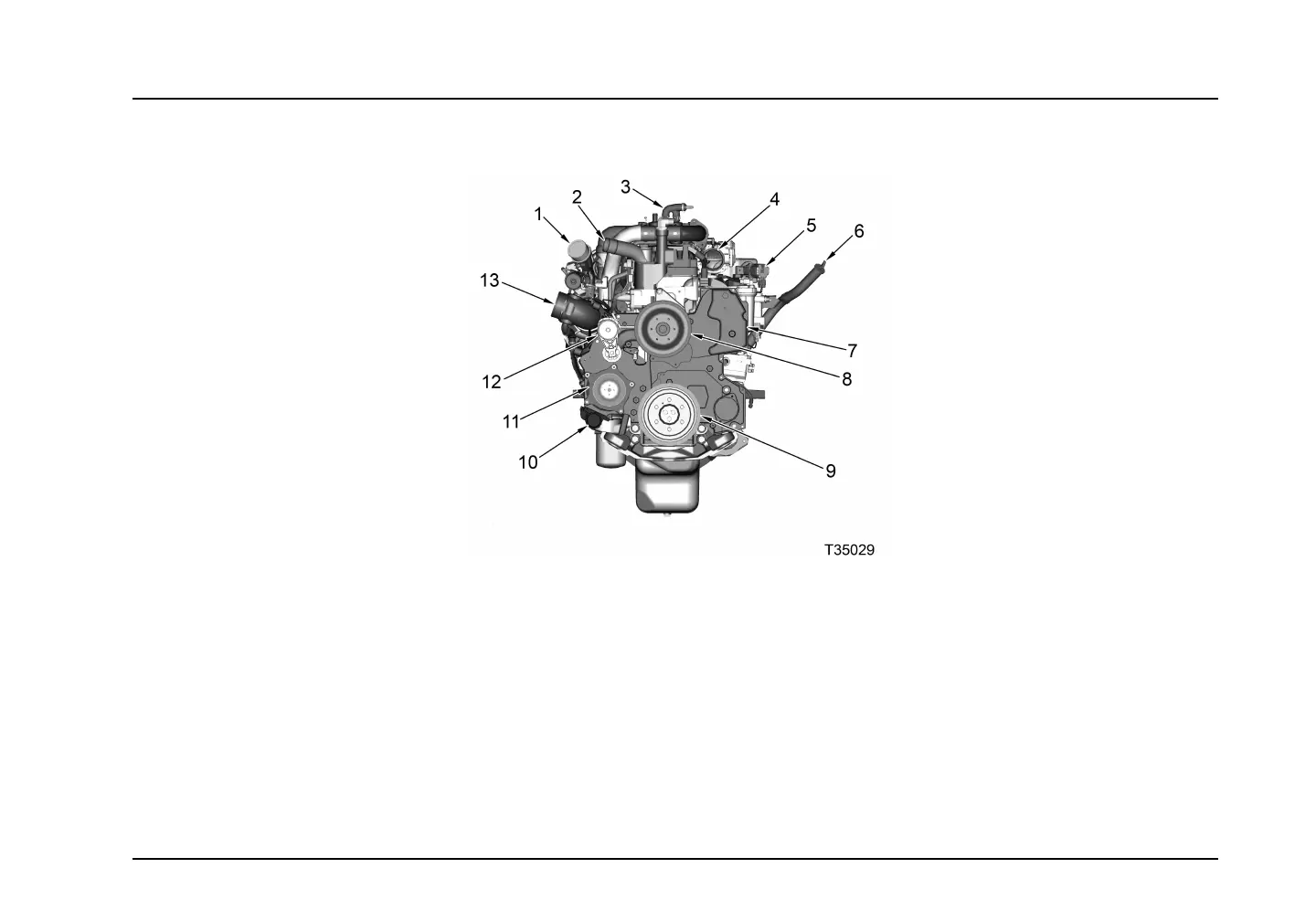

Figure4Front

1.High-pressureturbooutlet

2.Wateroutlettubeassembly

3.Deaerationhoseelbow

4.AirandExhaustGasRecirculation(EGR)

mixerduct

5.EGRvalve

6.Oillevelgauge

7.Frontcover

8.Fandrivepulley

9.Vibrationdamperassembly

10.Waterinletelbow

11.Waterpumppulley

12.Autobelttensioner

13.Turbochargerairinletduct

Page25
