SECTION 1 – ENGINE SYSTEMS
Engine Component Locations (cont.)

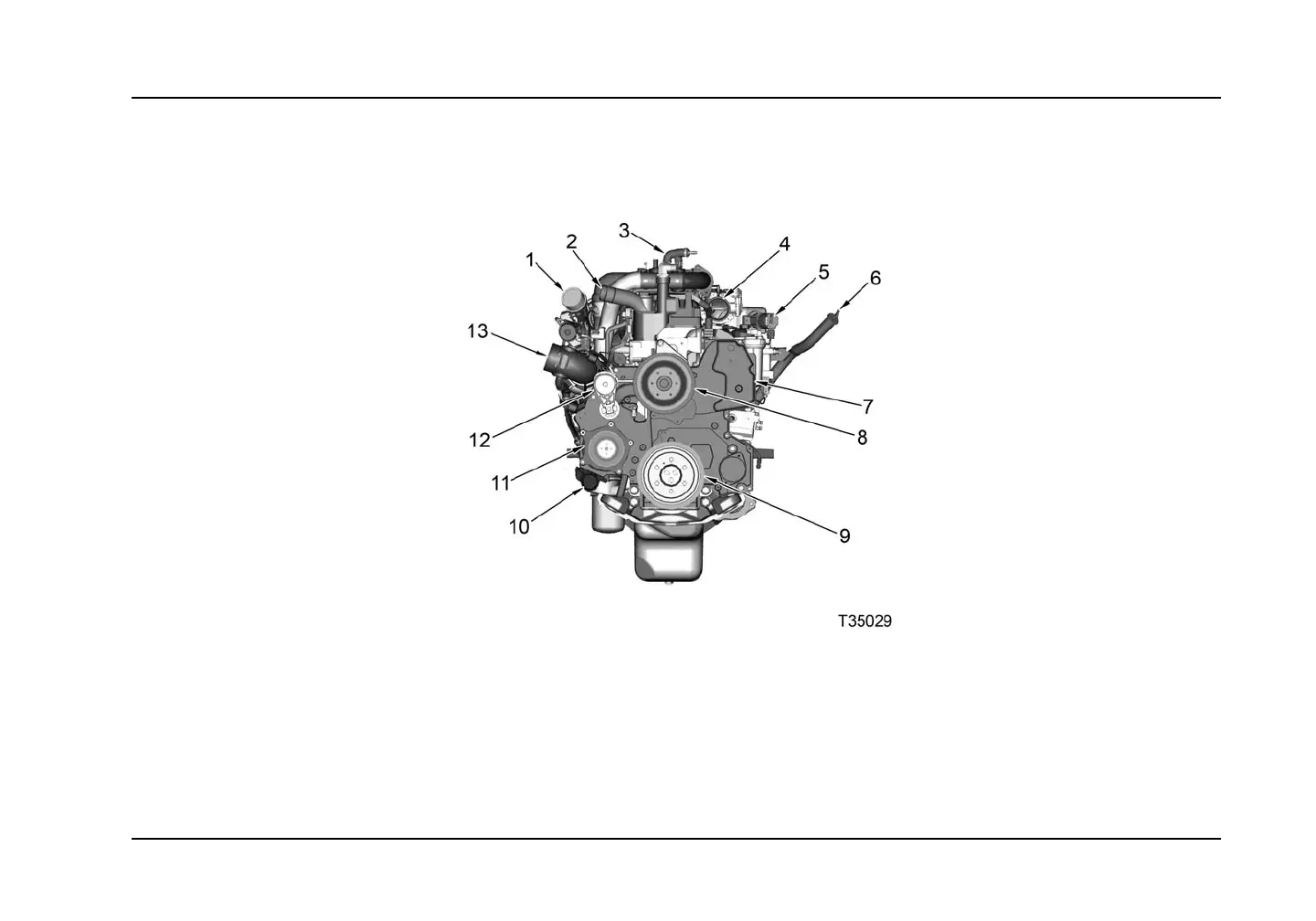

COMPONENT LOCATION - FRONT
Figure 4 Front
1. H igh-pressure turbo outlet
2. Water outlet tube assembly
3. Deaeration hose el bow
4. Air and Exha ust Gas Recircula tion (EGR)
mixer duct
5. EGR valve
6. Oil level gauge
7. Front cover
8. Fan drive pulley
9. Vibration damper assembly
10. Water inlet elb ow
11. Water pump pulley
12. Auto belt tensioner
13. Turbocharger air inlet duct
Form No. 1172040R1
Printed in the United States of America Page 25
